Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: IOS,API
Model Number: 4 1/2"-20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: nude or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Application: |
Oilfield Cementing |
Dimension(L*W*H): |
12CMX0.5X0.8 |
Product Name: |
Cementing/cement Plug |
Material: |
Rubber |
Condition: |
New |
Connection: |
Threaded |
Certificate: |
ISO9001 |
Color: |
Customized |
Connection Type: |
Threaded, Flanged, Welded |
Payment Term: |
T/T, L/C, Western Union |
Port Of Loading: |
Qingdao, Shanghai, Tianjin, Etc. |
Product Name: |
Oilfield Cementing Tools |
Size: |
Customized |
Surface Treatment: |
Sandblasting, Painting, Galvanizing |
Application: |
Oilfield Cementing |
Dimension(L*W*H): |
12CMX0.5X0.8 |
Product Name: |
Cementing/cement Plug |
Material: |
Rubber |
Condition: |
New |
Connection: |
Threaded |
Certificate: |
ISO9001 |
Color: |
Customized |
Connection Type: |
Threaded, Flanged, Welded |
Payment Term: |
T/T, L/C, Western Union |
Port Of Loading: |
Qingdao, Shanghai, Tianjin, Etc. |
Product Name: |
Oilfield Cementing Tools |
Size: |
Customized |
Surface Treatment: |
Sandblasting, Painting, Galvanizing |

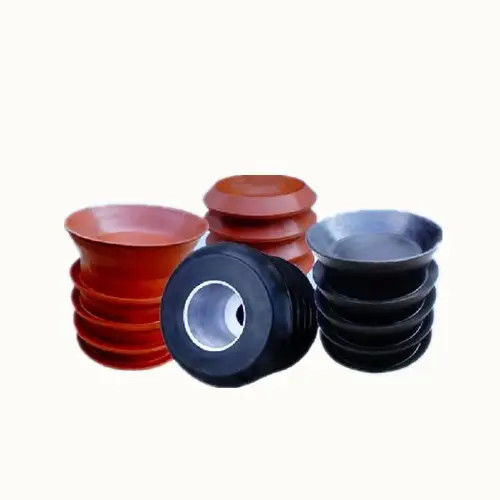

Cementing Plug
Production description of OIl drilling rig equipment tools Cementing plugs
Generally, Top plug and bottom plug are matched to use. Before cementing, put into bottom plug firstly, scrape and clean the wall of hole by pump. After pump plug, increase the pressure to 2~4 MPa,hold and broken the rubber film, circulation is established.
And then,start to inject the cement, put into top plug, pumping, increase the pressure, finished cementing.
The Top Rubber plug has a core of epoxy coated sand compressed into a solid mass, which allows the plug to withstand shock when pumped to touchdown, while also retaining its ability to be drilled out. The core is completely encased in rubber and has a solid base to prevent separation.
The Bottom Rubber Plug has a core of cast aluminum that is PDC drillable. After the plug has completed its wiping of the casing ahead of the cement slurry and seated at touchdown, additional pump pressure will rupture the rubber diaphragm at the top of the core, allowing slurry to continue to its destination.
Technical Data of Cementing Plug:
| Casing size(in) | casing weight range | Wiper Fin O.D | ||
| mm | in | mm | in | |
| 4 1/2" | 14.14-17.26 | 9.50-11.60 | 110 | 4.331 |
| 5" | 17.11-35.86 | 11.50-24.10 | 122 | 4.803 |
| 5 1/2" | 20.83-39.88 | 14.00-26.80 | 135 | 5.315 |
| 7" | 25.30-56.55 | 17.00-38.00 | 170 | 6.693 |
| 7 5/8" | 35.72-63.69 | 24.00-42.00 | 185 | 7.283 |
| 9 5/8" | 53.57-79.62 | 36.00-53.50 | 235 | 9.252 |
| 10 3/4" | 60.27-97.77 | 40.50-65.70 | 260 | 10.236 |
| 13 3/8" | 71.43-107.15 | 48.00-72.00 | 333 | 13.110 |
| 20" | 139.89-197.93 | 94.00-133.00 | 498 | 19.606 |
Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.
We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
