Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: IOS,API
Model Number: 4 1/2"-20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: nude or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Product Name: |
Cementing/cement Plug |
Material: |
Rubber |
Condition: |
New |
Packaging: |
Standard Export Packaging |
Color: |
Customized |
Application: |
Oilfield Cementing |
Connection Type: |
Threaded |
Pressure Rating: |
High |
Product Name: |
Oilfield Cementing Tools |
Temperature Rating: |
High |
Warranty: |
1 Year |
Product Name: |
Cementing/cement Plug |
Material: |
Rubber |
Condition: |
New |
Packaging: |
Standard Export Packaging |
Color: |
Customized |
Application: |
Oilfield Cementing |
Connection Type: |
Threaded |
Pressure Rating: |
High |
Product Name: |
Oilfield Cementing Tools |
Temperature Rating: |
High |
Warranty: |
1 Year |
Cementing Plug
Our specialization is in offering API oilfield drilling cementing tools, with a specific emphasis on cement plugs designed for both top and bottom applications. These cement plugs play a vital role in the cementing process by effectively isolating cement slurry from other fluids. This ensures the consistent and dependable performance of the slurry while preventing any contamination. We provide two widely utilized types of cement plugs that are extensively employed in cementing operations.
Cementing Plugs: Our cementing plugs consist of graded rubber fused onto a composite or aluminum core. These plugs are designed to meet a wide range of needs in cementing operations. They are fully PDC (Polycrystalline Diamond Compact) drillable, making them easy to remove after the cementing process.

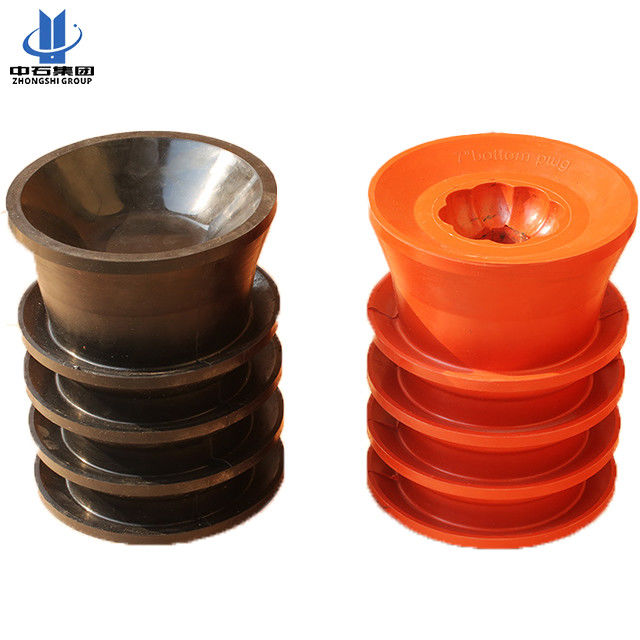

Top Plugs: The top plug is used when a dual-plug system is not required. It applies continuous pressure on the casing wall to ensure a secure seal. The core of the top plug is made from materials such as plastic, aluminum, or phenolic, depending on the specific application and well conditions. The tapered base of the plug fits tightly into the cavity of the bottom plug, creating a positive seal. Additionally, a solid rubber top plug option is also available.
Bottom Plugs: Similar to the top plug, the bottom plug is equipped with fins and a tail section that provide effective wiping action and act as a seal during the cementing process. The core of the bottom plug is also made from special materials like plastic, aluminum, or phenolic, depending on the specific application and well conditions. At the top of the plug, there is a rubber diaphragm that ruptures after the plug is seated, allowing cement to flow through.
Our cementing plugs come in sizes ranging from 4 1/2" to 20", and we can accommodate special sizes upon request. When using an aluminum core, they can operate in temperatures of up to 200 degrees Fahrenheit. For higher operating temperatures or operations involving synthetic or mud fluids, we offer custom ordering options to meet your specific requirements.
Technical Data of Cementing Plug:
| Casing size(in) | casing weight range | Wiper Fin O.D | ||
| mm | in | mm | in | |
| 4 1/2" | 14.14-17.26 | 9.50-11.60 | 110 | 4.331 |
| 5" | 17.11-35.86 | 11.50-24.10 | 122 | 4.803 |
| 5 1/2" | 20.83-39.88 | 14.00-26.80 | 135 | 5.315 |
| 7" | 25.30-56.55 | 17.00-38.00 | 170 | 6.693 |
| 7 5/8" | 35.72-63.69 | 24.00-42.00 | 185 | 7.283 |
| 9 5/8" | 53.57-79.62 | 36.00-53.50 | 235 | 9.252 |
| 10 3/4" | 60.27-97.77 | 40.50-65.70 | 260 | 10.236 |
| 13 3/8" | 71.43-107.15 | 48.00-72.00 | 333 | 13.110 |
| 20" | 139.89-197.93 | 94.00-133.00 | 498 | 19.606 |
Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.
We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
