Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: IOS,API
Model Number: 4 1/2"-20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: nude or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Product Name: |
Cementing/cement Plug |
Material: |
Carbon Steel, Alloy Steel, Stainless Steel |
Condition: |
New |
Packaging: |
Standard Export Packaging |
Color: |
Customized |
Application: |
Oilfield Cementing |
Connection Type: |
Threaded |
MOQ: |
1 Piece |
Package: |
Wooden Case, Carton, Pallet |
Payment Term: |
T/T, L/C, Western Union, Paypal |
Size: |
Customized |
Product Name: |
Cementing/cement Plug |
Material: |
Carbon Steel, Alloy Steel, Stainless Steel |
Condition: |
New |
Packaging: |
Standard Export Packaging |
Color: |
Customized |
Application: |
Oilfield Cementing |
Connection Type: |
Threaded |
MOQ: |
1 Piece |
Package: |
Wooden Case, Carton, Pallet |
Payment Term: |
T/T, L/C, Western Union, Paypal |
Size: |
Customized |

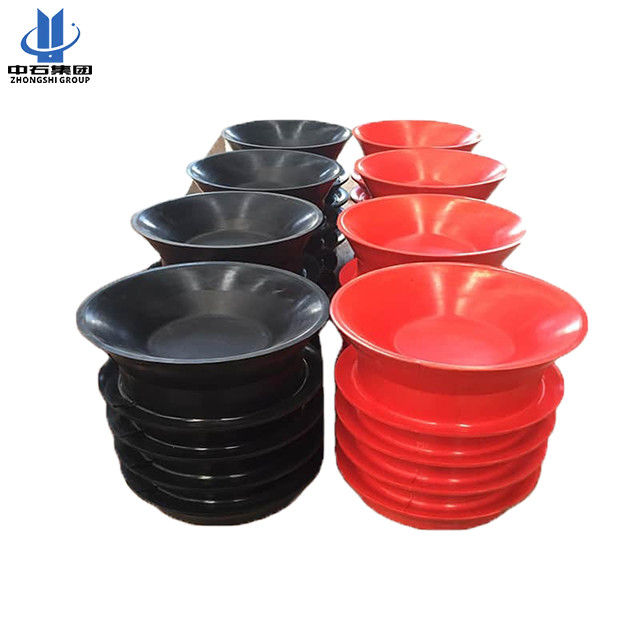

Cementing Plug
Our company specializes in supplying API oilfield drilling cementing tools, with a specific focus on cement plugs for both top and bottom applications. These cement plugs are crucial components in the cementing process as they effectively isolate the cement slurry from other fluids, ensuring consistent and dependable performance while preventing any form of contamination. We offer a diverse range of cement plugs that are widely utilized in various cementing operations.
Our series of cementing plugs are equipped with reinforced locking teeth built into the plugs. These teeth lock together between the plugs and the float equipment, eliminating any rotation of the plug during drill out. The plugs are primarily made of graded rubber with an aluminum or phenolic core inside. These plugs do not contain any other metal parts, ensuring their compatibility and ease of drillability. They can be used in PDC drilling applications.
The operating range of temperature for the plugs with an aluminum core is up to 200 degrees Fahrenheit. However, we also offer options for higher operating temperatures and compatibility with synthetic or mud fluids. Our cement plugs are available in sizes ranging from 4-1/2" to 20", and we can accommodate special size requirements as well.
Technical Data of Cementing Plug:
| Casing size(in) | casing weight range | Wiper Fin O.D | ||
| mm | in | mm | in | |
| 4 1/2" | 14.14-17.26 | 9.50-11.60 | 110 | 4.331 |
| 5" | 17.11-35.86 | 11.50-24.10 | 122 | 4.803 |
| 5 1/2" | 20.83-39.88 | 14.00-26.80 | 135 | 5.315 |
| 7" | 25.30-56.55 | 17.00-38.00 | 170 | 6.693 |
| 7 5/8" | 35.72-63.69 | 24.00-42.00 | 185 | 7.283 |
| 9 5/8" | 53.57-79.62 | 36.00-53.50 | 235 | 9.252 |
| 10 3/4" | 60.27-97.77 | 40.50-65.70 | 260 | 10.236 |
| 13 3/8" | 71.43-107.15 | 48.00-72.00 | 333 | 13.110 |
| 20" | 139.89-197.93 | 94.00-133.00 | 498 | 19.606 |
Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.
We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
