Product Details
Place of Origin: China
Brand Name: ZS
Certification: API
Model Number: 2.1/16"-5.1/8”
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 800-9000
Packaging Details: wooden case package
Delivery Time: 30
Payment Terms: D/A, D/P, Western Union
Supply Ability: 200 sets/month
Name: |
Wellhead Equipment |
Usage: |
Oil Drilling |
Working Temp: |
-46°-121° |
Certification: |
API |
Material Class: |
AA, BB, CC, DD, EE, FF |
Material: |
Carbon Steel |
Working Medium: |
Oil, Gas, Mud, Gas Containing H2S, CO2 |
Performance Requirement Level:: |
PR1~PR2 |
Name: |
Wellhead Equipment |
Usage: |
Oil Drilling |
Working Temp: |
-46°-121° |
Certification: |
API |
Material Class: |
AA, BB, CC, DD, EE, FF |
Material: |
Carbon Steel |
Working Medium: |
Oil, Gas, Mud, Gas Containing H2S, CO2 |
Performance Requirement Level:: |
PR1~PR2 |

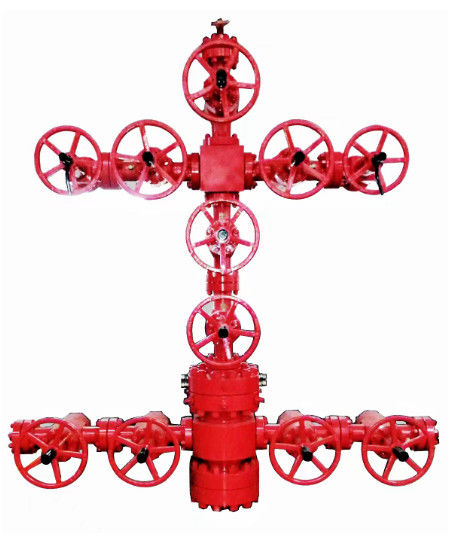

wellhead chrismas tree for oilfield from PUYANG ZHONGSHI
Christmas tree(X-mas tree)is a key equipment to control the pressure in wellhead and adjust the flow rate of Pressure in oil/gas production operation.
It can be designed into general or integral structure as required;
It can be completed with pneumatic/hydraulic safety valve;
It can be classified into two kinds of single-wing and dual-wing.
As required, matched choke may be positive choke or adjustable choke alternatively
| Rated Operating Pressure PSI(MPa) | Nominal Bore Dia. in(mm) |
Min. Vertical Bore Dia in(mm) | Bypass Bore Dia. in(mm) | Tubing Outer Dia in(mm) |
| 2000(13.8) | 2 9/16"~7 1/16" (65~180) |
6 1/4"~10" (159~254) |
1 13/16"~4 1/16" (46~103) |
1.90"~4 1/2" (48.3~114.3) |
| 3000(20.7) | 2 9/16"~7 1/16" (65~180) |
6 1/4"~10" (159~254) |
1 13/16"~4 1/16" (46~103) |
1.90"~4 1/2" (48.3~114.3) |
| 5000(34.5) | 2 9/16"~7 1/16" (65~180) |
6 1/4"~10" (159~254) |
1 13/16"~4 1/16" (46~103) |
1.90"~4 1/2" (48.3~114.3) |
| 10000(69.0) | 2 9/16"~7 1/16" (65~180) |
6 1/4"~10" (159~254) |
1 13/16"~4 1/16" (46~103) |
1.90"~4 1/2" (48.3~114.3) |
| 15000(103.5) | 2 9/16"~7 1/16" (65~180) |
6 1/4"~10" (159~254) |
1 13/16"~4 1/16" (46~103) |
1.90"~4 1/2" (48.3~114.3) |
| 20000(138.0) | 2 9/16"~7 1/16" (65~180) |
6 1/4"~10" (159~254) |
1 13/16"~4 1/16" (46~103) |
1.90"~4 1/2" (48.3~114.3) |
Puyang Zhongshi Group Company Ltd was founded in 1996,which is the restructured enterprise of Central Plains oilfield branch company of SINOPEC . The company registered capital is 6083 million yuan,with annual output value 200 million yuan, 580 employees, including more than 160 technical and administrative staff. Oil machinery is our main products, the leading products include pumping unit,subsurface sucker rod pump, wellhead (Christmas Tree), pressure vessels,drilling solid control series products and cementing accessories, We had attained ISO 9001 in 1998 and API Certificates in 2002 .
We have 9 factories, more than 500 employees, and many kinds of production equipments.
We have certificates of API 5CT,6A,10D,11AX,11E, ISO 14001 and 9001.
With 10 years exporting experience,we have exported to more than 30 countries such as America,Canada,Russia,Venezuela,Columbia,Thailand,Indonesia ,UAE,Saudi Arabia,Kazakhstan etc.
All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. If you are caught in some problems when using our products, welcome to contact us at any time.
· Zhongshi Group is the API certification enterprise for 15 years;
· ISO9001 quality management system;
· We provide on-site technical service,no matter when and where.
A: We are factory.
A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Payment<=1000USD, 100% in advance.
