Product Details
Place of Origin: China
Brand Name: ZS
Certification: API 11AX
Model Number: 20-125 To 30-250
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: nude or wooden case
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union, D/A, D/P, D/A, D/P
Supply Ability: 1000sets/month

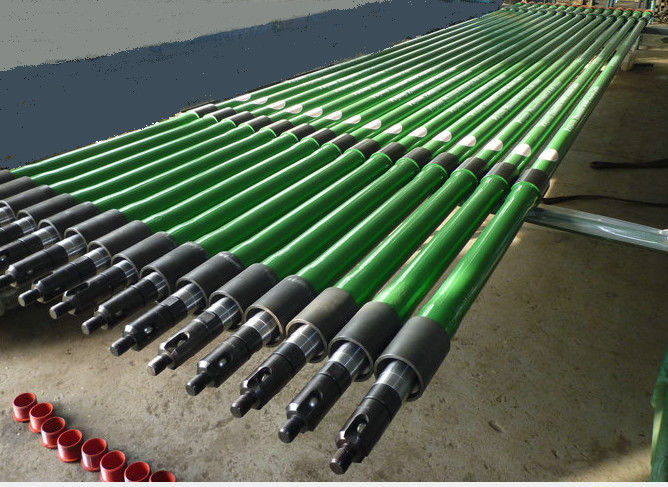

Mechanical seating or cup seating sucker rod pump description
Rod pump should be installed inside the tubing with the sucker rod.The rod pump is connected to sucker rod after being assemblied on the surface then it is pulled down to the well bottom through the tubing. It is not necessary to pull the tubing out of the well when checking the pump, which can make the operation easier and quicker.
According to seating mode, the rod pump can be divided into two types: cup hold-down pump and mechanical hold-down pump.
Sucker rod pumps of Puyang Zhongshi Group are categorized according to the API 11AX pump designation.
API-RHAC, Rod, Stationary Heavy Wall Barrel, Cup Top Anchor Pump
API-RHBM, Rod, Stationary Heavy Wall Barrel, Mechanical Bottom Anchor Pump
API-RHBC, Rod, Stationary Heavy Wall Barrel, Cup Bottom Anchor Pump
API-RWAM, Rod, Stationary Thin Wall Barrel, Mechanical Top Anchor Pump
API-RWAC, Rod, Stationary Thin Wall Barrel, Cup Top Anchor Pump
API-RWBM, Rod, Stationary Thin Wall Barrel, Mechanical Bottom Anchor Pump
· Zhongshi Group is the API certification enterprise for 15 years;
· ISO9001 quality management system;
· We provide on-site technical service,no matter when and where.
