Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: API 11AX
Model Number: 5-1/2"X8-1/2"to20"X26"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Metal or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Type: |
Bow Type Spring Centralizer |
Material: |
Stainless Steel |
Central Multimedia: |
Central Machinery Parts |
Central Hydraulics Scissor Lift: |
Toyota Central Locking System |
Weight (KG): |
10 |
Use: |
Well Drilling |
Color: |
Customized |
Type: |
Bow Type Spring Centralizer |
Material: |
Stainless Steel |
Central Multimedia: |
Central Machinery Parts |
Central Hydraulics Scissor Lift: |
Toyota Central Locking System |
Weight (KG): |
10 |
Use: |
Well Drilling |
Color: |
Customized |
1. API single piece casing centralizer performs satisfactorily in open hole as well as cased hole.
2. These high quanlity product,developed to meet and exceed API 10D specifications for use in highly demanding downhole conditions.
3. Single piece casing centralizer combines the highest restoring force with zero start force and zero running force.
4. The single piece centralizer is used to position the casing in the center of the wellbore in vertical deviated and horizontal wells.
5. The single piece centralizer reduces the effect of channelling by improving the cement flow,the results in more uniform cement thickness in the well bore.
6. By reducing the pipe movement before cement sets in.The single piece centralizers are able to minimize gas channelling.
| Technical Parameter | ||||||
| Spring Casing Centralizer | Size(In) | OD(mm) | IN(mm) | Height(mm) | Max Start-up Force(N) | Min Reset Force(N) |
| 20" | 680 | 512 | 575 | ≤16725 | ≥8363 | |
| 13-3/8" | 455 | 342 | 560 | ≤10853 | ≥5427 | |
| 9-5/8"*12-1/4" | 335 | 248 | 560 | ≤7117 | ≥7117 | |
| 7" | 235 | 181 | 560 | ≤4626 | ≥4626 | |
| 6-5/8"*8-3/4" | 238 | 171 | 560 | ≤4270 | ≥4270 | |
| 5-1/2”*8-1/2” | 235 | 142 | 560 | ≤2758 | ≥2758 | |
| Rigid Centralizer | 13-3/8" | 437 | 344 | 180 |
| 9-5/8"*12-1/4" | 305 | 248 | 120 | |
| 7" | 210 | 182 | 120 | |
| 6-5/8"*8-3/4" | 215 | 171 | 120 | |
| 5-1/2"*8-1/2" | 210 | 142 | 120 |

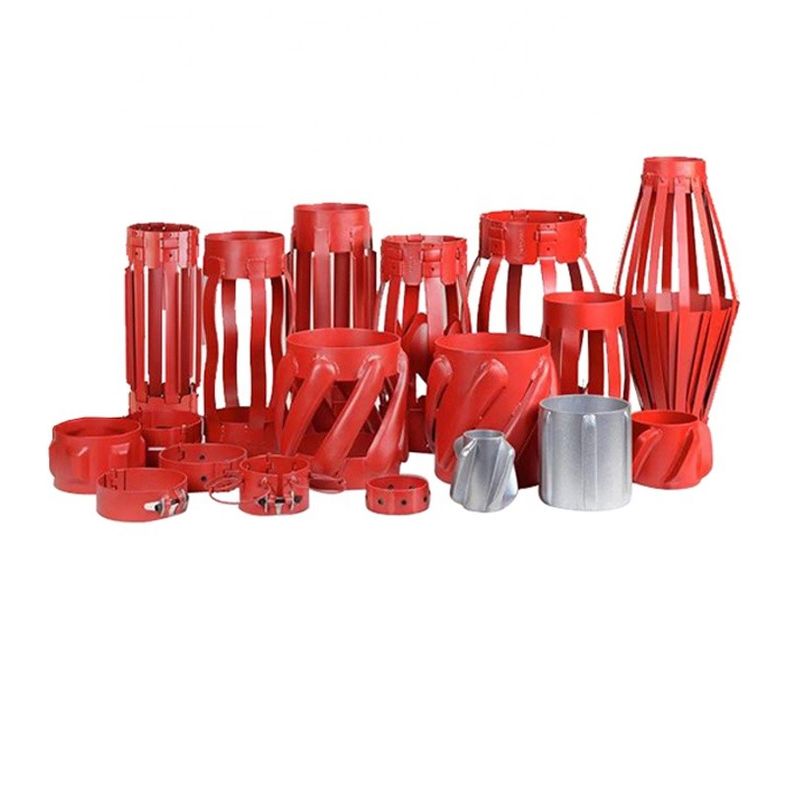

| Semi-rigid Centralizer | Single Bow Spring Centralizer | Double-bow Spring Centralizer |
|
|
|
| Integral Centralizer | Rigid Centralizer | Rigid Roller Centralizer |
|
|
|
A: We are factory.
A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Payment<=1000USD, 100% in advance.
