Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: API
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: nude or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Application: |
Cement Float |
Condition: |
New |
Warranty: |
1 Year |
Color: |
Yellow |
Material: |
Stainless Steel |
Product Name: |
Cement Float Equipment |
Size: |
Customized |
Function: |
Mixing And Floating |
MOQ: |
1 Piece |
Origin: |
China |
Weight: |
Customized |
Shape: |
Rectangle |
Speed: |
500r/min |
Application: |
Cement Float |
Condition: |
New |
Warranty: |
1 Year |
Color: |
Yellow |
Material: |
Stainless Steel |
Product Name: |
Cement Float Equipment |
Size: |
Customized |
Function: |
Mixing And Floating |
MOQ: |
1 Piece |
Origin: |
China |
Weight: |
Customized |
Shape: |
Rectangle |
Speed: |
500r/min |

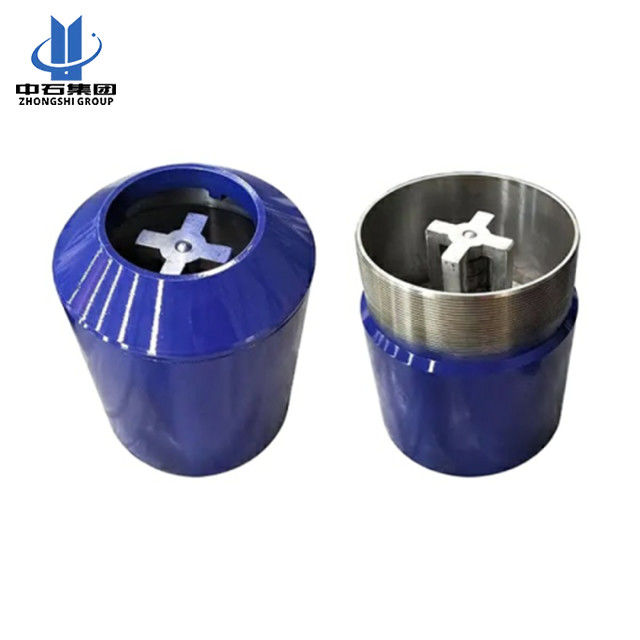

Stab-in Casing Float Collar And Float Shoe API or As required
The cement float collar& shoe offer dependable performance for all classes of oil and gas wells. The plunger type valves prevent cement backflow, provide casing buoyancy during run-in, and act as internal bops during the process of running and cementing the casing. Our float collar & shoe sizes range from 5 1/2” – 30” with float ball, stab in, non-rotating, spring and single / double valve types. Products in our factory are all manufactured to API standard, with strict quality control and inspection.
Float Collar:
Float collar is a component installed near the bottom of the casing string on which cement plugs land during the primary cementing operation. It contains a check valve to permit fluid to pass downward but not upward through the casing. The float collar prevents drilling mud from entering the casing while it is being lowered, allowing the casing to float during its descent and thus decreasing the load on the derrick or mast.
Float Shoe:
Float show allow operator to maintain a constant fluid height inside the casing of a well. It also contains a check valve to prevent back flow. It functions similarly to the float collar but also serves as a guide shoe for the casing.
The Stab-in cementing technique is a highly efficient method employed in drilling operations to effectively cement larger diameter casings. By utilizing a smaller diameter inner string of drill pipe, it reduces displacement volume and minimizes contamination, resulting in time savings.
To minimize the need for drill-out of cement within the large casing, the Stab-in Shoe incorporates a plunger valve and displacement fluid in the drill pipe. This allows for precise control over displacement and enhances the quality of the cement. With a reduced cement/mud interface area and high flow velocity within the drill pipe, contamination is minimized, and the short pumping time eliminates the requirement for cement retarders.
One significant advantage of the Stab-in method is the reduction in cement volume. Unlike conventional displacement methods that involve complex calculations for excess cement, the Stab-in method simplifies the process by considering only the volume of the drill pipe as excess cement, eliminating the need for large plugs.
The Stab-in technique significantly reduces rig time by improving displacement accuracy and minimizing the drill-out process. This leads to reduced circulating, pumping, and drill-out times, ultimately enhancing operational efficiency.
Furthermore, the Stab-in method offers casing protection as the cementing pressures are confined to the drill pipe, similar to a squeeze job. This provides an additional safeguard to prevent excessive pressure on the casing.
The Stab-in cementing equipment is available in a wide range of sizes, from 4-1/2" to 36". Additionally, the Stab-in cement Float Shoe & Collar can be customized with various combinations, including Double Valve, to meet specific requirements. Overall, the Stab-in cementing technique is a reliable and effective method for cementing larger diameter casings in drilling operations.
Specification (in) |
O.D. (mm) |
Total Length |
I.D. (mm) |
Min.Dia. (mm) |
Connection Type | Working Pressure | |
Float Collar | 5" | 141.3 | 500 | 110 | 50 | BTC/LTC/BCSG | 35 |
5 1/2" | 153.67 | 530 | 112 | 55 | BTC/LTC/BCSG | 35 | |
7" | 194.46 | 586 | 162.5 | 77 | BTC/LTC/BCSG | 35 | |
9 5/8" | 270 | 720 | 225 | 77 | BTC/LTC/BCSG | 35 | |
13 3/8" | 365 | 720 | 319 | 77 | BTC/LTC/BCSG | 35 | |
20" | 533.4 | 720 | 475 | 77 | BTC/LTC/BCSG | 35 | |
Float Shoe |
5" | 140.3 | 495 | 110 | 50 | BTC/LTC/BCSG | 35 |
5 1/2" | 153.67 | 514 | 112 | 55 | BTC/LTC/BCSG | 35 | |
7" | 194.46 | 533 | 162.5 | 77 | BTC/LTC/BCSG | 35 | |
9 5/8" | 269.88 | 550 | 225 | 77 | BTC/LTC/BCSG | 35 | |
13 3/8" | 339.7 | 550 | 319 | 77 | BTC/LTC/BCSG | 35 | |
20" | 534 | 652 | 475 | 77 | BTC/LTC/BCSG | 35 |
Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.
We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
