Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: API 11B
Model Number: 1", 1-1/8", 1-1/4", 1-1/2", and 1-3/4"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Metal or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Application: |
Oilfield Cementing |
Brand: |
OEM |
Connection Type: |
NUE/EUE/Premium |
MOQ: |
1 Piece |
Material: |
Carbon Steel/Stainless Steel/Alloy Steel |
Packaging: |
Wooden Box, Carton, Pallet |
Pressure Rating: |
High Pressure |
Product Name: |
Oilfield Cementing Tools |
Size: |
Customized |
Standard: |
API, ANSI, DIN, JIS |
Surface Treatment: |
Polishing, Sand Blasting, Painting |
Temperature Rating: |
High Temperature |
Application: |
Oilfield Cementing |
Brand: |
OEM |
Connection Type: |
NUE/EUE/Premium |
MOQ: |
1 Piece |
Material: |
Carbon Steel/Stainless Steel/Alloy Steel |
Packaging: |
Wooden Box, Carton, Pallet |
Pressure Rating: |
High Pressure |
Product Name: |
Oilfield Cementing Tools |
Size: |
Customized |
Standard: |
API, ANSI, DIN, JIS |
Surface Treatment: |
Polishing, Sand Blasting, Painting |
Temperature Rating: |
High Temperature |
Stuffing Box Detail information
The stuffing box is an essential component in wellheads that serves as a dynamic sealing device, creating a seal within the annular space between the tubing pipe and the polished rod.

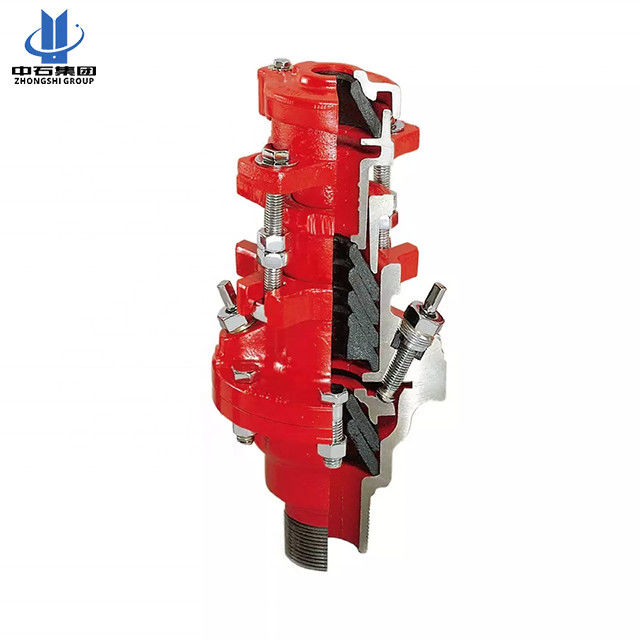

The Double Packed Stuffing Box (DPSB) is a specially designed version intended for pumping units, and it boasts several notable characteristics:
1. It features a unique misaligning capability, which reduces the need for precise alignment with the pumping unit, providing flexibility during installation.
2. The primary packing can be easily changed without interrupting operations by tightening compression bolts, allowing for efficient maintenance.
3. Equipped with cone packing, the DPSB ensures reliable and effective sealing, minimizing the risk of leaks.
4. The Lub Upper Gland (LUG) is equipped with a grease zerk, facilitating the lubrication of the polished rod for improved performance and longevity.
5. Optional components such as the Oil Reservoir Gland (ORG) and Anti-Pollution Adapter (APA) are available to meet specific requirements.
6. The LUG is designed with two heavy hex nuts on each bolt, providing outstanding support of up to 20,000 lbs. during well servicing operations, ensuring safety and stability.
7. Upon special order, a flanged bottom connection can be accommodated, catering to unique installation needs.
8. Renowned for its reliability and versatility, the DPSB is widely recognized as the most widely-used stuffing box in the industry, demonstrating its trusted performance and popularity.
Stuffing Box Detail information
| Type | Stuffing box |
| Machine Type | Petroleum Machinery |
| Certification | API |
| Material | Alloy steel |
| Processing Type | Turning |
| Use | Oil production |
| Working temperature | < 200°C |
| Sealing property | Good |
| Coating | Anti-corrosion |
| Sealing type | Multisage seal |
