Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: API 11B
Model Number: 1", 1-1/8", 1-1/4", 1-1/2", and 1-3/4"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Metal or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Application: |
Oilfield Cementing |
Brand: |
OEM |
Connection Type: |
NUE/EUE/Premium |
MOQ: |
1 Piece |
Material: |
Carbon Steel/Stainless Steel/Alloy Steel |
Packaging: |
Wooden Box, Carton, Pallet |
Pressure Rating: |
High Pressure |
Product Name: |
Oilfield Cementing Tools |
Size: |
Customized |
Standard: |
API, ANSI, DIN, JIS |
Surface Treatment: |
Polishing, Sand Blasting, Painting |
Temperature Rating: |
High Temperature |
Application: |
Oilfield Cementing |
Brand: |
OEM |
Connection Type: |
NUE/EUE/Premium |
MOQ: |
1 Piece |
Material: |
Carbon Steel/Stainless Steel/Alloy Steel |
Packaging: |
Wooden Box, Carton, Pallet |
Pressure Rating: |
High Pressure |
Product Name: |
Oilfield Cementing Tools |
Size: |
Customized |
Standard: |
API, ANSI, DIN, JIS |
Surface Treatment: |
Polishing, Sand Blasting, Painting |
Temperature Rating: |
High Temperature |
Stuffing Box Detail information

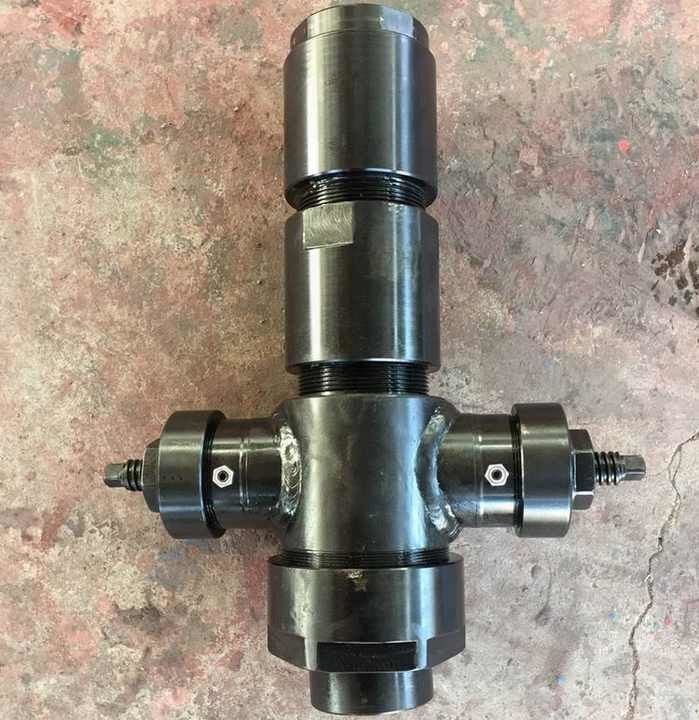

As a user of the API 11B Oilfield Polished Rod Sealing Box (Stuffing Box), I understand that it is an essential equipment installed at the Pumping Well Head. I use the Double Pack version, which seals the polished rod using cone packing and a lubricated upper section. This design ensures self-alignment and prevents packing burnout, effectively sealing against fluid pressure leakage.
The sealing box I use is made with flexible materials such as 1045/4130 casting steel or ductile iron for the cap, glands, body, and base, based on my specific requirements. The bottom of the stuffing box is equipped with API gauged threads to match tubing EUE or LP connections.
This sealing box is suitable for various polished rod sizes, including 1 inch, 1.1/8 inches, 1.1/4 inches, 1.1/2 inches, and 1.3/4 inches. It has a simple structure, making installation and maintenance extremely convenient. The option of double packing or even triple packing ensures optimal sealing effectiveness, providing reliable performance and efficient sealing capabilities. As a user, I am highly satisfied with the reliability and outstanding performance of the API 11B Oilfield Polished Rod Sealing Box.
Features of stuffing box for polished rod:
| Working Pressure | ≤1500psi |
| Bottom Thread | 1.3/4”, 2”, 2.1/2”, 3”, 3.1/2”, 4” |
| Bottom Connection | Box or Pin, API Tubing or Line Pipe thread. |
| Material | AISI1045/4130 casting steel or ductile iron |
| Split Cone Packing (rod sizes) |
1”, 1.1/8”, 1.1/4”, 1.1/2” and 1.3/4”. |
Stuffing Box Detail information
| Type | Stuffing box |
| Machine Type | Petroleum Machinery |
| Certification | API |
| Material | Alloy steel |
| Processing Type | Turning |
| Use | Oil production |
| Working temperature | < 200°C |
| Sealing property | Good |
| Coating | Anti-corrosion |
| Sealing type | Multisage seal |
