Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: API
Model Number: 2000psi to 20000 pis
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable

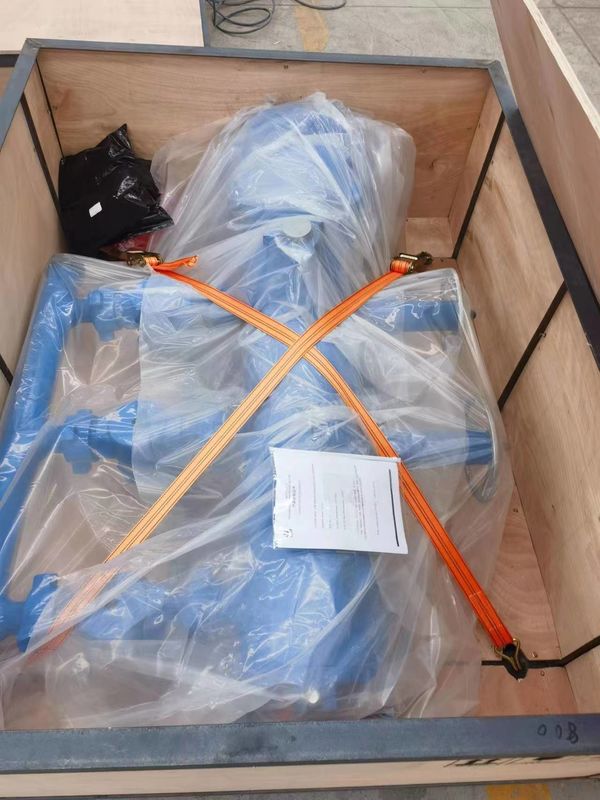

Packaging Details: Metal or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Features: |
X-mas Tree |
Application: |
Oilfield, Gasfield, Mining |
Warranty: |
1.5 Years |
Work Pressure: |
2000~15000 PSI |
Certification: |
API |
Core Components: |
Bearing, Gearbox, Pressure Vessel |
Processing Type: |
Forging |
Production Capacity: |
1000 Sets/year |
Connection: |
Threaded, Flanged, Welded |
Material: |
Carbon Steel, Alloy Steel, Stainless Steel |
Name: |
Oilfield Cementing Tools |
Surface Treatment: |
Polishing, Galvanizing, Coating |
Temperature: |
High Temperature, Low Temperature |
Features: |
X-mas Tree |
Application: |
Oilfield, Gasfield, Mining |
Warranty: |
1.5 Years |
Work Pressure: |
2000~15000 PSI |
Certification: |
API |
Core Components: |
Bearing, Gearbox, Pressure Vessel |
Processing Type: |
Forging |
Production Capacity: |
1000 Sets/year |
Connection: |
Threaded, Flanged, Welded |
Material: |
Carbon Steel, Alloy Steel, Stainless Steel |
Name: |
Oilfield Cementing Tools |
Surface Treatment: |
Polishing, Galvanizing, Coating |
Temperature: |
High Temperature, Low Temperature |
Oil Gas Production Christmas Trees
These units are utilized for the regulation of wellhead pressure and the adjustment of oil/gas flowrate. They come in two structural models: single-wing or dual-wing, and can be either single-string or dual-string integrated. The trees can be equipped with a hydraulic or pneumatic safety valve and can also incorporate a control panel for remote control operations. Moreover, there are two types of choke valve available: fixed or adjustable.
| Rated operating pressure psi(MPa) | Nominal bore diameterin(mm) | Minimum vertical bore diameterin(mm) | Bypass bore diameter in(mm) | Tubing outer diameter in(mm) |
| 2000(13.8) | 2 9/16"~7 1/16" (65~180) | 6 1/4"~10" (159~254) | 1 13/16"~4 1/16" (46~103) | 1.90"~4 1/2" (48.3~114.3) |
| 3000(20.7) | 2 9/16"~7 1/16" (65~180) | 6 1/4"~10" (159~254) | 1 13/16"~4 1/16" (46~103) | 1.90"~4 1/2" (48.3~114.3) |
| 5000(34.5) | 2 9/16"~7 1/16" (65~180) | 6 1/4"~10" (159~254) | 1 13/16"~4 1/16" (46~103) | 1.90"~4 1/2" (48.3~114.3) |
| 10000(69.0) | 2 9/16"~7 1/16" (65~180) | 6 1/4"~10" (159~254) | 1 13/16"~4 1/16" (46~103) | 1.90"~4 1/2" (48.3~114.3) |
| 15000(103.5) | 2 9/16"~7 1/16" (65~180) | 6 1/4"~10" (159~254) | 1 13/16"~4 1/16" (46~103) | 1.90"~4 1/2" (48.3~114.3) |
| 20000(138.0) | 2 9/16"~7 1/16" (65~180) | 6 1/4"~10" (159~254) | 1 13/16"~4 1/16" (46~103) | 1.90"~4 1/2" (48.3~114.3) |
Product Introduction:
API 6A Wellhead Equipment & X-mas Tree Product is vital in the oil and gas exploration industry. It consists of the casing head, tubing head, and oil or gas tree. This equipment serves multiple functions, including connecting the casing and tubing strings, sealing the annular space, and controlling pressure at the production wellhead. Additionally, it manages the flow of oil or gas and enables specialized operations like water injection, acid fracturing, and testing. The wellhead and christmas tree is an indispensable component in the oil and gas industry.
Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.
We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
