Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Type: |
Cement/Poppet-type |
Color: |
Blue Or As Required |
Application: |
Oil And Water Well Cementing Tools |
Working Pressure: |
21Mpa-35Mpa |
Valve: |
Single Type Or Double Type |
Material: |
K-55, L-80, N-80, C-95, T-95, And P110. |
Use: |
Well Drilling |
Certification: |
API |
Type: |
Cement/Poppet-type |
Color: |
Blue Or As Required |
Application: |
Oil And Water Well Cementing Tools |
Working Pressure: |
21Mpa-35Mpa |
Valve: |
Single Type Or Double Type |
Material: |
K-55, L-80, N-80, C-95, T-95, And P110. |
Use: |
Well Drilling |
Certification: |
API |
1.Description:
High strength design ensures high pressure bump and back flow resistance;

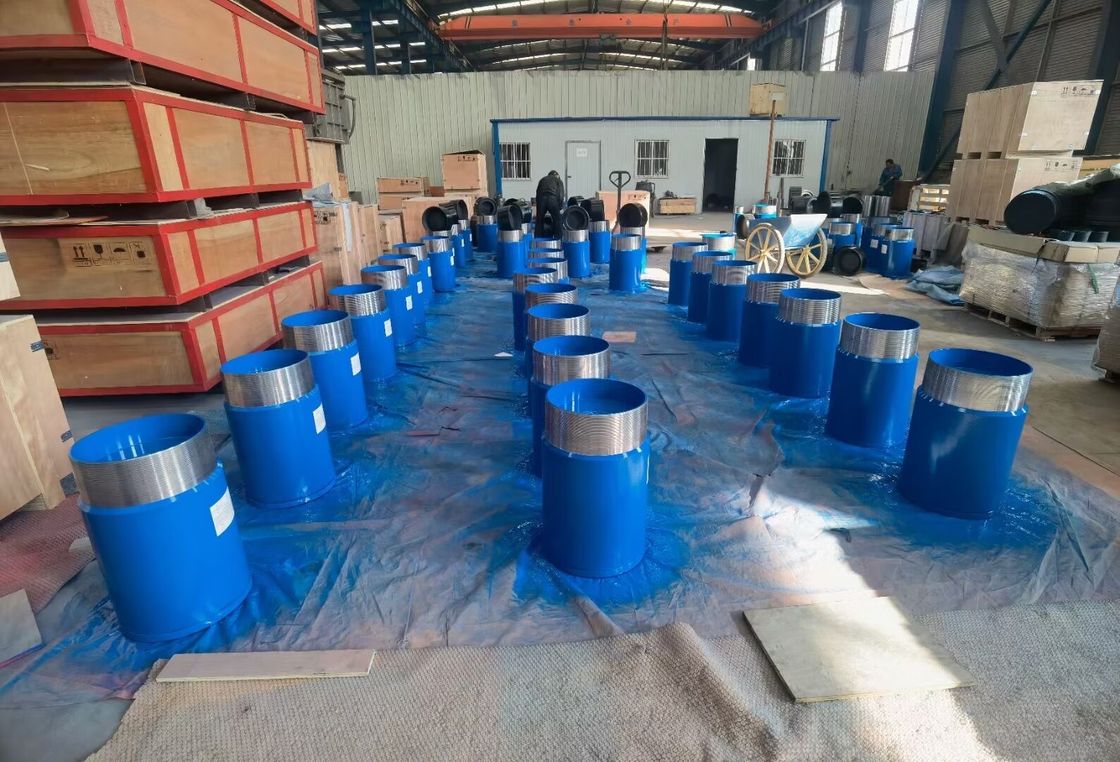

The Float Collar and Float Shoe is used to guide the casing to be put into the hole. It can adjust the floating power of the casing when the casing been laid in. That can certify the qualification of the cementing. The Float Collars and Float Shoe manufactured by our company use the Spring Driving back-pressure valve type. It has a high reliability.
Technical parameter
| Specification(In) | OD(MM) | Total Length | ID(MM) | Min.Dia(mm) | Connection Type | Working Pressure | |
| Float Collar | 5" | 141.3 | 500 | 110 | 50 | BTC/LTC/BCSG | 35 |
| 5 1/2" | 153.67 | 530 | 112 | 55 | BTC/LTC/BCSG | 35 | |
| 7" | 194.46 | 586 | 162.5 | 77 | BTC/LTC/BCSG | 35 | |
| 9 5/8" | 270 | 720 | 225 | 77 | BTC/LTC/BCSG | 35 | |
| 13 3/8" | 365 | 720 | 319 | 77 | BTC/LTC/BCSG | 35 | |
| 20" | 533.4 | 720 | 475 | 77 | BTC/LTC/BCSG | 35 | |
| Float Shoe | 5" | 140.3 | 495 | 110 | 50 | BTC/LTC/BCSG | 35 |
| 5 1/2" | 153.67 | 514 | 112 | 55 | BTC/LTC/BCSG | 35 | |
| 7" | 194.46 | 533 | 162.5 | 77 | BTC/LTC/BCSG | 35 | |
| 9 5/8" | 269.88 | 550 | 225 | 77 | BTC/LTC/BCSG | 35 | |
| 13 3/8" | 339.7 | 550 | 319 | 77 | BTC/LTC/BCSG | 35 | |
| 20" | 534 | 652 | 475 | 77 | BTC/LTC/BCSG | 35 |
|
FAQ
A: We are factory.
A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Payment<=1000USD, 100% in advance.
