Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
Oilfield Conventional Cementing Rubber Plugs |
Processing Type: |
Forging, Casting |
Type: |
Conventional |
Temperature: |
-30℃ To 150℃ |
Working Pressure: |
≥15MP |
Core Inside: |
Aluminum/Phenolic Core Inside |
Product: |
Oilfield Conventional Cementing Rubber Plugs |
Processing Type: |
Forging, Casting |
Type: |
Conventional |
Temperature: |
-30℃ To 150℃ |
Working Pressure: |
≥15MP |
Core Inside: |
Aluminum/Phenolic Core Inside |

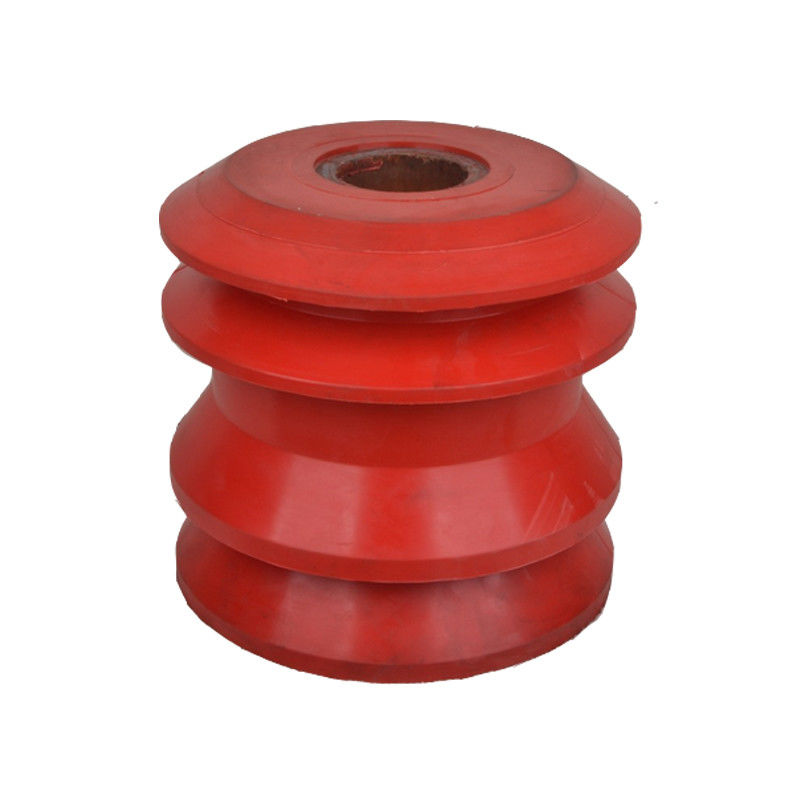

Oilfield Conventional Cementing Rubber Plugs
Cement Wiper Plug:
The cement wiper plug contains Standard Cement Wiper Plug and Non-Rotating Cement Wiper Plug. The plugs maintain separation of cementing fluids, wipe casing walls clean, and prevent cement contamination. Whenbumped against a float collar, they provide positive indication of displacement and casing sealability.
This top plug can be used when dual plug system is not required and Bottom cementing plug can use when dual plug system is required. These plugs are completely PDC drillable.
The operating range of temperature with Aluminum core is up to 200 degrees Fahrenheit. The plug can be ordered for higher operating temperatures and operation in either synthetic or mud fluids.
These are available in 16" to 30 "sizes + any special sizes.
Inch size | Bore Dia (mm) |
Main body diameter(mm) | MM O.D(mm) | Labial ministry diameter(mm) | Length (mm) |
|||
Rubber | Polyurethane | Rubber | Polyurethane | Rubber | Polyurethane | |||
101 | ≥40 | 77~80 | 72~75 | 101~104 | 96~99 | 94~97 | 89~92 | 100~190 |
114 | 80~83 | 75~78 | 114~116 | 109~111 | 108~110 | 102~105 | ||
127 | ≥50 | 90~93 | 87~90 | 127~130 | 122~125 | 120~123 | 115~118 | 120~210 |
140 | 100~103 | 97~100 | 140~145 | 135~140 | 130~ 135 | 125~130 | ||
178 | ≥70 | 130~135 | 125~130 | 178~183 | 173~175 | 168~173 | 163~168 | 150~240 |
194 | 145~150 | 140~145 | 194~201 | 189~196 | 182~189 | 177~184 | ||
219 | 168~173 | 163~168 | 219~223 | 214~218 | 210~214 | 205~209 | 180~260 | |
244 | 192~197 | 187~192 | 244~249 | 239~243 | 234~239 | 229~234 | ||
273 | 210~214 | 205~209 | 273~279 | 268~273 | 262~268 | 257~263 | 220~300 | |
298 | 236~243 | 231~238 | 298~305 | 293~297 | 286~293 | 281~288 | ||
340 | 264~272 | 259~267 | 340~348 | 335~343 | 326~334 | 321~329 | 260~350 | |
508 | ≥100 | 424~435 | 419~430 | 508~519 | 503~514 | 490~501 | 485~496 | 360~450 |
