Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
Oilfield Conventional Cementing Rubber Plugs |
Processing Type: |
Forging, Casting |
Type: |
Conventional |
Temperature: |
-30℃ To 150℃ |
Working Pressure: |
≥15MP |
Core Inside: |
Aluminum/Phenolic Core Inside |
Product: |
Oilfield Conventional Cementing Rubber Plugs |
Processing Type: |
Forging, Casting |
Type: |
Conventional |
Temperature: |
-30℃ To 150℃ |
Working Pressure: |
≥15MP |
Core Inside: |
Aluminum/Phenolic Core Inside |

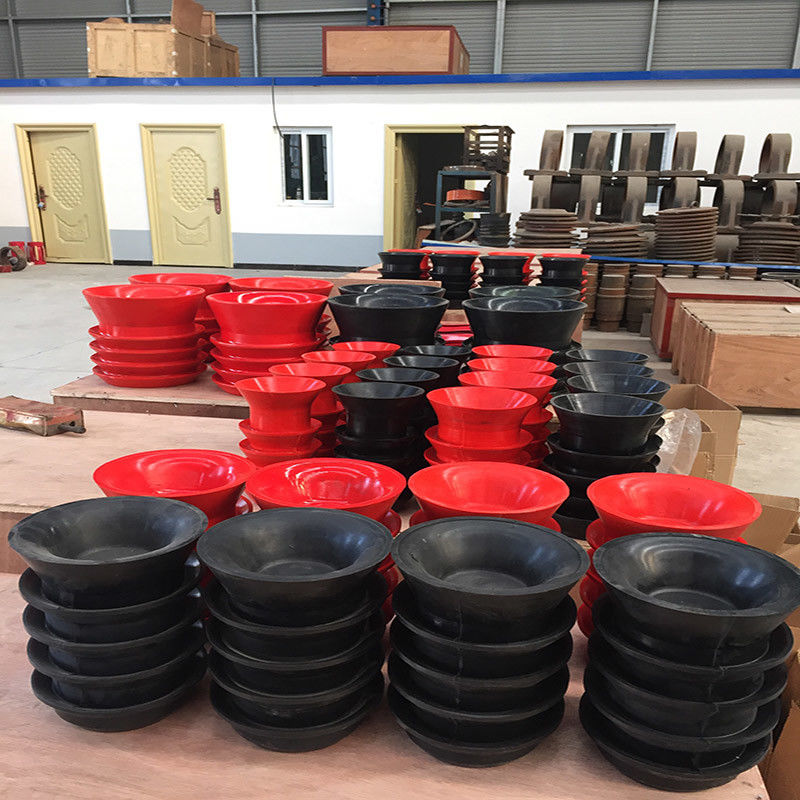

Oilfield Conventional Cementing Rubber Plugs
Cement Wiper Plug:
The cement wiper plug contains Standard Cement Wiper Plug and Non-Rotating Cement Wiper Plug. The plugs maintain separation of cementing fluids, wipe casing walls clean, and prevent cement contamination. Whenbumped against a float collar, they provide positive indication of displacement and casing sealability.
Available in 4 1/2” to 20 ” sizes + any special sizes.
The rotating cementing top plug is manufactured by graded rubber,the rubber is fused onto a composite or aluminum core, rubber and aluminum/composite material is to be bonded strongly.
All plugs are PDC drill-able, and the operating temperature with an aluminum core is up to 305 Fahrenheit.
Cementing plugs which with higher operation temperature could be provided also.
| Inch size | Bore Dia (mm) |
Main body diameter(mm) | MM O.D(mm) | Labial ministry diameter(mm) | Length (mm) |
|||
| Rubber | Polyurethane | Rubber | Polyurethane | Rubber | Polyurethane | |||
| 101 | ≥40 | 77~80 | 72~75 | 101~104 | 96~99 | 94~97 | 89~92 | 100~190 |
| 114 | 80~83 | 75~78 | 114~116 | 109~111 | 108~110 | 102~105 | ||
| 127 | ≥50 | 90~93 | 87~90 | 127~130 | 122~125 | 120~123 | 115~118 | 120~210 |
| 140 | 100~103 | 97~100 | 140~145 | 135~140 | 130~ 135 | 125~130 | ||
| 178 | ≥70 | 130~135 | 125~130 | 178~183 | 173~175 | 168~173 | 163~168 | 150~240 |
| 194 | 145~150 | 140~145 | 194~201 | 189~196 | 182~189 | 177~184 | ||
| 219 | 168~173 | 163~168 | 219~223 | 214~218 | 210~214 | 205~209 | 180~260 | |
| 244 | 192~197 | 187~192 | 244~249 | 239~243 | 234~239 | 229~234 | ||
| 273 | 210~214 | 205~209 | 273~279 | 268~273 | 262~268 | 257~263 | 220~300 | |
| 298 | 236~243 | 231~238 | 298~305 | 293~297 | 286~293 | 281~288 | ||
| 340 | 264~272 | 259~267 | 340~348 | 335~343 | 326~334 | 321~329 | 260~350 | |
| 508 | ≥100 | 424~435 | 419~430 | 508~519 | 503~514 | 490~501 | 485~496 | 360~450 |
