Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
Oilfield Conventional Cementing Rubber Plugs |
Processing Type: |
Forging, Casting |
Type: |
Conventional |
Temperature: |
-30℃ To 150℃ |
Working Pressure: |
≥15MP |
Core Inside: |
Aluminum/Phenolic Core Inside |
Product: |
Oilfield Conventional Cementing Rubber Plugs |
Processing Type: |
Forging, Casting |
Type: |
Conventional |
Temperature: |
-30℃ To 150℃ |
Working Pressure: |
≥15MP |
Core Inside: |
Aluminum/Phenolic Core Inside |

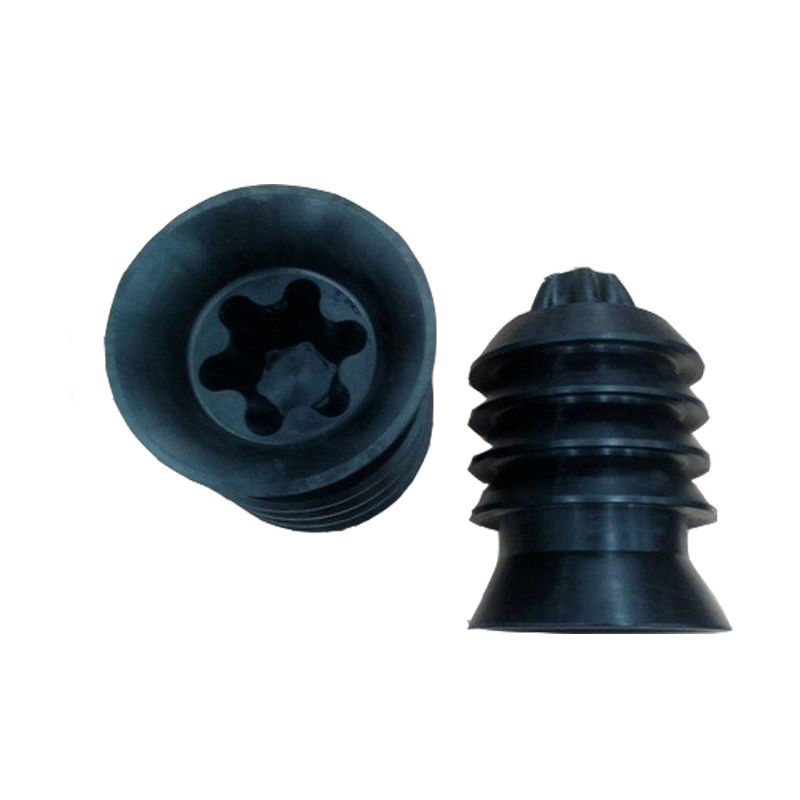

Cementing plug:
Cementing Plugs from high-performance special elastomers and core materials. These Cementing Plugs are specially designed with a positive wiping action to ensure that the casing is clean.
Top Plugs:The Top Cementing Plug is designed to exert continuous pressure on the casing wall. The core is made of special materials such as Plastic, Aluminium or Phenolic depending on the application and well conditions. The tapered base fits the cavity of the top plug initiating a positive seal. A solid rubber top plug is also available.
Bottom Plugs:Like the Top Cementing Plug, the fins and tail section provide positive wiping action. Fins also serve as a seal while cementing. The core of the bottom plug also made of special materials such as Plastic, Aluminium or Phenolic depending on the application and well conditions. A rubber diaphragm at the top of the plug ruptures after the plug is seated allowing cement to flow through.
| Inch size | Bore Dia (mm) |
Main body diameter(mm) | MM O.D(mm) | Labial ministry diameter(mm) | Length (mm) |
|||
| Rubber | Polyurethane | Rubber | Polyurethane | Rubber | Polyurethane | |||
| 101 | ≥40 | 77~80 | 72~75 | 101~104 | 96~99 | 94~97 | 89~92 | 100~190 |
| 114 | 80~83 | 75~78 | 114~116 | 109~111 | 108~110 | 102~105 | ||
| 127 | ≥50 | 90~93 | 87~90 | 127~130 | 122~125 | 120~123 | 115~118 | 120~210 |
| 140 | 100~103 | 97~100 | 140~145 | 135~140 | 130~ 135 | 125~130 | ||
| 178 | ≥70 | 130~135 | 125~130 | 178~183 | 173~175 | 168~173 | 163~168 | 150~240 |
| 194 | 145~150 | 140~145 | 194~201 | 189~196 | 182~189 | 177~184 | ||
| 219 | 168~173 | 163~168 | 219~223 | 214~218 | 210~214 | 205~209 | 180~260 | |
| 244 | 192~197 | 187~192 | 244~249 | 239~243 | 234~239 | 229~234 | ||
| 273 | 210~214 | 205~209 | 273~279 | 268~273 | 262~268 | 257~263 | 220~300 | |
| 298 | 236~243 | 231~238 | 298~305 | 293~297 | 286~293 | 281~288 | ||
| 340 | 264~272 | 259~267 | 340~348 | 335~343 | 326~334 | 321~329 | 260~350 | |
| 508 | ≥100 | 424~435 | 419~430 | 508~519 | 503~514 | 490~501 | 485~496 | 360~450 |
