Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: API
Model Number: 2000psi to 20000 pis
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Metal or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Features: |
X-mas Tree |
Application: |
Oilfield Cementing |
Warranty: |
1.5 Years |
Work Pressure: |
2000~15000 PSI |
Certification: |
API |
Core Components: |
Bearing, Gearbox, Pressure Vessel |
Processing Type: |
Forging |
Production Capacity: |
1000 Sets/year |
Certificate: |
ISO, API, Etc. |
MOQ: |
1 Piece |
Material: |
Carbon Steel, Alloy Steel, Stainless Steel, Etc. |
Features: |
X-mas Tree |
Application: |
Oilfield Cementing |
Warranty: |
1.5 Years |
Work Pressure: |
2000~15000 PSI |
Certification: |
API |
Core Components: |
Bearing, Gearbox, Pressure Vessel |
Processing Type: |
Forging |
Production Capacity: |
1000 Sets/year |
Certificate: |
ISO, API, Etc. |
MOQ: |
1 Piece |
Material: |
Carbon Steel, Alloy Steel, Stainless Steel, Etc. |

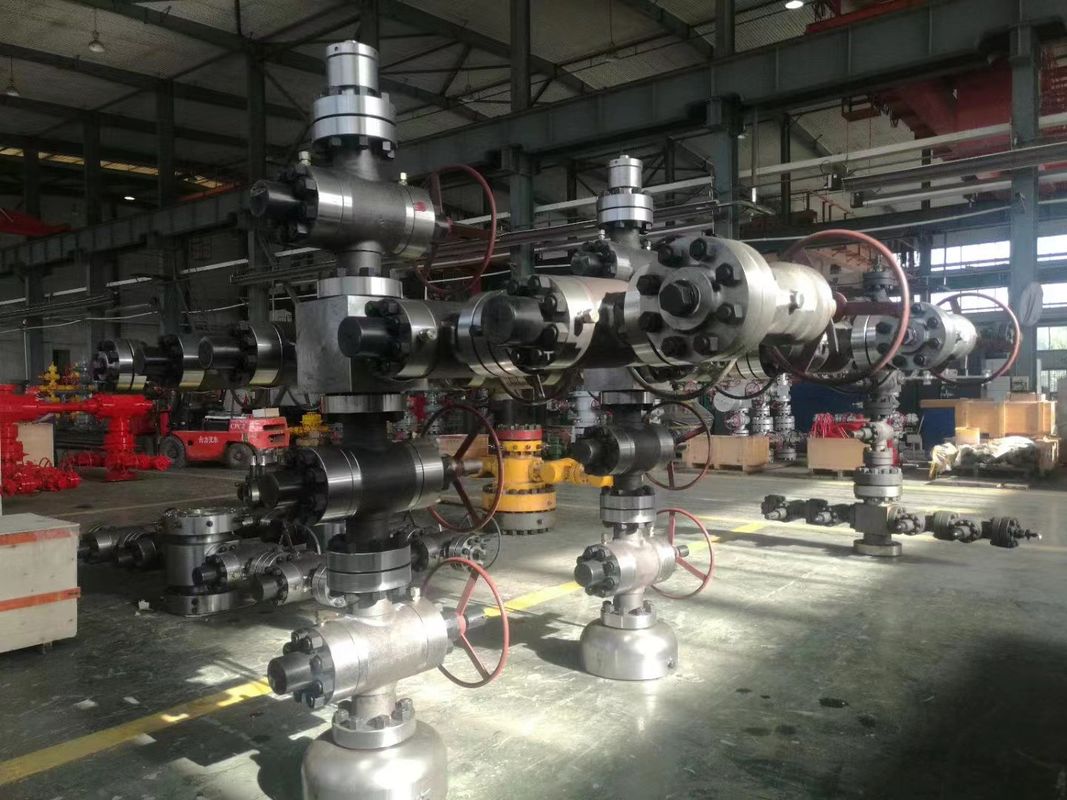

Oil Gas Production Christmas Trees
Oil and gas production Christmas trees serve the purpose of regulating pressure and managing the flow of oil and gas at the wellhead. There are different structural models available, including single-wing or dual-wing configurations, as well as single-string or dual-string integrated designs.
These trees can be equipped with either hydraulic or pneumatic safety valves to ensure proper safety measures are in place. Additionally, they are equipped with a control panel that allows for remote control operations, enhancing convenience and efficiency in the management of the well.
The choke valve, which controls the flow rate, can be either fixed or adjustable, providing flexibility in optimizing the flow of oil and gas according to operational requirements.
| Rated operating pressure psi(MPa) | Nominal bore diameterin(mm) | Minimum vertical bore diameterin(mm) | Bypass bore diameter in(mm) | Tubing outer diameter in(mm) |
| 2000(13.8) | 2 9/16"~7 1/16" (65~180) | 6 1/4"~10" (159~254) | 1 13/16"~4 1/16" (46~103) | 1.90"~4 1/2" (48.3~114.3) |
| 3000(20.7) | 2 9/16"~7 1/16" (65~180) | 6 1/4"~10" (159~254) | 1 13/16"~4 1/16" (46~103) | 1.90"~4 1/2" (48.3~114.3) |
| 5000(34.5) | 2 9/16"~7 1/16" (65~180) | 6 1/4"~10" (159~254) | 1 13/16"~4 1/16" (46~103) | 1.90"~4 1/2" (48.3~114.3) |
| 10000(69.0) | 2 9/16"~7 1/16" (65~180) | 6 1/4"~10" (159~254) | 1 13/16"~4 1/16" (46~103) | 1.90"~4 1/2" (48.3~114.3) |
| 15000(103.5) | 2 9/16"~7 1/16" (65~180) | 6 1/4"~10" (159~254) | 1 13/16"~4 1/16" (46~103) | 1.90"~4 1/2" (48.3~114.3) |
| 20000(138.0) | 2 9/16"~7 1/16" (65~180) | 6 1/4"~10" (159~254) | 1 13/16"~4 1/16" (46~103) | 1.90"~4 1/2" (48.3~114.3) |
The API 6A Wellhead Equipment & X-mas Tree Product is a crucial component in the oil and gas production process. Its main functions include:
1. **Secure Casing and Tubing:** The wellhead provides a reliable connection that secures the casing and tubing of the well, ensuring their stability and preventing any leakage or failure.
2. **Pressure Regulation:** It plays a vital role in regulating the pressure within the well. By controlling the pressure, the wellhead ensures the safe and efficient extraction of oil and gas, preventing any potential risks or disruptions.
3. **Designed for High-Pressure and Extreme Conditions:** The API 6A wellhead is designed to withstand high pressures and extreme conditions commonly encountered in oil and gas operations. This ensures the integrity and durability of the wellhead, even in challenging environments.
4. **Accessory Integration:** The wellhead can be equipped with various accessories such as valves, chokes, and sensors. These accessories enhance the functionality of the wellhead by allowing better control of the flow rate, pressure, and overall performance of the production process.
The API 6A wellhead can be operated manually or remotely, depending on the specific requirements of the well and the preferences of the operator. This flexibility enables efficient operation and ensures the smooth and safe extraction of oil and gas.
Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.
We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
