Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: API
Model Number: 2000psi to 20000 pis
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Metal or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Features: |
X-mas Tree |
Application: |
Oilfield |
Warranty: |
1.5 Years |
Work Pressure: |
2000~15000 PSI |
Certification: |
API |
Core Components: |
Bearing, Gearbox, Pressure Vessel |
Processing Type: |
Forging |
Connection: |
Threaded, Flanged, Welded |
Name: |
Oilfield Cementing Tools |
Surface Treatment: |
Polishing, Galvanizing, Coating |
Temperature: |
High Temperature, Low Temperature |
Connection Type: |
Threaded |
Features: |
X-mas Tree |
Application: |
Oilfield |
Warranty: |
1.5 Years |
Work Pressure: |
2000~15000 PSI |
Certification: |
API |
Core Components: |
Bearing, Gearbox, Pressure Vessel |
Processing Type: |
Forging |
Connection: |
Threaded, Flanged, Welded |
Name: |
Oilfield Cementing Tools |
Surface Treatment: |
Polishing, Galvanizing, Coating |
Temperature: |
High Temperature, Low Temperature |
Connection Type: |
Threaded |

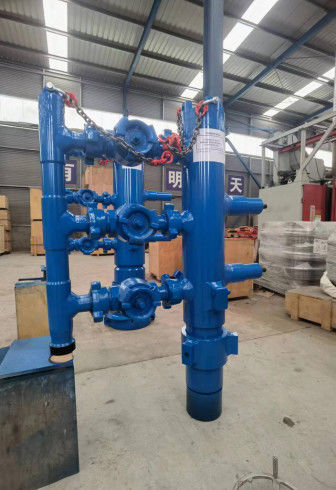

Oil & Gas Production Christmas Trees and Cementing head
These units have a critical role in the control of wellhead pressure and the management of oil and gas flow. They come in various structural configurations, including single-wing or dual-wing designs, and can be integrated as single-string or dual-string systems. The wellhead trees can be equipped with hydraulic or pneumatic safety valves, and they may also have a control panel for remote control operations. Additionally, there are two options for choke valves: fixed choke or adjustable choke. These choices collectively provide versatility and reliability in wellhead operations.
| Rated operating pressure psi(MPa) | Nominal bore diameterin(mm) | Minimum vertical bore diameterin(mm) | Bypass bore diameter in(mm) | Tubing outer diameter in(mm) |
| 2000(13.8) | 2 9/16"~7 1/16" (65~180) | 6 1/4"~10" (159~254) | 1 13/16"~4 1/16" (46~103) | 1.90"~4 1/2" (48.3~114.3) |
| 3000(20.7) | 2 9/16"~7 1/16" (65~180) | 6 1/4"~10" (159~254) | 1 13/16"~4 1/16" (46~103) | 1.90"~4 1/2" (48.3~114.3) |
| 5000(34.5) | 2 9/16"~7 1/16" (65~180) | 6 1/4"~10" (159~254) | 1 13/16"~4 1/16" (46~103) | 1.90"~4 1/2" (48.3~114.3) |
| 10000(69.0) | 2 9/16"~7 1/16" (65~180) | 6 1/4"~10" (159~254) | 1 13/16"~4 1/16" (46~103) | 1.90"~4 1/2" (48.3~114.3) |
| 15000(103.5) | 2 9/16"~7 1/16" (65~180) | 6 1/4"~10" (159~254) | 1 13/16"~4 1/16" (46~103) | 1.90"~4 1/2" (48.3~114.3) |
| 20000(138.0) | 2 9/16"~7 1/16" (65~180) | 6 1/4"~10" (159~254) | 1 13/16"~4 1/16" (46~103) | 1.90"~4 1/2" (48.3~114.3) |
Product Introduction of cementing head well head:
The API 6A Wellhead Equipment & X-mas Tree Product holds significant importance in the oil and gas exploration industry. Comprising the casing head, tubing head, and oil or gas tree, this equipment fulfills various essential functions. These include connecting the casing and tubing strings, ensuring a secure seal in the annular space, and effectively managing pressure at the production wellhead. Additionally, it plays a crucial role in regulating the flow of oil or gas, enabling specialized operations like water injection, acid fracturing, and testing. Overall, the wellhead and christmas tree occupy a vital position in the oil and gas sector, providing indispensable functionality.
Puyang Zhongshi Group Co., Ltd, established in 1997, is a professional manufacturer of various oilfield equipment and cementing accessories. As a restructured enterprise of SINOPEC, we have gained extensive experience in exporting our products for over 10 years. With 9 subsidiary factories and a workforce of more than 500 employees, we are committed to delivering high-quality products.
Our group is recognized as a first-class supplier in the resources market of SINOPEC and CNPC. We hold certifications such as API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001, and ISO 14001. Our customer base extends to America, Central Asia, Russia, Southeast Asia, the Middle East, and other regions.
