Product Details
Place of Origin: China
Brand Name: zhongshi
Certification: API 5CT ,ISO ,QHSE
Model Number: pup joint
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: exported packing
Delivery Time: 2 weeks
Payment Terms: T/T
Material: |
Alloy Steel,J55 K55 N80 L80 P110 |
Product Name: |

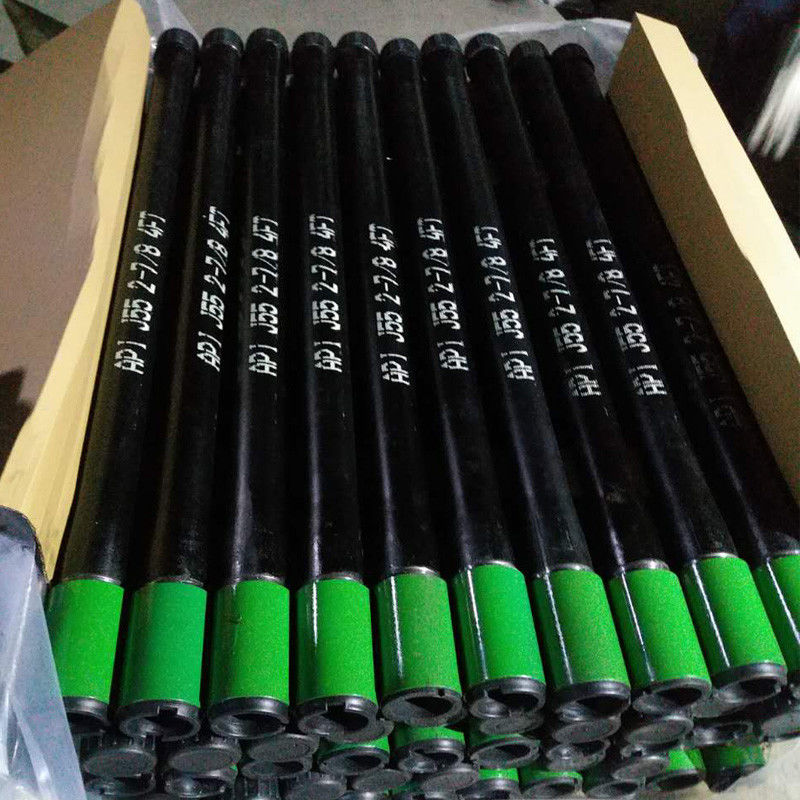

API 5ct Casing And Tubing Pup Joint |
Standard: |
API, ISO,QHSE |
Thread: |
EUE , NUE |
Thickness: |
2.87-30mm,4.24--20.62mm |
Size: |
2-3/8-----3-1/2 |
Material: |
Alloy Steel,J55 K55 N80 L80 P110 |
Product Name: |
API 5ct Casing And Tubing Pup Joint |
Standard: |
API, ISO,QHSE |
Thread: |
EUE , NUE |
Thickness: |
2.87-30mm,4.24--20.62mm |
Size: |
2-3/8-----3-1/2 |
Product Description:
Casing pipe is most often used in underground construction projects to encase or protect utility lines from being damaged.
Once a well has been drilled, if it is to become a production well, the well must undergo completion. While drilling a well cuts
through the rock formations and allows drilling engineers to reach the reservoir below, the raw sides of the well cannot support
themselves. Similar to the bones of your spine protecting the spinal cord, casing is tubing that is set inside the drilled well to
protect and support the wellstream.
1.Specification range:OD: 114.30 MM - 508.00 MM(4 1/2"--20") WT: 5.21MM-16.13MM(9.50PPF--133.00PPF)
2. Materials: H40, J55, K55, N80-1, N80-Q, L80-1,L80-9Cr, L80-13Cr, P110, Q125 etc
3. Executive standards: API 5CT, GB, ISO11960, GOST
4. Thread connection: BTC, STC,LTC,V
5. Length: R1, R2, R3
6. Testing: NDT etc related rules of API 5CT and 5B
7:Type:seamless pipe
Technical Parameter:
| Diameters: | 1.9" through 4.5" nominal O.D. |
| Weights: | Standard or Heavy Wall |
| Lengths: | 2, 3, 4, 6, 8, 10, 12 ft. Standard (Other lengths available upon request) |
| Grades: | J-55, N-80, N-80 Q & T, L-80, P-110 |
| Connections: | EUE, NUE, Buttress |
|
Size |
Type of Thread |
O.D*L (mm) |
Weight(kg) |
|---|---|---|---|
| 2-3/8" | NUE | 73.02*107.95 | 1.28 |
| 2-3/8" | EUE | 77.80*132.82 | 1.55 |
| 2-7/8" | NUE | 88.90*130.18 | 2.34 |
| 2-7/8" | EUE | 93.17*133.35 | 2.40 |
| 3-1/2" | NUE | 107.95*142.88 | 3.71 |
| 3-1/2" | EUE | 114.30*146.05 | 4.10 |
| 4" | NUE | 120.65*146.05 | 4.35 |
| 4" | EUE | 127.00*152.40 | 4.82 |
| 4-1/2" | NUE | 132.08*155.58 | 4.89 |
| 4-1/2" | EUE | 141.30*158.75 | 6.05 |
