Product Details
Place of Origin: China
Brand Name: zhongshi
Certification: API 5CT ,ISO ,QHSE
Model Number: pup joint
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: exported packing
Delivery Time: 2 weeks
Payment Terms: T/T
Material: |
Alloy Steel,J55 K55 N80 L80 P110 |
Product Name: |
API 5ct Casing And Tubing Pup Joint |
Standard: |
API, ISO,QHSE |
Thread: |
EUE , NUE |
Thickness: |
2.87-30mm,4.24--20.62mm |
Size: |
2-3/8-----3-1/2 |
Material: |
Alloy Steel,J55 K55 N80 L80 P110 |
Product Name: |
API 5ct Casing And Tubing Pup Joint |
Standard: |
API, ISO,QHSE |
Thread: |
EUE , NUE |
Thickness: |
2.87-30mm,4.24--20.62mm |
Size: |
2-3/8-----3-1/2 |

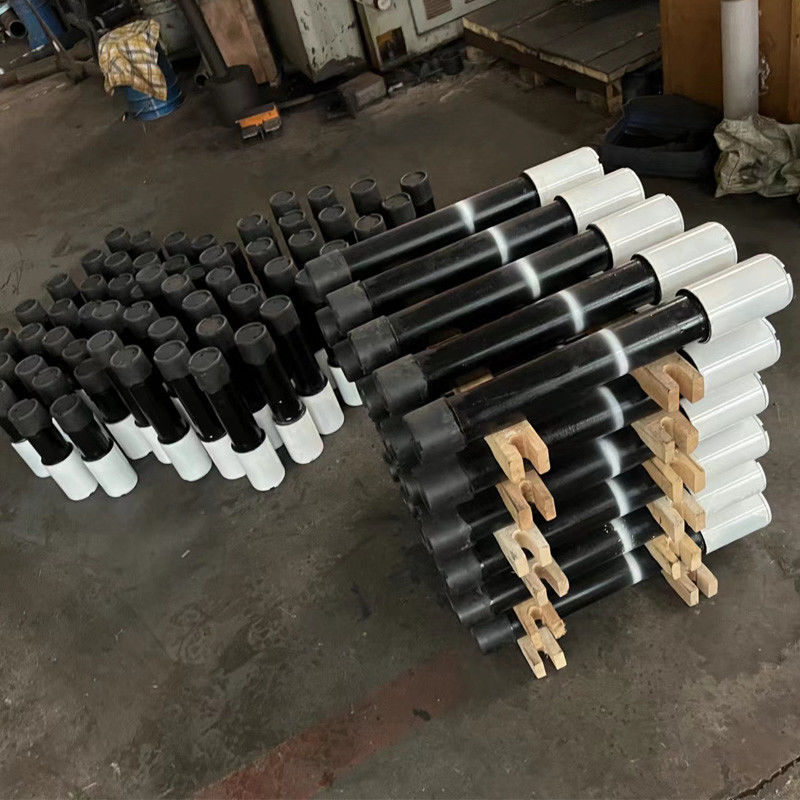

Product Description:
The casing pup joint are used to adjust the height of full length tubing or casing strings, they are also used to asjust the depth of downhole tools.
The casing pup joint conforms to API Specification 5ct and other related standards,Having been anthorized to use the API monogram.
All sizes of NUE&EUE pup joint are available in grade J,N,L, which all of them conform to API latest specification..
As there are a lot of different details for the same kind product,our company can customize product according to the client's requirments.
Technical Parameter:
| Diameters: | 1.9" through 4.5" nominal O.D. |
| Weights: | Standard or Heavy Wall |
| Lengths: | 2, 3, 4, 6, 8, 10, 12 ft. Standard (Other lengths available upon request) |
| Grades: | J-55, N-80, N-80 Q & T, L-80, P-110 |
| Connections: | EUE, NUE, Buttress |
|
Size |
Type of Thread |
O.D*L (mm) |
Weight(kg) |
|---|---|---|---|
| 2-3/8" | NUE | 73.02*107.95 | 1.28 |
| 2-3/8" | EUE | 77.80*132.82 | 1.55 |
| 2-7/8" | NUE | 88.90*130.18 | 2.34 |
| 2-7/8" | EUE | 93.17*133.35 | 2.40 |
| 3-1/2" | NUE | 107.95*142.88 | 3.71 |
| 3-1/2" | EUE | 114.30*146.05 | 4.10 |
| 4" | NUE | 120.65*146.05 | 4.35 |
| 4" | EUE | 127.00*152.40 | 4.82 |
| 4-1/2" | NUE | 132.08*155.58 | 4.89 |
| 4-1/2" | EUE | 141.30*158.75 | 6.05 |
