Product Details
Place of Origin: China
Brand Name: zhongshi
Certification: API 5CT ,ISO ,QHSE
Model Number: pup joint
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: exported packing
Delivery Time: 2 weeks
Payment Terms: T/T
Material: |
Alloy Steel,J55 K55 N80 L80 P110 |
Product Name: |
API 5ct Casing And Tubing Pup Joint |
Standard: |
API, ISO,QHSE |
Thread: |
EUE , NUE |
Thickness: |
2.87-30mm,4.24--20.62mm |
Size: |
2-3/8-----3-1/2 |
Material: |
Alloy Steel,J55 K55 N80 L80 P110 |
Product Name: |
API 5ct Casing And Tubing Pup Joint |
Standard: |
API, ISO,QHSE |
Thread: |
EUE , NUE |
Thickness: |
2.87-30mm,4.24--20.62mm |
Size: |
2-3/8-----3-1/2 |

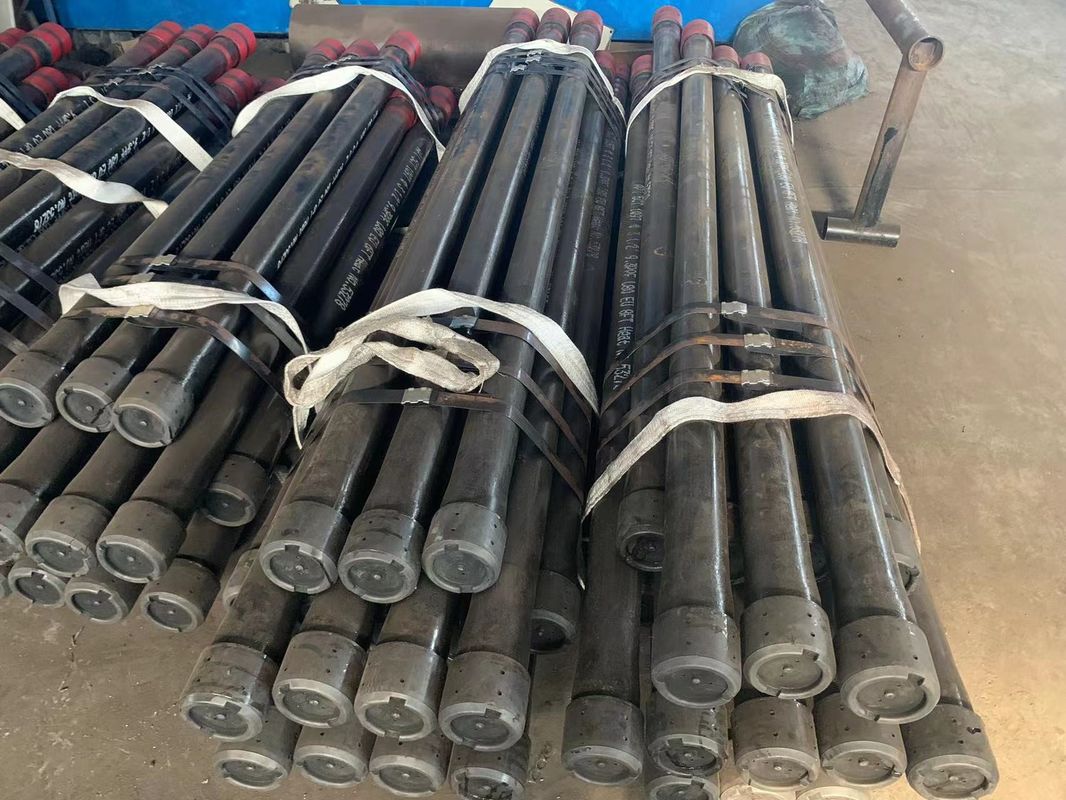

Product Description:
The OCTG pup joint is a pipe that can be cut to different lengths to meet the desired value. Orchid Energy Co could provide API standard casing and tubing pup joints which are manufactured according to API Spec 5CT with different grade of seamless tubing according to the clients requirement.
Benefits & Features
1. Standard: API 5CT/ISO11960/GOST;
2. Grade: H40, J55, K55, N80-1, N80-Q, L80-1,L80-9Cr, L80-13Cr, P110, C95,Q125;
3. Length: 2ft,3ft,4ft,6ft,8ft,10ft,12ft(with other length available upon request);
4. OD of Tubing joint: from 2 3/8” to 4 1/2”.Pipe End: EUE/NUE;
5. OD of Casing joint: from 4 1/2” to 20”. Threads: BTC,LTC,STC;
Technical Parameter:
| Diameters: | 1.9" through 4.5" nominal O.D. |
| Weights: | Standard or Heavy Wall |
| Lengths: | 2, 3, 4, 6, 8, 10, 12 ft. Standard (Other lengths available upon request) |
| Grades: | J-55, N-80, N-80 Q & T, L-80, P-110 |
| Connections: | EUE, NUE, Buttress |
|
Size |
Type of Thread |
O.D*L (mm) |
Weight(kg) |
|---|---|---|---|
| 2-3/8" | NUE | 73.02*107.95 | 1.28 |
| 2-3/8" | EUE | 77.80*132.82 | 1.55 |
| 2-7/8" | NUE | 88.90*130.18 | 2.34 |
| 2-7/8" | EUE | 93.17*133.35 | 2.40 |
| 3-1/2" | NUE | 107.95*142.88 | 3.71 |
| 3-1/2" | EUE | 114.30*146.05 | 4.10 |
| 4" | NUE | 120.65*146.05 | 4.35 |
| 4" | EUE | 127.00*152.40 | 4.82 |
| 4-1/2" | NUE | 132.08*155.58 | 4.89 |
| 4-1/2" | EUE | 141.30*158.75 | 6.05 |
