Product Details
Place of Origin: China,Henan
Brand Name: PYZS
Certification: API
Model Number: 5/8"- 20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Supply Ability: 10000sets/month
Application: |
Oil And Gas Industry |
Connection: |
EUE/NUE |
Connections: |
EU, NU, Premium Connections |
End Type: |
EUE |
Ends: |
Plain, Threaded, Coupled |
Function: |
Transporting Oil Or Gas |
Material: |
Carbon Steel |
Package: |
In Bundles Or Loose |
Section Shape: |
Round |
Section Ship: |
Round |
Size: |
2 3/8 |
Steel Grade: |
L80 P110 |
Thread: |
EUE/NUE |
Application: |
Oil And Gas Industry |
Connection: |
EUE/NUE |
Connections: |
EU, NU, Premium Connections |
End Type: |
EUE |
Ends: |
Plain, Threaded, Coupled |
Function: |
Transporting Oil Or Gas |
Material: |
Carbon Steel |
Package: |
In Bundles Or Loose |
Section Shape: |
Round |
Section Ship: |
Round |
Size: |
2 3/8 |
Steel Grade: |
L80 P110 |
Thread: |
EUE/NUE |

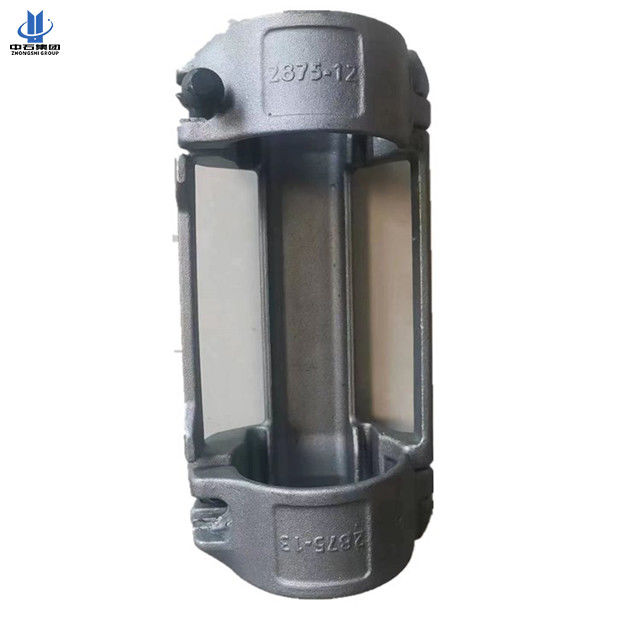

Cross coupling cable protector for tubing and casing
Pipe Size:2-3/8”,2-7/8”,3-1/2”,4”,4-1/2”,5”,5-1/2”,6”,6-3/8”,7”……
Coupling type:EUE,NUE,FOX,NEW,NK3SB,BGT11….
Cable size:#1Flat, #2Flat, #3Flat,
#1Round, #2Round, #3Round….
Control line: 1/8”,1/4”, 3/8”, 11mm*11mm…….
1. General introduction
Casting cable protector is widely applied on cross coupling, tubing, safety valve protection, completions, fixing, well repair and gauge completions. The body of cable protectors is produced by precision casting using high-grade materials to ensure product reliability. The unique streamline design prevents damage during dynamic movements of the production tubing and ensuring continuity and accuracy in the gauges complication. Cable protectors can be installed speedily as it has no separate parts or pins, reducing the hang-up risk. Moreover, it can be uninstalled just as easily and still allows reinstallation.
All cable protectors have double protection to resist corrosion
All hinges are spot-welded to enhance the overall integrity of the product
Spring friction pad gripping system for superior grip
Slip and rotation resistant
Non-destructive gripping action
Designed to eliminate compression-reduced damages to the conductors
3. Specifications:
Manufactured of low carbon steel or stainless steel
Available as cross-coupling and mid-joint protectors
Suitable for API tubing sizes from 2 3/8" to 7"
Configured for flat, round or square cables, chemical injection lines, umbilicals etc.
Multichannel designis available to separate multiple lines
Customized upon request
| NO. |
CASING SIZE OCTG ERW |
TUBING CENTRALIZER (ID) |
TUBING CENTRALIZER (OD) |
|
| 1 | 5.5" | 2-3/8"(60.325mm) | 110mm | |
| 2 | 7" 6" | 2-3/8"(60.325mm) | 140mm | |
| 3 | 7" 6" | 2-7/8"(73.025mm) | 140mm | |
| 4 | 2-7/8"(73.025mm) | 114-115mm | ||
| 5 | 7" | 3-1/2"(88.900mm) | 140mm | |
| 6 | 0.83"(210.82mm) | 419.1mm | ||
| 7 | 1.19"(302.26mm) | 419.1mm |
