ASTM Standard And Grade A 29 Gr1045 Polished Bar Clamp Capacity 40000 Lb

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API 11B ,ISO ,QHSE

Model Number: Sucker rod clamp

Payment & Shipping Terms

Minimum Order Quantity: Discussion

Price: Negotiable

Delivery Time: Soonly

Payment Terms: D/P, T/T, D/A

Supply Ability: 50000 pcs per month

Get Best Price
Highlight:

Single Polished Bar Clamp

,

ASTM Polished Bar Clamp

,

Polished Steel Rod Clamp 5/8"

Packaging Details:
As Required
Product::
Polished Rod Clip/Clamp
Length:
Standard
Sucker Rod Size:
5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-1/2"
Key Words:
Rony Rod Polished Rod Clip/Clamp
Material:
Stainless Steel
Structures:
Single ,Two Bolts,Three Bolts
Packaging Details:
As Required
Product::
Polished Rod Clip/Clamp
Length:
Standard
Sucker Rod Size:
5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-1/2"
Key Words:
Rony Rod Polished Rod Clip/Clamp
Material:
Stainless Steel
Structures:
Single ,Two Bolts,Three Bolts
ASTM Standard And Grade A 29 Gr1045 Polished Bar Clamp Capacity 40000 Lb
Product Description
Product Description

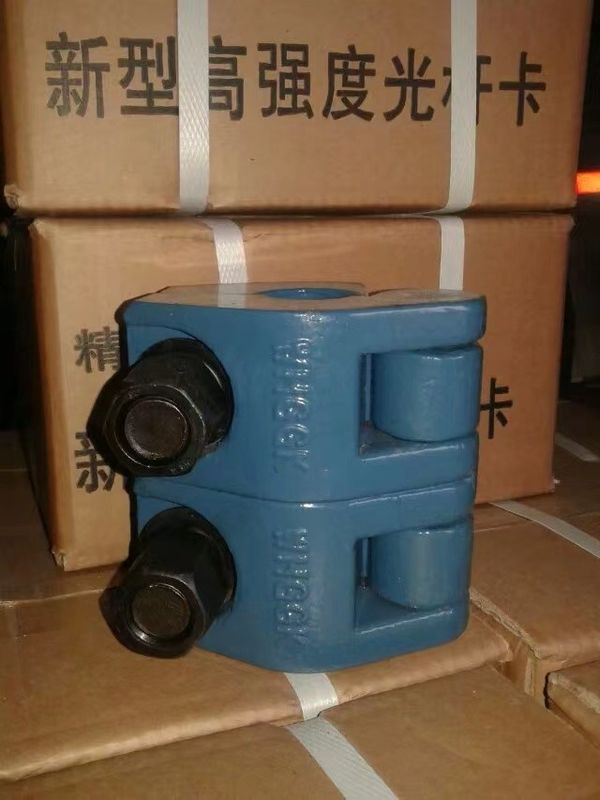

Bolt Type Polished Rod Clamp with API standard





Polished rod clamp
The butterfly-structured polished rod clamp functions as a retaining device for the rope hanger, securing it onto the polished rod. This connection enables the pumping unit's horsehead to link with the polished rod using the rod eye lifting device, with the polished rod subsequently bearing and supporting the load of the sucker rod string. It plays a crucial role in linking the oil pump and sucker rod, necessitating reliability, specific capacity, and the prevention of damage to the sucker rod.

PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS of Clamp

Polished Rod Diameter
Working load
Tightening Torque
Weight
WL12000 single bolt
22mm
78.5KN
3200N.m
5.6Kg
25mm
100KN
5.5Kg
25.4mm (1in)
100KN
5.5Kg
28.6mm (1 1/8in)
118KN
5.5Kg
WL16000 two bolt
25.4mm (1 in)
118KN
1545N.m
7.3 Kg
28mm
157KN
7.2 Kg
28.6mm (1 1/8in)
157KN
7.2 Kg
31.8mm (1 1/4in)
157KN
7.1 Kg
32mm
157KN
7.1 Kg
38.1mm (1 1/2in)
178KN
9 Kg
WL18100 three bolt
1.8mm (1 1/4in)
178 KN
1977N.m
10.35Kg
32mm
178 KN
10.35Kg
38.1mm (1 1/2in)
178 KN
10.2Kg


Rod Clamp (4).jpgRod Clamp (3).jpg
