API 6A Oilfiedl Equipment Wellhead Casing Head

Name: API 6A Oilfiedl Equipment Wellhead Casing Head
Brand: Puyang Zhongshi Group Co., Ltd.
SKU: 2000psi to 20000 pis
Price: 4,500.00 USD
Availability: InStock

Product Details

Place of Origin: China,Henan

Brand Name: ZS

Certification: API

Model Number: 2000psi to 20000 pis

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Metal or wooden case

Delivery Time: 15 work days

Payment Terms: T/T

Supply Ability: 1000sets/month

Get Best Price

Product Details

Product Description

Highlight:

Features:	X-mas Tree	Application:	Oilfield Cementing
Warranty:	1.5 Years	Work Pressure:	2000~15000 PSI
Certification:	API	Core Components:	Bearing, Gearbox, Pressure Vessel
Processing Type:	Forging	Production Capacity:	1000 Sets/year
Certificate:	ISO, API, Etc.	MOQ:	1 Piece
Material:	Carbon Steel, Alloy Steel, Stainless Steel, Etc.

Features:	X-mas Tree
Application:	Oilfield Cementing
Warranty:	1.5 Years
Work Pressure:	2000~15000 PSI
Certification:	API
Core Components:	Bearing, Gearbox, Pressure Vessel
Processing Type:	Forging
Production Capacity:	1000 Sets/year
Certificate:	ISO, API, Etc.
MOQ:	1 Piece
Material:	Carbon Steel, Alloy Steel, Stainless Steel, Etc.

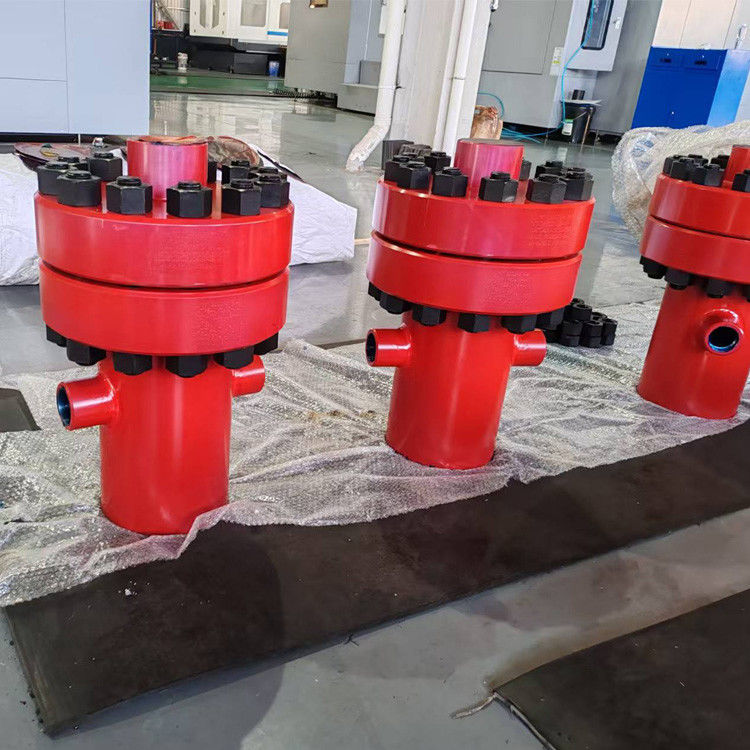

API 6A Oilfiedl Equipment Wellhead Casing Head

Casing head

CASING HEAD/CASING SPOOL/CASING HOUSING/API6A spareparts for wellhead

1. spool and adapter can be designed according to customer's all kinds of models and sizes to meet the requirements in work site. there are three kinds of connecting models for bop.
2 .connection and outlets. including flanged,studded and clamped-in style.gasket groove is line welded by stainless steel according to API Spec 6A . so as to prolong the using period and decrease the maintaining cost.

API 6A Oilfiedl Equipment Wellhead Casing Head 0

Product Paramenters

Top Flange Size (inches)	Working Pressure (psi)	Bottom Flange Size (inches)	Working Pressure (psi)
11"	2,000	11"	2,000
11"	2,000	13-5/8"	3,000
11"	3,000	11"	3,000
11"	3,000	11"	2,000
11"	3,000	13-5/8"	2,000
11"	3,000	13-5/8"	3,000
11"	3,000	16-3/4"	2,000
11"	3,000	16-3/4"	3,000
11"	5,000	13-5/8"	3,000
11"	5,000	16-3/4"	3,000
11"	10,000	13-5/8"	5,000
13-5/8"	3,000	16-3/4"	3,000
13-5/8"	3,000	21-1/4"	2,000
13-5/8"	5,000	20-3/4"	3,000

Product Description

API 6A wear bushing wellhead

spool and adapter can be designed according to customer's all kinds of models and sizes to meet the requirements in work site.
there are three kinds of connecting models for bop 2 connection and outlets. including flanged,studded and clamped-in style.gasket groove is line welded by stainless steel according to API Spec 6A . so as to prolong the using period and decrease the maintaining cost.
Structure of Tubing Head Tubing head is usually a spool with both flanged ends, which is set on the top flange of casing head to hang tubing hanger and seal the annular space between the tubing string and oil-layer casing and which consists of tubing head spool and tubing hanger.
