Oilfield Equipment API 11AX Sucker Rod Pump Accessories Chorme Barrel

Name: Oilfield Equipment API 11AX Sucker Rod Pump Accessories Chorme Barrel
Brand: Puyang Zhongshi Group Co., Ltd.
SKU: Sucker rod pump
Price: 19,525.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API, ISO, QHSE

Model Number: Sucker rod pump

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 10~15 workdays

Payment Terms: L/C, D/P, T/T, Western Union, D/A

Supply Ability: 1000 SETS/MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                API 11AX sucker rod pump, chrome barrel oilfield equipment, sucker rod pump accessories


Product:	High Performance Sucker Rod Pump Chorme Barrel	Material:	38CrMoA,alloy Steel
Standard:	API11AX	Application:	Oil,petroleum Production
Length:	As Request	Plunger Length (ft):	2-24

Product:	High Performance Sucker Rod Pump Chorme Barrel
Material:	38CrMoA,alloy Steel
Standard:	API11AX
Application:	Oil,petroleum Production
Length:	As Request
Plunger Length (ft):	2-24

Oilfield Equipment API 11AX Sucker Rod Pump Accessories Chorme Barrel

High Performance Sucker Rod Pump Chorme Barrel

Description of Sucker Rod Pump Barrel

The barrel is a part of sucker rod pump which is connected to sucker rod after being assemblied on the surface then it is pulled down to the well bottom through the tubing.

Working Principle

In the upper stroke, the plunger is on the bottom of the pump. Because of the hydraulic pressure from the upper tubing, both up and traveling valves will close. When the plunger go up, the stationary valve open and oil will go through the pump, since the bottom pressure is higher than the upper pressure, then the fluid will be forced to go through the stationary valve and flow into the tubing.

In the down stroke,the traveling valve open and the presure drive the oil go into the plunger from the side holeof the extractor, then go into the tubing.

The subsurface sucker rod pump is consist of tubing coupling, extension nipple, barrel coupling, barrel, traveling valve, plunger, extractor, stationary valve.

Technical Specifications:

Specification	Nominal Bore mm(in)	Plunger Length m(ft)		Max. O.D. mm	Rod in	Tubing in	Pump Constant m3/d	Stroke m
20-125 TH	32 (1.25)	1.2-1.8(4-6)	73		3/4	2-3/8	1.14	≤8.0
25-125 TH	32 (1.25)		88.9		3/4	2-7/8	1.14
20-150 TH	38 (1.50)		73		3/4 (5/8)	2-3/8	1.64
25-150 TH	38 (1.50)		88.9		3/4 (5/8)	2-7/8	1.64
20-175 TH	44 (1.75)		73		3/4	2-3/8	2.24
25-175 TH	44 (1.75)		88.9		3/4	2 7/8	2.24
25-200 TH	51 (2.00)		88.9		3/4	2-7/8	2.91
25-225 TH	57 (2.25)		88.9		3/4	2-7/8	3.69
25-250 TH	64 (2.50)		88.9		3/4	3-1/2	4.55
30-275 TH	70 (2.75)		108		7/8	3-1/2	5.50
35-325 TH	83 (3.25)		116		7/8	4	7.70
40-375 TH	95 (3.75)		116		1	4-1/2	10.26
35-425 TH	108 (4.25)		147		1-1/8	4	13.18

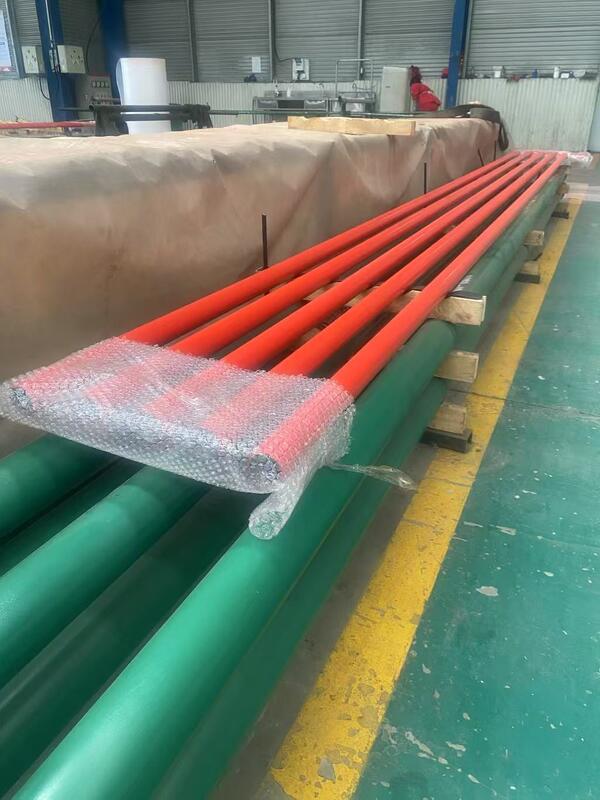

Oilfield Equipment API 11AX Sucker Rod Pump Accessories Chorme Barrel 0
