Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: RWBM
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Plunger: |
With Plunger |
Seating Location 1: |
Top |
Seating Location 2: |
Bottom |
Anchor Type: |
Cup Or Mechanical |
Pump Type 1: |
Sucker Rod Pump |
Pump Type 2: |
Tubing Pump |
Barrel Configuration: |
Stationary |
Groove On Plunger: |
As Customers' Request |
Plunger: |
With Plunger |
Seating Location 1: |
Top |
Seating Location 2: |
Bottom |
Anchor Type: |
Cup Or Mechanical |
Pump Type 1: |
Sucker Rod Pump |
Pump Type 2: |
Tubing Pump |
Barrel Configuration: |
Stationary |
Groove On Plunger: |
As Customers' Request |
Top Seating And Bottom Seating Oil Rod Inserted Pump
Top seating and bottom seating rod inserted pump description:
Sucker rod pump and tubing pump both are also called inserted pumps
API inserted pump models:
API-RHAC, Rod, Stationary Heavy Wall Barrel, Cup Top Anchor Pump
API-RHBM, Rod, Stationary Heavy Wall Barrel, Mechanical Bottom Anchor Pump
API-RHBC, Rod, Stationary Heavy Wall Barrel, Cup Bottom Anchor Pump
API-RWAM, Rod, Stationary Thin Wall Barrel, Mechanical Top Anchor Pump
API-RWAC, Rod, Stationary Thin Wall Barrel, Cup Top Anchor Pump
API-RWBM, Rod, Stationary Thin Wall Barrel, Mechanical Bottom Anchor Pump
API-TH(B)M,Tubing ,Heavy Wall Barrel ,Mechanical Anchor Pump
API-TH(B)C,Tubing ,Heavy Wall Barrel ,Cup Type Anchor Pump
Main parts process and material:
Pump barrel: plain carbon steel plating (A1), ordinary carbon steel carbonitriding (B1), ordinary carbon steel carburizing (B2), low alloy steel nitride (B5).
Plunger: 1045 steel spraying (B1), 1045 steel spraying (B2), 1045 steel chrome plating (A1), 1045 steel double chrome plating (A2).
Valve ball and seat: stainless steel (A1), cobalt chromium (B2), tungsten carbide (C1), nickel and carbon compounds (C2), titanium carbide (C3).
Other accessories: plain carbon steel, low alloy steel, stainless steel, brass and other materials.
Rod inserted pump technical specifications:
|
Pump type |
Basic API technical parameters | |||||
|
OD of pump (mm) |
Barrel length (m) |
Stroke length (m) |
Extension (m) |
tubing thread |
rod size
|
|
|
Rod Pumps |
Ø31.8 |
2.1 2.4 2.7 3.0 3.3 3.6 3.9 4.2 4.5 4.8 5.7 6.0 7.3 8.0 9.1 |
1.5 ∣ 6
|
0.3
0.6
0.9 |
2-3/8” | CYG16 |
Features:
1. high pumping efficiency, large displacement
2. wear and corrosion resistance
3. long operation and easy repairing

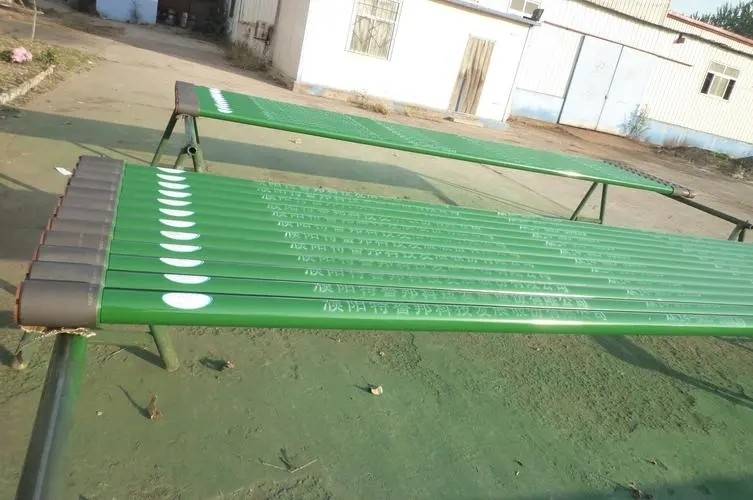

Tubing rod inserted pump Packing photo:
