Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: IOS,API
Model Number: 13 3/8″ to 4 1/2″
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Metal or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 10000sets/month
Features: |
API Low Pressure Filter Press |
Application: |
Application |
Core Components: |
PLC, Bearing |
Condition: |
New |
Usage: |
Oilfield Drilling Equipment |
Color: |
Customized |
Bow Spring Finish: |
Polished |
Bow Spring Force: |
1000 Lbs |
Coupling Type: |
Integral |
Material: |
Carbon Steel |
Features: |
API Low Pressure Filter Press |
Application: |
Application |
Core Components: |
PLC, Bearing |
Condition: |
New |
Usage: |
Oilfield Drilling Equipment |
Color: |
Customized |
Bow Spring Finish: |
Polished |
Bow Spring Force: |
1000 Lbs |
Coupling Type: |
Integral |
Material: |
Carbon Steel |

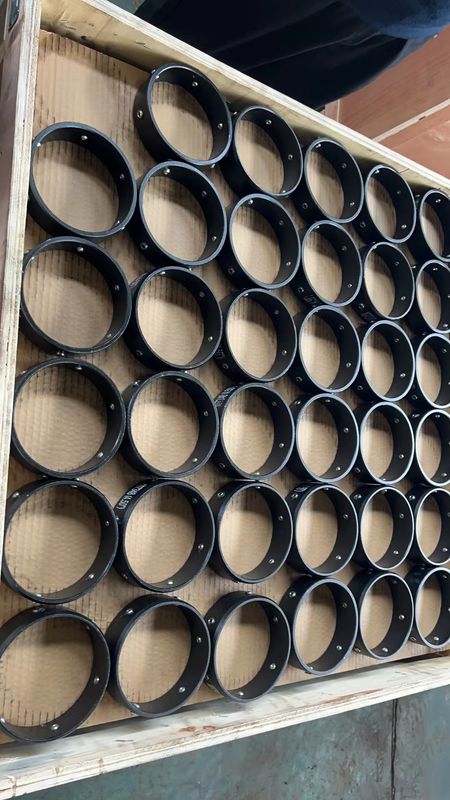

Centralizer Stop Collars
A Centralizer Stop Collar is a device designed to prevent the movement or slippage of centralizers or cement baskets on a casing during the cementing process. It is also referred to by various names such as position ring, stop circular, brake ring, etc. There are three types of Centralizer Stop Collars: mobile screw-type, fixed screw-type, and buckle-type.
The primary purpose of this device is to restrict the axial movement of centralizers or cement baskets on the casing. By limiting their movement, it ensures proper placement and alignment during cementing operations.
To install a mobile screw-type stop collar, you need to slide the collar over the casing and use a wrench to tighten the screws securely.
For fixed screw stop collars, you should place the collar around the casing, insert screws into their designated holes, and tap them into place using a hammer.
In the case of buckle-type stop collars, you need to fasten the collar onto the casing by buckling it in place and secure it with pins. Then, use a hammer to tap any screws into their designated positions.
These installation methods ensure that Centralizer Stop Collars are properly attached to casings, providing effective support during cementing operations while preventing any unwanted movement or slippage.
3. Property Parameters of Centralizer Stop Collars:
| Specifications,mm | 13 3/8″ | 10 3/4″ | 9 5/8″ | 8 1/8″ | 7 5/8″ | 7″ | 5 1/2″ | 5″ | 4 1/2″ |
| ID,mm | 338 | 272 | 245 | 206 | 193 | 177 | 139 | 126 | 114 |
| OD,mm | 350 | 284 | 257 | 218 | 285 | 189 | 151 | 138 | 126 |
| Holding Force,KN | 40 | 40 | 40 | 30 | 30 | 30 | 30 | 24 | 24 |
Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.
We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
