Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API 5CT, ISO, QHSE
Model Number: 1.05"-4 1/2"
Payment & Shipping Terms
Minimum Order Quantity: 1 metric ton
Price: Negotiable
Packaging Details: Be bundled by steel strap
Payment Terms: T/T, L/C
Material: |
Alloy Steel |
Steel Grade: |
J55, K55, L80, N80, P110, P110-13Cr |
Structure: |
Seamless |
Processing: |
Hot-rolled |
Standard: |
API 5CT |
Application: |
Oil Industry |
Material: |
Alloy Steel |
Steel Grade: |
J55, K55, L80, N80, P110, P110-13Cr |
Structure: |
Seamless |
Processing: |
Hot-rolled |
Standard: |
API 5CT |
Application: |
Oil Industry |

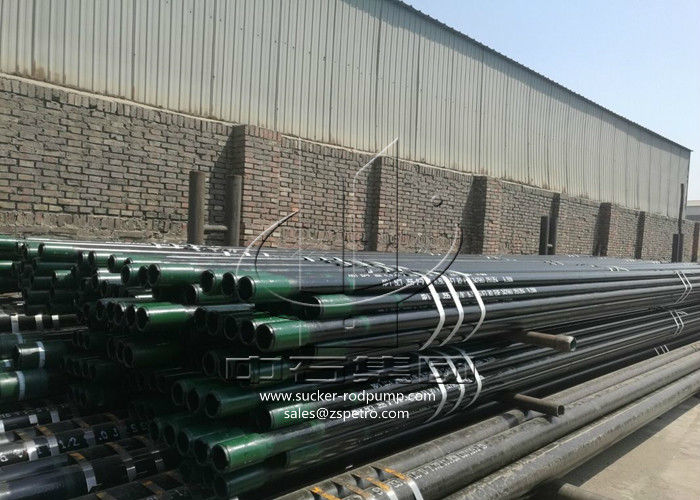

API 5CT Oilfield Tubing Pipe With Alloy Steel Material For Oil Production
Description of oil tubing:
Tubing is pipe used for the transportation of crude oil and natural gas from oil or gas layer to the surface
after drilling is completed. It is made to withstand the pressure generated from the extraction process.
Features:
1. Seamless oil pipe
2. Hot-rolling pipe
3. Size OD: 1.05”-4 1/2”
Technical specification:
| Spec. | O.D. | Nominal weight | Wall thickness | Upset type | ||||||||||||
| NU with thread and coupling | EU with thread and coupling | |||||||||||||||
| In | Mm | In | Kg/m | Lb/ft | Kg/m | Lb/ft | Mm | In | H40 | J55 | L80 | N801,Q | C90 | T95 | P110 | |
| 1.05 | 26.67 | 1.05 | 1.7 | 1.14 | 1.79 | 1.2 | 2.87 | 0.113 | NU | NU | NU | NU | NU | NU | - | |
| 1.05 | 26.67 | 1.05 | 2.2 | 1.48 | 2.29 | 1.54 | 3.91 | 0.154 | U | U | U | U | U | U | U | |
| 1.315 | 33.4 | 1.315 | 2.53 | 1.7 | 2.68 | 1.8 | 3.38 | 0.133 | NU | NU | NU | NU | NU | NU | - | |
| 1.315 | 33.4 | 1.315 | 3.26 | 2.19 | 3.33 | 2.24 | 4.55 | 0.179 | U | U | U | U | U | U | U | |
| 1.66 | 42.16 | 1.66 | 3.42 | 2.3 | 3.57 | 2.4 | 3.56 | 0.14 | NU | NU | NU | NU | NU | NU | - | |
| 1.66 | 42.16 | 1.66 | 4.51 | 3.03 | 4.57 | 3.07 | 4.85 | 0.191 | U | U | U | U | U | U | U | |
| 1.9 | 48.26 | 1.9 | 4.09 | 2.75 | 4.32 | 2.9 | 3.68 | 0.145 | NU | NU | NU | NU | NU | NU | - | |
| 1.9 | 48.26 | 1.9 | 5.43 | 3.65 | 5.55 | 3.73 | 5.08 | 0.2 | U | U | U | U | U | U | U | |
| 2 3/8 | 60.32 | 2.375 | 5.95 | 4 | - | - | 4.24 | 0.167 | U | N | N | N | N | N | - | |
| 2 3/8 | 60.32 | 2.375 | 6.85 | 4.6 | 6.99 | 4.7 | 4.83 | 0.19 | NU | NU | NU | NU | NU | NU | NU | |
| 2 3/8 | 60.32 | 2.375 | 8.63 | 5.8 | 8.85 | 5.95 | 6.45 | 0.254 | - | - | NU | NU | NU | NU | NU | |
| 2 3/8 | 60.32 | 2.375 | 10.94 | 7.35 | 11.09 | 7.45 | 8.53 | 0.336 | - | - | U | - | U | U | - | |
| 2 7/8 | 73.02 | 2.875 | 9.52 | 6.4 | 9.67 | 6.5 | 5.51 | 0.127 | NU | NU | NU | NU | NU | NU | NU | |
| 2 7/8 | 73.02 | 2.875 | 11.61 | 7.8 | 11.76 | 7.9 | 7.01 | 0.276 | - | - | NU | NU | NU | NU | NU | |
| 2 7/8 | 73.02 | 2.875 | 12.8 | 8.6 | 12.95 | 8.7 | 7.82 | 0.308 | - | - | NU | NU | NU | NU | NU | |
| 2 7/8 | 73.02 | 2.875 | 13.91 | 9.35 | 14.06 | 9.45 | 8.64 | 0.34 | - | - | U | - | U | U | - | |
| 3 1/2 | 88.9 | 3.5 | 11.46 | 7.7 | - | - | 5.49 | 0.216 | N | N | N | N | N | N | - | |
| 3 1/2 | 88.9 | 3.5 | 13.69 | 9.2 | 13.84 | 9.3 | 6.45 | 0.254 | NU | NU | NU | NU | NU | NU | NU | |
| 3 1/2 | 88.9 | 3.5 | 15.18 | 10.2 | - | - | 7.34 | 0.289 | N | N | NU | N | N | N | - | |
| 3 1/2 | 88.9 | 3.5 | 18.9 | 12.7 | 19.27 | 12.95 | 9.52 | 0.375 | - | - | NU | NU | NU | NU | NU | |
| 4 | 101.6 | 4 | 14.14 | 9.5 | - | - | 5.74 | 0.226 | N | N | N | N | N | N | - | |
| 4 | 101.6 | 4 | - | - | 16.37 | 11 | 6.65 | 0.262 | U | U | U | U | U | U | - | |
| 4 1/2 | 114.3 | 4.5 | 18.75 | 12.6 | 18.97 | 12.75 | 6.88 | 0.271 | NU | NU | NU | NU | NU | NU | - | |
Mechanical properties:
| Standard | Steel grade | Tensil Strength(Mpa) | Yeild Strength(Mpa) | Elongation(%) |
| API 5CT | J55 | ≥517 | 379~552 | 0.5% |
| API 5CT | K55 | ≥655 | 379~552 | 0.5% |
| API 5CT | N80 | ≥689 | 552~758 | 0.5% |
| API 5CT | L80 | ≥655 | 552~655 | 0.5% |
| API 5CT | P110 | ≥862 | 758~965 | 0.6% |
