Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API 5CT, ISO, QHSE
Model Number: 1.05"-4 1/2"
Payment & Shipping Terms
Minimum Order Quantity: 1 metric ton
Price: Negotiable

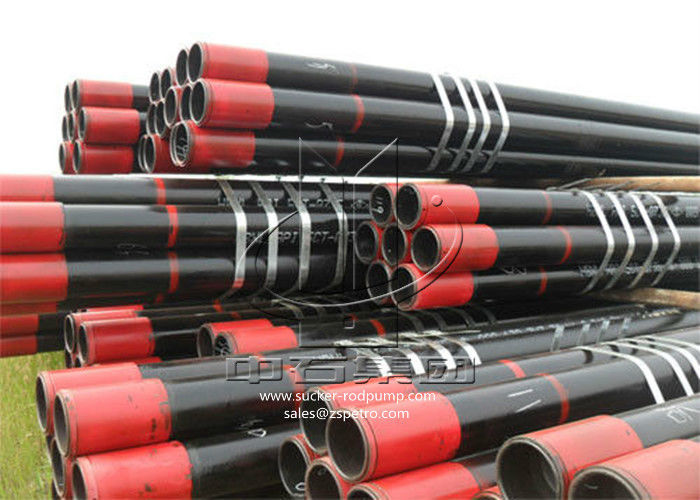

Packaging Details: Be bundled by steel strap
Payment Terms: T/T, L/C
Material: |
Alloy Steel |
Steel Grade: |
J55, K55, L80, N80, P110, P110-13Cr |
Standard: |
API 5CT |
Shape Of Section: |
Round |
Size OD: |
1.05"- 4 1/2" |
Application: |
Oil Drilling |
Material: |
Alloy Steel |
Steel Grade: |
J55, K55, L80, N80, P110, P110-13Cr |
Standard: |
API 5CT |
Shape Of Section: |
Round |
Size OD: |
1.05"- 4 1/2" |
Application: |
Oil Drilling |
| Standard | API 5CT/ ISO11960 | |
| Grade | Group.1 | H40/PSL.1, J55/PSL.1, J55/PSL.2, J55/PSL.3, K55/PSL.1, K55/PSL.2, K55/PSL.3, |
| N80(1)/PSL.1, N80(1)/PSL.2, N80(Q)/PSL.1, N80(Q)/PSL.2, N80(Q)/PSL.3 | ||
| Group.2 |
M65/PSL.1, M65/PSL.3, L80/PSL.2, L80(1)/PSL.1, L80(1)/PSL.3, L80(9Cr)/PSL.1, L80(13Cr)/PSL.1, C90/PSL.1, C90/PSL.2, C90/PSL.3, T95/PSL.1, T95/PSL.2T95/PSL.3 |
|
| Group.3 | P110/PSL.1, P110/PSL.2, P110/PSL.3, | |
| Group.4 | Q125/PSL.1, Q125/PSL.2, Q125/PSL.3, | |
| OD | Tubing | 1.66 inch to 4 1/2 inch or 42.16mm to 114.3mm |
| Casing | 4 1/2 inch to 20 inch or 114.3mm to 508mm | |
| Wall Thickness | According to API 5CT Standard | |
| Length | Tubing | R1 (6.10m to 7.32m), R2 (8.53m to 9.75m), R3 (11.58m to 12.80m) |
| Casing | R1 (4.88m to 7.62m), R2 (7.62m to 10.36m), R3 (10.36m to 14.63m) | |
| Type | Seamless | |
| End-Finish | Tubing | P, I, N, U |
| Casing | P, S, B, L | |
Dimension Tolerances:
| Tolerance | ||
| Outside Diameter | Pipe Body | D≤101.60mm,±0.79mm |
| D≥114.30mm,+1.0%, -0.5%D | ||
| Coupling | ±1%D | |
| Wall Thickness | 0, -12.5%t | |
| Weight | Single Lengths | +6.5%,-3.5% |
| ≥18144 kg(40000ib),0,-1.75% | ||
| Carload Lots or Order Quantity | ＜18144 kg(40000ib),0,-3.5% |
