Oil Extraction Well Pump Tubing

Name: Oil Extraction Well Pump Tubing
Brand: Puyang Zhongshi Group Co., Ltd.
SKU: Tubing Pump
Price: 19,500.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API ,ISO ,QHSE

Model Number: Tubing Pump

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: exported packing

Delivery Time: 2weeks

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 1000pcs

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                plunger oil pump, deep well pump


Name:	Tubing Pump	Usage:	Oil Extraction
Brand Name:	Puyang Zhongshi Group	Payment:	T/T
Standard:	API	Advantage:	High Performance
Delivery:	2 Weeks

Name:	Tubing Pump
Usage:	Oil Extraction
Brand Name:	Puyang Zhongshi Group
Payment:	T/T
Standard:	API
Advantage:	High Performance
Delivery:	2 Weeks

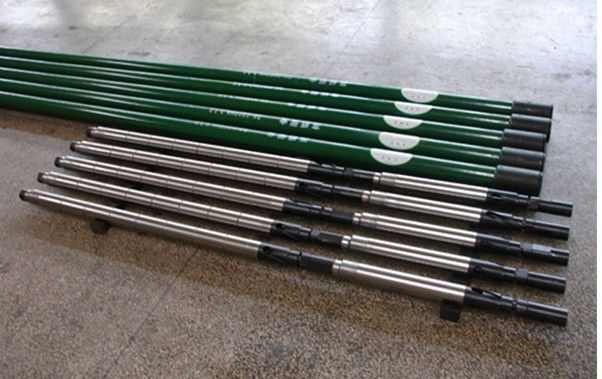

Oil Extraction Well Pump Tubing

High Performance Oil Extraction API Tubing Pump

Product Details:

Place of Origin:	China
Brand Name:	BSD
Certification:	API
Price:	7USD/ft
Packaging Details:	according cilents's demands
Delivery Time:	within 30days
Payment Terms:	T/T
Supply Ability:	1000000000ft/month
Minimum Order Quantity:	10000ft

The work over process of tubing pump is: firstly the barrel being connected to the tubing is directly run into the well at desired depth and then the plunger is run into the barrel with the sucker rod. The applicable tubing pump is larger in size than rod pump in the same tubing. Tubing pump has simple structure so the displacement is bigger and it is suitable for the shallower well with shallow depth and high production.

The THD type of tubing pump means that its standing valve is directly connected to the barrel and it cannot be pulled up separately with the barrel. The THC or THM type of tubing pump means that its standing valve can be pulled up separately with the barrel. The seating assembly of THC pump is cup type and for THM is mechanical type. The THC and THM type of tubing pump are suitable for the frequently work-over wells.

Specifications Of Tubing Pump

Model	mm(in)Nominal Dia.	m(ft)Plunger Length	Stroke m	m3/d Pump Constant	Tubing And Thread	In Sucker Rod
20-125TH	32(1.25)	1.2-1.8 (4-6)	0.6-7.3	1.14	2⅜NU/EU	¾
25-125TH	32(1.25)		0.6-7.3	1.14	2⅞NU/EU	¾
20-150TH	38(1.50)		0.6-7.3	1.64	2⅜NU/EU	¾
25-150TH	38(1.50)		0.6-7.3	1.64	2⅞NU/EU	¾
20-175TH	44(1.75)		0.6-7.3	2.24	2⅜NU/EU	¾
25-175TH	44(1.75)		0.6-7.3	2.24	2⅞NU/EU	¾
25-225TH	57(2.25)		0.6-7.3	3.69	2⅞NU/EU	¾
30-275TH	70(2.75)		0.6-7.3	5.50	3½NU/EU	⅞
35-325TH	83(3.25)		0.6-7.3	7.70	4NU/EU	⅞
40-375TH	95(3.75)		0.6-7.3	10.26	4½NU/EU	1
