Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: API
Model Number: 4 1/2"-20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Metal or wooden case
Delivery Time: 25 work days
Payment Terms: T/T
Supply Ability: 10000Meters/month
Features: |
API Low Pressure Filter Press |
Standard: |
API 5CT |
Material: |
Alloy Steel |
Weight (KG): |
650 |
Processing Type: |
Hot Rolled |
Structure: |
Seamless |
Steel Grade: |
K55/J55/N80/L80/P110 |
Condition: |
New |
Application: |
Oilfield Supply |
Certifications: |
NSF/ANSI-14 |
Connection Type: |
Threaded |
Flexibility: |
Rigid |
Features: |
API Low Pressure Filter Press |
Standard: |
API 5CT |
Material: |
Alloy Steel |
Weight (KG): |
650 |
Processing Type: |
Hot Rolled |
Structure: |
Seamless |
Steel Grade: |
K55/J55/N80/L80/P110 |
Condition: |
New |
Application: |
Oilfield Supply |
Certifications: |
NSF/ANSI-14 |
Connection Type: |
Threaded |
Flexibility: |
Rigid |

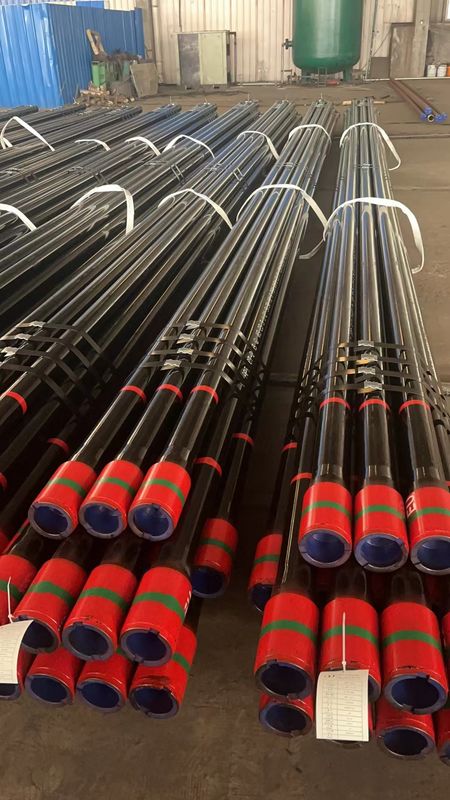

Oilfield 13 3/8" Seamless Casing Pipe With Steel Grades K55 J55 N80 L80 P110
API 5CT Oilfield Tubing or Casing Pup Joint/ Nipples with Couplings
1. Introduction of pup joint
The pup joint is fixed length tubing or casing. The thread is EUE, NUE. The Length is from 1feet to 10feet.
2. Specification
3. Property of material
| Production name | OCTG 11-3/4" API 5CT steel casing pipe |
| OD size (in) | 4-1/2" ~ 20" |
| Steel grade | J55/K55/N80/L80/P110 |
| Thread type | LTC,STC,BTC |
| Length | R1 (4.88mtr-7.62mtr) R2 (7.63mtr-10.36mtr) R3 (10.37mtr-14.63mtr) |
| Heat treatment | Normalized,Quencher+Temper |
Mechanical properties of casing pipe:
| Grade | Yield Strength | Tensile Strenght | Hardness | Allowable | |||||
| Min | Max | Min | Max | Max | Hardness | ||||
| Psi | Mpa | Psi | Mpa | Psi | Mpa | HRC | BHN | Variation | |
| J55 | 55,000 | 379 | 80,000 | 552 | 75,000 | 517 | - | - | - |
| K55 | 55,000 | 379 | 88,000 | 552 | 95,000 | 655 | - | - | - |
| N80 | 80,000 | 552 | 110,000 | 758 | 100,000 | 689 | - | - | - |
| N80-1 | 80,000 | 552 | 95,000 | 655 | 95,000 | 655 | 23 | 241 | - |
| C90 | 90,000 | 621 | 105,000 | 724 | 100,000 | 689 | 25.4 | 255 | 3 |
| C95 | 95,000 | 655 | 110,000 | 758 | 105,000 | 724 | - | - | - |
| T95 | 95,000 | 655 | 110,000 | 758 | 105,000 | 724 | 25.4 | 255 | 3 |
| P110 | 110,000 | 758 | 140,000 | 965 | 125,000 | 862 | - | - | - |
Puyang Zhongshi Group Co., Ltd was established in 1997 and has since become a leading manufacturer of various oilfield equipment and cementing accessories. As a restructured enterprise of SINOPEC, we boast over 10 years of solid export experience and 9 subsidiary factories, with a dedicated workforce of over 500 employees.
Renowned as a first-class supplier in the resources market of SINOPEC and CNPC, we hold prestigious certifications including API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001, and ISO 14001. Our products are highly sought after by clients in America, Central Asia, Russia, Southeast Asia, and the Middle East, solidifying our strong presence in the global market.
