Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: IOS,API
Model Number: 4 1/2"-20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Metal or wooden case
Delivery Time: 20 work days
Payment Terms: T/T
Supply Ability: 10000sets/month
Type: |
Torque Anchor |
Material: |
Alloy Steel |
Connection: |
2 3/8", 2 7/8", 3 1/2", 4 1/2" EU/NU |
Processing Type: |
Forging |
Bend Radius: |
2 In |
Burst Pressure: |
600 Psi |
Color: |
Silver |
Finish: |
Polished |
Type: |
Torque Anchor |
Material: |
Alloy Steel |
Connection: |
2 3/8", 2 7/8", 3 1/2", 4 1/2" EU/NU |
Processing Type: |
Forging |
Bend Radius: |
2 In |
Burst Pressure: |
600 Psi |
Color: |
Silver |
Finish: |
Polished |

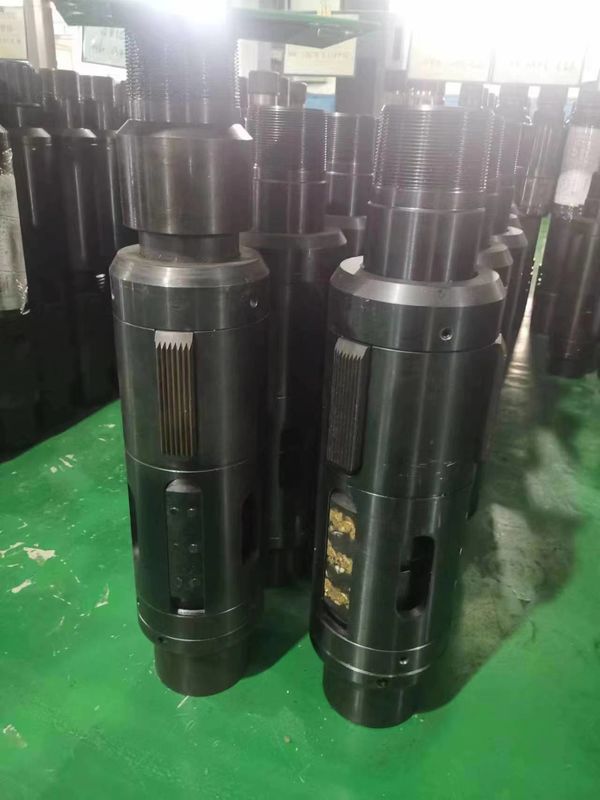

Description of tubing Anchor:
Mainly used for 5-1/2 casing, rotating the tubing for oil drain operation. This kind of tubing anchor compared with the existing tubing anchor has the following advantages: The other tool which are under the lower joint do not effect on the cone, and the cone do not bear axial force. When rotating the tubing in the well operation, the cone is easy to screw together on the upper part of the inner pipe, and realize the oil drain and unlocking anchor smoothly.
1. Threaded connection: 2-7/8TBG;
2. Pin standoff: 0.2mm;
3. Box standoff: 5.4mm;
4. Max OD of steel body: 114mm;
5. Material: 45# steel, 20Cr; ;
6. Working Pressure: ≤25MPa
Specification of tubing anchor:
| Casing size (inch) | Anchor body OD (mm) | Actual anchor OD (mm) | Torque anchor ID (mm) | Connections (inch) |
| 4-1/2” | 92.2 | 92.2 | 50.8 | 2-3/8”EU |
| 5-1/2” | 112.8 | 108.0 | 62.0 | 2-7/8”EU |
| 6-5/8” | 138.4 | 133.4 | 62.0 | 2-7/8”EU |
| 7” | 148 | 143.0 | 76.0 | 3-1/2”EU |
| 9-5/8” | 190 | 209.6 | 100.5 | 4-1/2”EU |
