Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API 5CT, ISO, QHSE
Model Number: 1.05"-4 1/2"
Payment & Shipping Terms
Minimum Order Quantity: 1 metric ton
Price: Negotiable
Packaging Details: Be bundled by steel strap
Payment Terms: T/T, L/C
Technique: |
Hot Rolled |
Section Shape: |
Round |
Material: |
Alloy Steel |
Secondary Or Not: |
Non-secondary |
Application: |
Oil Drilling |
Size OD: |
1.05”-4 1/2” |
Technique: |
Hot Rolled |
Section Shape: |
Round |
Material: |
Alloy Steel |
Secondary Or Not: |
Non-secondary |
Application: |
Oil Drilling |
Size OD: |
1.05”-4 1/2” |

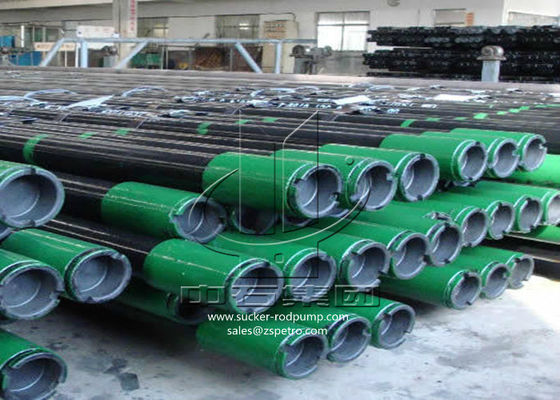

New Oilfield Tubing Pipe With Quality Alloy Steel Material In Oil And Gas Well
Tubing description:
Oil casing and tubing are the oil well pipes, which is produced by hot-rolling technique.
Features:
1. Seamless oil pipe
2. Hot-rolling pipe
3. Size OD: 1.05”-4 1/2”
Technical specification:
Spec. | O.D. | Nominal weight | Wall thickness | Upset type | ||||||||||||
NU with thread and coupling | EU with thread and coupling | |||||||||||||||
In | Mm | In | Kg/m | Lb/ft | Kg/m | Lb/ft | Mm | In | H40 | J55 | L80 | N801,Q | C90 | T95 | P110 | |
1.05 | 26.67 | 1.05 | 1.7 | 1.14 | 1.79 | 1.2 | 2.87 | 0.113 | NU | NU | NU | NU | NU | NU | - | |
1.05 | 26.67 | 1.05 | 2.2 | 1.48 | 2.29 | 1.54 | 3.91 | 0.154 | U | U | U | U | U | U | U | |
1.315 | 33.4 | 1.315 | 2.53 | 1.7 | 2.68 | 1.8 | 3.38 | 0.133 | NU | NU | NU | NU | NU | NU | - | |
1.315 | 33.4 | 1.315 | 3.26 | 2.19 | 3.33 | 2.24 | 4.55 | 0.179 | U | U | U | U | U | U | U | |
1.66 | 42.16 | 1.66 | 3.42 | 2.3 | 3.57 | 2.4 | 3.56 | 0.14 | NU | NU | NU | NU | NU | NU | - | |
1.66 | 42.16 | 1.66 | 4.51 | 3.03 | 4.57 | 3.07 | 4.85 | 0.191 | U | U | U | U | U | U | U | |
1.9 | 48.26 | 1.9 | 4.09 | 2.75 | 4.32 | 2.9 | 3.68 | 0.145 | NU | NU | NU | NU | NU | NU | - | |
1.9 | 48.26 | 1.9 | 5.43 | 3.65 | 5.55 | 3.73 | 5.08 | 0.2 | U | U | U | U | U | U | U | |
2 3/8 | 60.32 | 2.375 | 5.95 | 4 | - | - | 4.24 | 0.167 | U | N | N | N | N | N | - | |
2 3/8 | 60.32 | 2.375 | 6.85 | 4.6 | 6.99 | 4.7 | 4.83 | 0.19 | NU | NU | NU | NU | NU | NU | NU | |
2 3/8 | 60.32 | 2.375 | 8.63 | 5.8 | 8.85 | 5.95 | 6.45 | 0.254 | - | - | NU | NU | NU | NU | NU | |
2 3/8 | 60.32 | 2.375 | 10.94 | 7.35 | 11.09 | 7.45 | 8.53 | 0.336 | - | - | U | - | U | U | - | |
2 7/8 | 73.02 | 2.875 | 9.52 | 6.4 | 9.67 | 6.5 | 5.51 | 0.127 | NU | NU | NU | NU | NU | NU | NU | |
2 7/8 | 73.02 | 2.875 | 11.61 | 7.8 | 11.76 | 7.9 | 7.01 | 0.276 | - | - | NU | NU | NU | NU | NU | |
2 7/8 | 73.02 | 2.875 | 12.8 | 8.6 | 12.95 | 8.7 | 7.82 | 0.308 | - | - | NU | NU | NU | NU | NU | |
2 7/8 | 73.02 | 2.875 | 13.91 | 9.35 | 14.06 | 9.45 | 8.64 | 0.34 | - | - | U | - | U | U | - | |
3 1/2 | 88.9 | 3.5 | 11.46 | 7.7 | - | - | 5.49 | 0.216 | N | N | N | N | N | N | - | |
3 1/2 | 88.9 | 3.5 | 13.69 | 9.2 | 13.84 | 9.3 | 6.45 | 0.254 | NU | NU | NU | NU | NU | NU | NU | |
3 1/2 | 88.9 | 3.5 | 15.18 | 10.2 | - | - | 7.34 | 0.289 | N | N | NU | N | N | N | - | |
3 1/2 | 88.9 | 3.5 | 18.9 | 12.7 | 19.27 | 12.95 | 9.52 | 0.375 | - | - | NU | NU | NU | NU | NU | |
4 | 101.6 | 4 | 14.14 | 9.5 | - | - | 5.74 | 0.226 | N | N | N | N | N | N | - | |
4 | 101.6 | 4 | - | - | 16.37 | 11 | 6.65 | 0.262 | U | U | U | U | U | U | - | |
4 1/2 | 114.3 | 4.5 | 18.75 | 12.6 | 18.97 | 12.75 | 6.88 | 0.271 | NU | NU | NU | NU | NU | NU | - |
Mechanical properties:
steel grade | type | total elongation under load (%) |
yield strength (Mpa) |
tensile strength (Mpa) min |
hardness max |
||
min | max | HRC | HBW | ||||
H40 | - | 0.5 | 276 | 552 | 414 | - | - |
J55 | - | 0.5 | 379 | 552 | 517 | - | - |
K55 | - | 0.5 | 379 | 552 | 655 | - | - |
N80 | 1 | 0.5 | 552 | 758 | 689 | - | - |
N80 | Q | 0.5 | 552 | 758 | 689 | - | - |
M65 | - | 0.5 | 448 | 586 | 586 | 22 | 235 |
L80 | 1 | 0.5 | 552 | 655 | 655 | 23 | 241 |
L80 | 9 Cr | 0.5 | 552 | 655 | 655 | 23 | 241 |
L80 | 13 Cr | 0.5 | 552 | 655 | 655 | 23 | 241 |
C90 | 1 | 0.5 | 621 | 724 | 689 | 25.4 | 255 |
P110 | - | 0.6 | 758 | 965 | 862 | - |
- |
