Product Details:
Payment & Shipping Terms:
|
Material: | Alloy Steel | Steel Grade: | J55, K55, L80, N80, P110, P110-13Cr |
---|---|---|---|
Structure: | Seamless | Processing: | Hot-rolled |
Standard: | API 5CT | Application: | Oil Industry |
High Light: | L80 Oilfield Tubing Pipe,PSL3 Oilfield Tubing Pipe,4 1/2" Well Drilling Pipe |

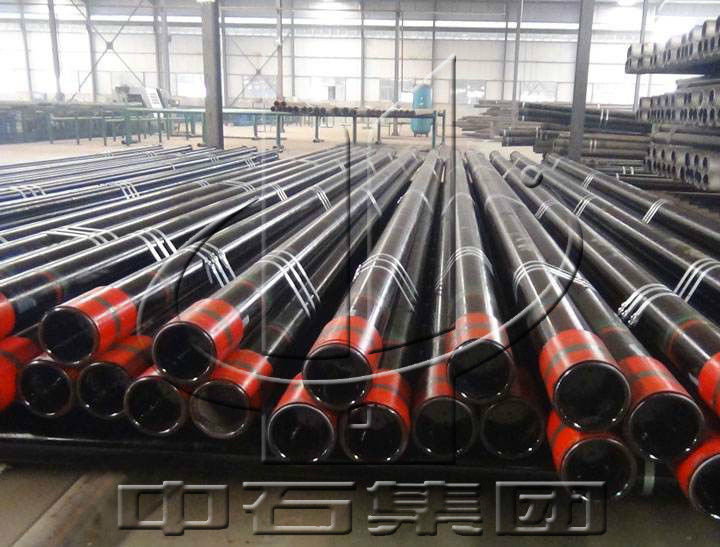

PSL1 PSL2 PSL3 L80 Steel Grade Oilfield Tubing Pipe
Description of oil tubing:
Tubing is pipe used for the transportation of crude oil and natural gas from oil or gas layer to the surface
after drilling is completed. It is made to withstand the pressure generated from the extraction process.
Features:
1. Seamless oil pipe
2. Hot-rolling pipe
3. Size OD: 1.05”-4 1/2”
Technical specification:
Spec. | O.D. | Nominal weight | Wall thickness | Upset type | ||||||||||||
NU with thread and coupling | EU with thread and coupling | |||||||||||||||
In | Mm | In | Kg/m | Lb/ft | Kg/m | Lb/ft | Mm | In | H40 | J55 | L80 | N801,Q | C90 | T95 | P110 | |
1.05 | 26.67 | 1.05 | 1.7 | 1.14 | 1.79 | 1.2 | 2.87 | 0.113 | NU | NU | NU | NU | NU | NU | - | |
1.05 | 26.67 | 1.05 | 2.2 | 1.48 | 2.29 | 1.54 | 3.91 | 0.154 | U | U | U | U | U | U | U | |
1.315 | 33.4 | 1.315 | 2.53 | 1.7 | 2.68 | 1.8 | 3.38 | 0.133 | NU | NU | NU | NU | NU | NU | - | |
1.315 | 33.4 | 1.315 | 3.26 | 2.19 | 3.33 | 2.24 | 4.55 | 0.179 | U | U | U | U | U | U | U | |
1.66 | 42.16 | 1.66 | 3.42 | 2.3 | 3.57 | 2.4 | 3.56 | 0.14 | NU | NU | NU | NU | NU | NU | - | |
1.66 | 42.16 | 1.66 | 4.51 | 3.03 | 4.57 | 3.07 | 4.85 | 0.191 | U | U | U | U | U | U | U | |
1.9 | 48.26 | 1.9 | 4.09 | 2.75 | 4.32 | 2.9 | 3.68 | 0.145 | NU | NU | NU | NU | NU | NU | - | |
1.9 | 48.26 | 1.9 | 5.43 | 3.65 | 5.55 | 3.73 | 5.08 | 0.2 | U | U | U | U | U | U | U | |
2 3/8 | 60.32 | 2.375 | 5.95 | 4 | - | - | 4.24 | 0.167 | U | N | N | N | N | N | - | |
2 3/8 | 60.32 | 2.375 | 6.85 | 4.6 | 6.99 | 4.7 | 4.83 | 0.19 | NU | NU | NU | NU | NU | NU | NU | |
2 3/8 | 60.32 | 2.375 | 8.63 | 5.8 | 8.85 | 5.95 | 6.45 | 0.254 | - | - | NU | NU | NU | NU | NU | |
2 3/8 | 60.32 | 2.375 | 10.94 | 7.35 | 11.09 | 7.45 | 8.53 | 0.336 | - | - | U | - | U | U | - | |
2 7/8 | 73.02 | 2.875 | 9.52 | 6.4 | 9.67 | 6.5 | 5.51 | 0.127 | NU | NU | NU | NU | NU | NU | NU | |
2 7/8 | 73.02 | 2.875 | 11.61 | 7.8 | 11.76 | 7.9 | 7.01 | 0.276 | - | - | NU | NU | NU | NU | NU | |
2 7/8 | 73.02 | 2.875 | 12.8 | 8.6 | 12.95 | 8.7 | 7.82 | 0.308 | - | - | NU | NU | NU | NU | NU | |
2 7/8 | 73.02 | 2.875 | 13.91 | 9.35 | 14.06 | 9.45 | 8.64 | 0.34 | - | - | U | - | U | U | - | |
3 1/2 | 88.9 | 3.5 | 11.46 | 7.7 | - | - | 5.49 | 0.216 | N | N | N | N | N | N | - | |
3 1/2 | 88.9 | 3.5 | 13.69 | 9.2 | 13.84 | 9.3 | 6.45 | 0.254 | NU | NU | NU | NU | NU | NU | NU | |
3 1/2 | 88.9 | 3.5 | 15.18 | 10.2 | - | - | 7.34 | 0.289 | N | N | NU | N | N | N | - | |
3 1/2 | 88.9 | 3.5 | 18.9 | 12.7 | 19.27 | 12.95 | 9.52 | 0.375 | - | - | NU | NU | NU | NU | NU | |
4 | 101.6 | 4 | 14.14 | 9.5 | - | - | 5.74 | 0.226 | N | N | N | N | N | N | - | |
4 | 101.6 | 4 | - | - | 16.37 | 11 | 6.65 | 0.262 | U | U | U | U | U | U | - | |
4 1/2 | 114.3 | 4.5 | 18.75 | 12.6 | 18.97 | 12.75 | 6.88 | 0.271 | NU | NU | NU | NU | NU | NU | - |
Mechanical properties:
Standard | Steel grade | Tensil Strength(Mpa) | Yeild Strength(Mpa) | Elongation(%) |
API 5CT | J55 | ≥517 | 379~552 | 0.5% |
API 5CT | K55 | ≥655 | 379~552 | 0.5% |
API 5CT | N80 | ≥689 | 552~758 | 0.5% |
API 5CT | L80 | ≥655 | 552~655 | 0.5% |
API 5CT | P110 | ≥862 | 758~965 | 0.6% |
