Product Name: | Sucker Rod Pump | Machine Type: | Petroleum Machinery |
---|---|---|---|
Application: | Petroleum Production | Color: | Required |
Usage: | Oil Field | Type: | Sucker Rod,Rod Pump |
Material: | Carbon Steel | Manufacturer: | Puyang Zhongshi Group |
High Light: | Length 1.5m Sucker Rod Pump,API Certified Sucker Rod Pump,Length 1.5m suker rod pump |
API Certified Stroke Length 6-1.5m Sucker Rod Pump
Sucker Rod Pump Product description
operating principle of rod pumps:Rod pump is equipped with a supporting joint , support joint is connected on the tubing, rod pump plunger is connected on the sucker rod string, and is fixed on the supporting joint through the sucker rod string to the tubing , the plunger along with the sucker rod string’s up and down reciprocating movement achieve pumping work. When pump appear quality problem, you needn't put forward tubing. Only through the sucker rod pull the whole pump from the well and operation is simple.
Sucker Rod Pump Technical Specifications
Type of Pump |
Main parameters | |||||
Pump diameter specifications (mm) |
Barrel length (m) |
Stroke length (m) |
Extension (m) |
tubing thread |
rod
|
|
Rod Pumps |
Ø31.8 |
2.1 2.4 2.7 3.0 3.3 3.6 3.9 4.2 4.5 4.8 5.7 6.0 7.3 8.0 9.1 |
1.5 ∣ 6
|
0.3
0.6
0.9 |
2-3/8” | CYG16 |
Feature
1. Stable performance, high pumping efficiency.
2. Not affected by the tubing string, the service life is longer.
3. Suitable for high temperature, corrosion, sand and less gas well conditions.
It can be design according to the customer’s requirements.

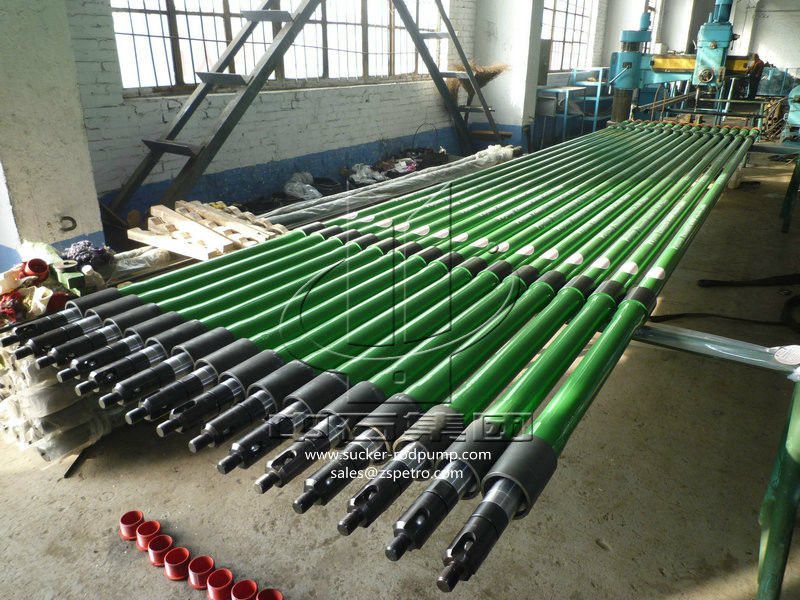

Sucker Rod Pump Pictures
