API 11AX Standard Cup Top Anchor Srp Pump

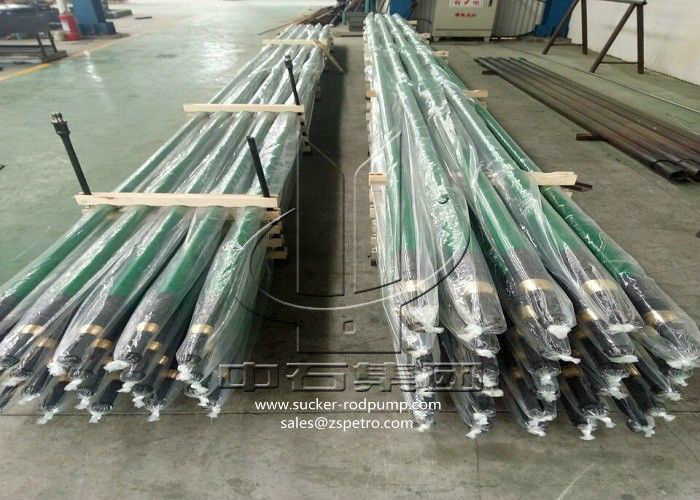

Large Image : API 11AX Standard Cup Top Anchor Srp Pump

Product Details:

Place of Origin:	China
Brand Name:	Zhongshi
Certification:	API, ISO, QHSE
Model Number:	RHAC

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard exported packing
Delivery Time:	10~15 workdays
Payment Terms:	L/C, D/P, T/T, Western Union, D/A
Supply Ability:	1000 SETS/MONTH

Contact Now

Detailed Product Description

Product Name:	Sucker Rod Pump	Processing Type:	Casting
Machine Type:	Petroleum Machinery	Application:	Oil Production
Color:	Required	Well Conditions:	Common Well Conditions
Main Parts Material:	Carbon Steel, AISI 1045
High Light:	Top Anchor Srp Pump , API 11AX Srp Pump , API 11AX linear rod pump

API 11AX Standard Cup Top Anchor Sucker Rod Pump

Cup top anchor rod pump Description

Sucker rod pump; tubing pump

Comparing with conventional tubing pump, The API sucker rod pump and tubing Pump has better performance in corrosion resistance & antifriction aspects. Plunger of it is nickel plated on alloy base, inside wall of barrel is plated hard cadmium, key parts, such as valve hood, valve ball, are made of materials with excellent mechanical performance and corrosion resistant property. Compared with conventional pump, the series of pump has a longer working life.

The tubing pump means that its standing valve is directly connected to the barrel and it cannot be pulled up separately with the barrel. The THC or THM type of tubing pump means that its standing valve can be pulled up separately with the barrel. The seating assembly of THC pump is cup type and for THM is mechanical type. The THC and THM type of tubing pump are suitable for the frequently work-over wells.

Sucker Rod Pump Product Models and Specifications:

Model	mm(in) Nominal Dia.	m(ft)Plunger Length	Stroke m	m3/d Pump Constant	Tubing And Thread	In Sucker Rod
20-125TH	32(1.25)	1.2-1.8 (4-6)	0.6-7.3	1.14	27/8NU/EU	¾
20-125RHAC/M	32(1.25)		0.6-7.3	1.14	27/8NU/EU	¾
20-125RHBC/M	32(1.25)		0.6-7.3	1.14	27/8NU/EU	¾
20-125RHTC/M	32(1.25)		0.6-7.3	1.14	27/8NU/EU	¾
25-125TH	32(1.25)		0.6-7.3	1.14	27/8NU/EU	¾
25-150RHAC/M	38(1.50)		0.6-7.3	1.64	27/8NU/EU	¾
25-150RHBC/M	38(1.50)		0.6-7.3	1.64	27/8NU/EU	¾
25-150RHTC/M	38(1.50)		0.6-7.3	1.64	27/8NU/EU	¾
20-150TH	38(1.50)		0.6-7.3	1.64	27/8NU/EU	¾
25-150TH	38(1.50)		0.6-7.3	1.64	27/8NU/EU	¾
20-175TH	44(1.75)		0.6-7.3	2.24	27/8NU/EU	¾
25-175RHAC/M	44(1.75)		0.6-7.3	2.24	27/8	¾
25-175RHBC/M	44(1.75)		0.6-7.3	2.24	27/8NU/EU	¾
25-175RHTC/M	44(1.75)		0.6-7.3	2.24	27/8NU/EU	¾
25-175TH	44(1.75)		0.6-7.3	2.24	27/8NU/EU	¾
25-225TH	57(2.25)		0.6-7.3	3.69	27/8NU/EU	¾
30-275TH	70(2.75)		0.6-7.3	5.50	3½NU/EU	7/8
30-225RHAC/M	57(2.25)		0.6-7.3	3.69	3½ NU/EU	¾
30-225RHBC/M	57(2.25)		0.6-7.3	3.69	3½ NU/EU	¾
30-225RHTC/M	57(2.25)		0.6-7.3	3.69	3½ NU/EU	¾
35-325TH	83(3.25)		0.6-7.3	7.70	4NU/EU	7/8
40-375TH	95(3.75)		0.6-7.3	10.26	4½NU/EU	1

Sucker Rod Pump Features

It is suitable for corrosion and small amount of sand and gas, deep Wells, such as complex well conditions, the use of safe, stable performance and wide application.
Under operation easy to operate, economical and practical, it can reduce oil field operation cost by more than 30%.
API principal operations.
