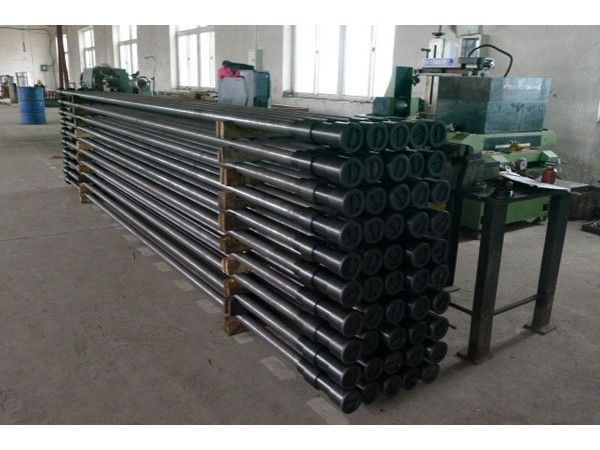

20-125 Small Sized Oilfield Sucker Rods RH And RW Series

20-125 Small Sized Oilfield Sucker Rods RH And RW Series
20-125 Small Sized Oilfield Sucker Rods RH And RW Series

Large Image :  20-125 Small Sized Oilfield Sucker Rods RH And RW Series

Product Details:

Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: Sucker rod pump

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Detailed Product Description
Size: Small Sized Model: 20-125
Pump Type: Sucker Rod Pump Configuration: Inserted Rod Pump
Series1: RH Series2: RW
Plunger: Spray Metal Plunger Usage: Oilfield
High Light:

125 Oilfield Sucker Rods


20 Oilfield Sucker Rods


RH Sucker Rod Pump

20-125 Small Sized RH And RW Series Rod Insert Pump


RH and RW series sucker rod pump description:


API recognizes two main types of pumps: rod and tubing. Rod pumps also are called insert pumps because they are run (inserted) in the production tubing. Tubing pumps are so named because the working barrel of this pump is coupled with the production-tubing string.


The SRP companies have improved the operation of the whole system including pump-off controllers, better gas separation, gas and solids handling pumps and optimization using surface and bottom-hole cards. Because its wide operation range and adaptability of the system to others wells with minimum cost becomes a economically attractive solution for oilfield development.


Built with bottom or top hold downs
Available with 3 cup seating assembly or mechanical hold down with 443 Brass or 440C SS
Precision barrels up to 40'
Barrels available in Hardened & Honed, Chrome plated, 443 Brass, and Nickel Carbide
Manufactured with spray metal plunger

Technical parameters:


Model Pump diameter (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in) Sucker rod size
20-125RHAC Ø31.75 2.1-10.4 0.3-8.0 1.2-9.0 0.3-0.9 2-3/8”

5/8" 7/8"

25-150RHAC Ø38.10 2-7/8”
25-175RHAC Ø44.45 2-7/8”
30-225RHAC Ø57.15 3-1/2”



Operation advantage:


If the pump appeared quality problem, need not put forward the tubing string, only need put the whole pump forward well through the

sucker rod string together , operation is simple.
