Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: RHAC
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Model: |
RHBM |
Anchor Type: |
Mechanical |
Anchor Location: |
Bottom |
Barrel Type: |
Stationary |
Application: |
Oil Production |
Plunger Material: |
Carbon Steel |
Model: |
RHBM |
Anchor Type: |
Mechanical |
Anchor Location: |
Bottom |
Barrel Type: |
Stationary |
Application: |
Oil Production |
Plunger Material: |
Carbon Steel |

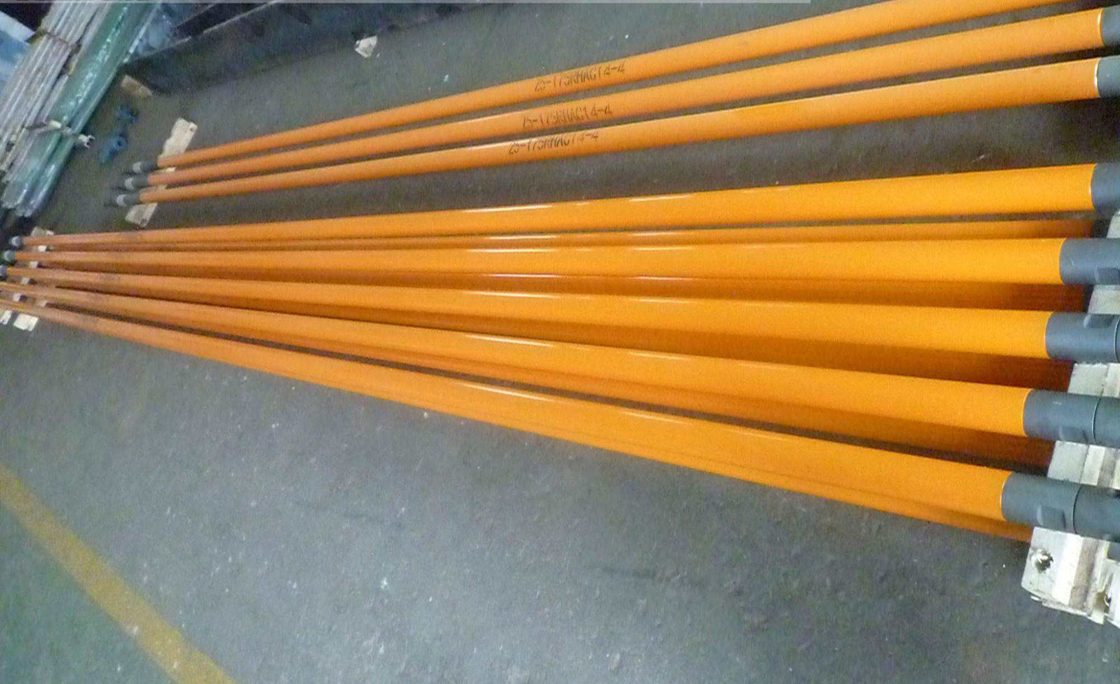

Heavy Wall Mechanical Bottom Anchor Rod insert Pump
Heavy wall mechanical bottom anchor rod insert pump description
The sucker rod inserted pump's application cover very low downhole pressure wells, slim holes, multiple completions, high temperature and viscous oil. The barrel of all the rod pump is stationary.
Useful specialty pumps include the following:
Technical parameters
| Some Models | Pump diameter (in) | Barrel length (ft) | Plunger length (ft) | Stroke length (ft) | Extension length (ft) | Tubing size EUE(in) | Sucker rod size |
| 15-106RHBC | Ø26.99 | 2.1-10.4 | 0.3-8.0 | 1.2-9.0 | 0.3-0.9 | 1.9” |
CYJ16 CYJ19 |
| 20-125RHBC | Ø31.75 | 2-3/8” | |||||
| 25-150RHBC | Ø38.10 | 2-7/8” | |||||
| 25-175RHBC | Ø44.45 | 2-7/8” | |||||
| 30-225RHBC | Ø57.15 | 3-1/2” |
Variables influence:
