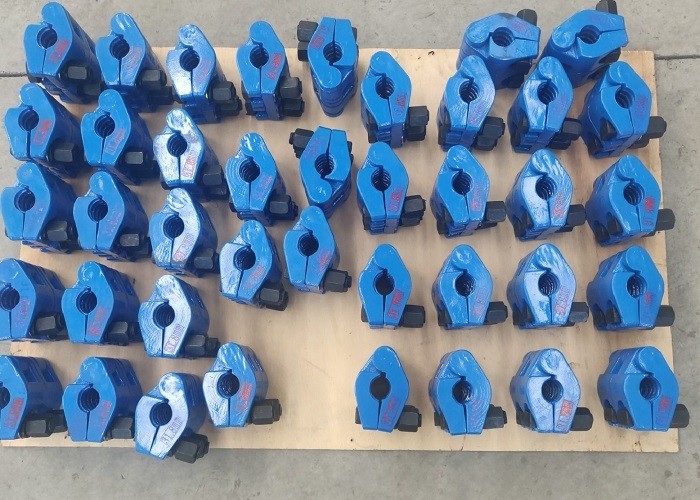

Large Image :  Alloy Steel Polished Steel Rod Clamp Oilfeild Tools

Product Details:

Place of Origin: China
Brand Name: Zhongshi
Certification: API 11B ,ISO ,QHSE
Model Number: Sucker rod clamp

Payment & Shipping Terms:

Minimum Order Quantity: Discussion
Price: Negotiable
Packaging Details: Export Packing
Delivery Time: Soonly
Payment Terms: D/P, T/T, D/A
Supply Ability: 50000 pcs per month
Detailed Product Description
Product:: Polished Rod Clip/Clamp Length: Standard
Packaging Details: As Required Sucker Rod Size: 5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-1/2"
Key Words: Rony Rod Polished Rod Clip/Clamp Material: Stainless Steel
Structures: Single ,Two Bolts,Three Bolts
High Light:

Polished Steel Rod Clamp

,

Oilfield Steel Rod Clamp

,

Alloy Steel Polished Rod Clamp

API Polished Sucker Rod Clamp Cast Forged Clip With Alloy Steel



Products Descripition:



The polished rod clamp is of butterfly structure, it is fixed on the polished rod as retaining device for the rope hanger. It makes the pumping unit horsehead connected with polished rod through rod eye lifting device,  The polished rod clamp is an important part connecting oil pump and sucker rod, it is required not only reliable, have a certain capacity, but also can not cause damage for sucker rod.



1. Chemical Composition

1. No dent, effectively reduce the damage to the polished rod and the packing of stuffing box

2. In accordance with the industry standards SY/T5029-2013 and API Spec 11B.

3. The product was awarded two utility model patent and one design patent.

4. Three models: can meet the requirements of different pump depths, polished rod sizes and loads.

5. Can be used alone, can also be used with two same model and same load to increase the working load.





2. Mechanical Properties


Tie allowable hardness range for polished rod clamps is between 190 and 300 HB



4. Specification



WL12000 single bolt Polished Rod Diameter Working load Tightening Torque Weight
22mm 78.5KN 3200N.m 5.6Kg
25mm 100KN 5.5Kg
25.4mm (1in) 100KN 5.5Kg
28.6mm (1 1/8in) 118KN 5.5Kg
WL16000 two bolt Polished Rod Diameter Working load Tightening Torque Weight
25.4mm (1 in) 118KN 1545N.m 7.3 Kg
28mm 157KN 7.2 Kg
28.6mm (1 1/8in) 157KN 7.2 Kg
31.8mm (1 1/4in) 157KN 7.1 Kg
32mm 157KN 7.1 Kg
38.1mm (1 1/2in) 178KN 9 Kg
WL18100 three bolt Polished Rod Diameter Working load Tightening Torque Weight
31.8mm (1 1/4in) 178 KN 1977N.m 10.35Kg
32mm 178 KN 10.35Kg
38.1mm (1 1/2in) 178 KN 10.2Kg
