Carbon Steel Structure Rod Insert Pump Chrome Plated Sucker Rod

Carbon Steel Structure Rod Insert Pump Chrome Plated Sucker Rod
Carbon Steel Structure Rod Insert Pump Chrome Plated Sucker Rod

Large Image :  Carbon Steel Structure Rod Insert Pump Chrome Plated Sucker Rod

Product Details:

Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: RHAC RHBM RHBC RWAM RWAC RWBM

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Detailed Product Description
Structure Type: Inserted Pump Model: RH And RW
Pump Type: Sucker Rod Pump Application: Oil Production
Barrel Wall Type1: Heavy Wall Barrel Wall Type2: Thin Wall
Barrel Material: Carbon Steel
High Light:

Inserted Oilfield Sucker Rod

,

Chrome Plated Sucker Rod

,

Sucker Rod Insert Pump

Chrome Plated Barrel Sucker Rod Inserted Structure Pump

Chrom plated barrel insert pump description



Puyang Zhongshi Group manufacture all subsurface pumps covered by API Spec 11AX, including all barrel and plunger materials and surface finishes.

Two basic type: Sucker rod pump; tubing pump



Comparing with conventional tubing pump, The API sucker rod pump and tubing Pump has better performance in corrosion resistance & antifriction aspects. Plunger of it is nickel plated on alloy base, inside wall of barrel is plated hard cadmium, key parts, such as valve hood, valve ball, are made of materials with excellent mechanical performance and corrosion resistant property. Compared with conventional pump, the series of pump has a longer working life.



Main parts process and material:
Pump barrel: plain carbon steel plating (A1), ordinary carbon steel carbonitriding (B1), ordinary carbon steel carburizing (B2), low alloy steel nitride (B5).
Plunger: 1045 steel spraying (B1), 1045 steel spraying (B2), 1045 steel chrome plating (A1), 1045 steel double chrome plating (A2).
Valve ball and seat: stainless steel (A1), cobalt chromium (B2), tungsten carbide (C1), nickel and carbon compounds (C2), titanium carbide (C3).
Other accessories: plain carbon steel, low alloy steel, stainless steel, brass and other materials.





Downhole rod pump technical parameters:



API models mm(in)
Nominal OD
Plunger
Length m(ft)
Stroke m Pump
Constant
m3/d
Tubing Sucker
rod size
20-125TH 32(1.25) 1.2-1.8 (4-6) 0.6-7.3 1.14 27/8NU/EU ¾
20-125RHAC/M 32(1.25) 0.6-7.3 1.14 27/8NU/EU ¾
20-125RHBC/M 32(1.25) 0.6-7.3 1.14 27/8NU/EU ¾
20-125RHTC/M 32(1.25) 0.6-7.3 1.14 27/8NU/EU ¾
25-125TH 32(1.25) 0.6-7.3 1.14 27/8NU/EU ¾
25-150RHAC/M 38(1.50) 0.6-7.3 1.64 27/8NU/EU ¾
25-150RHBC/M 38(1.50) 0.6-7.3 1.64 27/8NU/EU ¾
25-150RHTC/M 38(1.50) 0.6-7.3 1.64 27/8NU/EU ¾
20-150TH 38(1.50) 0.6-7.3 1.64 27/8NU/EU ¾
25-150TH 38(1.50) 0.6-7.3 1.64 27/8NU/EU ¾
20-175TH 44(1.75) 0.6-7.3 2.24 27/8NU/EU ¾
25-175RHAC/M 44(1.75) 0.6-7.3 2.24 27/8 ¾
25-175RHBC/M 44(1.75) 0.6-7.3 2.24 27/8NU/EU ¾
25-175RHTC/M 44(1.75) 0.6-7.3 2.24 27/8NU/EU ¾
25-175TH 44(1.75) 0.6-7.3 2.24 27/8NU/EU ¾
25-225TH 57(2.25) 0.6-7.3 3.69 27/8NU/EU ¾
30-275TH 70(2.75) 0.6-7.3 5.50 3½NU/EU 7/8
30-225RHAC/M 57(2.25) 0.6-7.3 3.69 3½ NU/EU ¾
30-225RHBC/M 57(2.25) 0.6-7.3 3.69 3½ NU/EU ¾
30-225RHTC/M 57(2.25) 0.6-7.3 3.69 3½ NU/EU ¾
35-325TH 83(3.25) 0.6-7.3 7.70 4NU/EU 7/8
40-375TH 95(3.75) 0.6-7.3 10.26 4½NU/EU 1



Downhole rod pump features:



1. Inserted type configuration

2. Tubing pump is suitable for large volume oil production

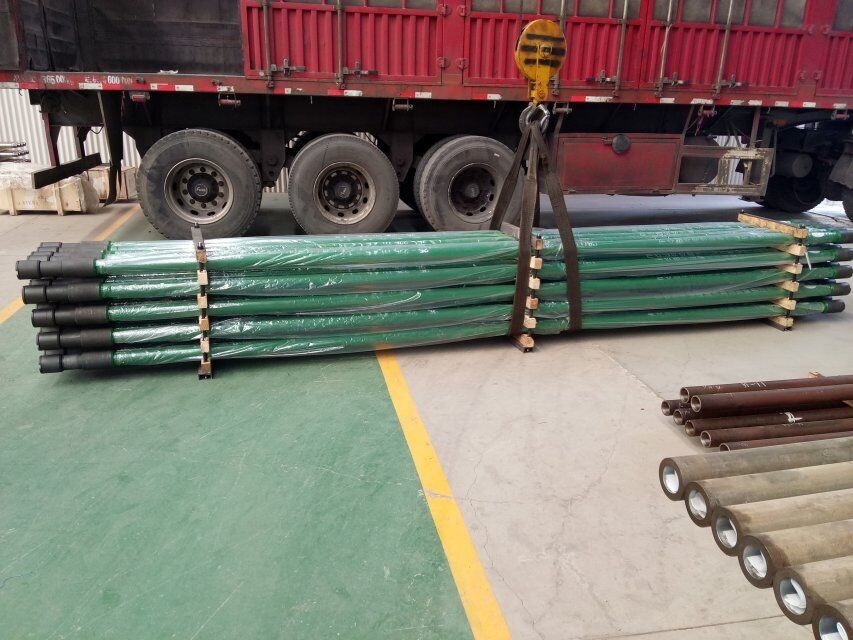

Delivery photo:



Carbon Steel Structure Rod Insert Pump Chrome Plated Sucker Rod 0
