Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: Sucker rod pump
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Product Size: |
25-175 |
Pump Model: |
RHAM |
Barrel Type: |
Heavy Wall |
Seating: |
Mechanical Seating |
Barrel Coating: |
Chrome Plated Or Nickel Carbide |
Plunger Coating 1: |
Spray Metal |
Plunger Coating 2: |
Chrome Plating Or Double Chrome Plating |
Valve Ball And Seat 1: |
Stainless Steel |
Valve Ball And Seat 2: |
Tungsten Carbide |
Product Size: |
25-175 |
Pump Model: |
RHAM |
Barrel Type: |
Heavy Wall |
Seating: |
Mechanical Seating |
Barrel Coating: |
Chrome Plated Or Nickel Carbide |
Plunger Coating 1: |
Spray Metal |
Plunger Coating 2: |
Chrome Plating Or Double Chrome Plating |
Valve Ball And Seat 1: |
Stainless Steel |
Valve Ball And Seat 2: |
Tungsten Carbide |
25-175 RHAM Heavy Wall Rod Insert Pumps For Oilfield
RHAM heavy wall rod insert pumps description:
Sucker rod pump is equipped with a seating nipple(there are two seating nipples in API-RHBM-AC) , seating nipple connection on the tubing string, down to the bottom of the well with the tubing string.
API Specification:
Type of barrel: chrome plated or carbonitrided surface
Type of plunger: metal spray or chrome plated surface
Valve ball and seat materials: stainless steel and tungsten carbide
Pump designation:
1) RHAM: Stationary Heavy Wall Barrel, Top Anchor, Mechanic Seating, Rod Pump
2) RHBM: Stationary Heavy Wall Barrel, Bottom Anchor, Mechanic Seating, Rod Pump
3) RHAC: Stationary Heavy Wall Barrel, Top Anchor, Cup Seating, Rod Pump
4) RHBC: Stationary Heavy Wall Barrel, Bottom Anchor, Cup Seating, Rod Pump
5) RHT: Traveling Heavy Wall Barrel, Bottom Anchor, Rod Pump
6) RWA: Stationary Thin Wall Barrel, Top Anchor, Rod Pump
7) RWB: Stationary Thin Wall Barrel, Bottom Anchor, Rod Pump
8) RWT: Traveling Thin Wall Barrel, Bottom Anchor, Rod Pump
9) RSA: Stationary Thin Wall Barrel, Top Anchor, Soft-packed Plunger, Rod Pump
10) RSB: Stationary Thin Wall Barrel, Bottom Anchor, Soft-packed Plunger, Rod Pump
11) THM: Heavy Wall Barrel, Mechanic Seating, Tubing Pump
12) THC: Heavy Wall Barrel, Cup Seating, Tubing Pump
RHAC API parameter table:
| RHAC model | Pump OD (in) | Barrel length (ft) | Plunger length (ft) | Stroke length (ft) | Extension length (ft) | Tubing OD EUE(in) | Sucker rod |
| 20-125RHAC | Ø31.75 | 2.1-10.4 | 0.3-8.0 | 1.2-9.0 | 0.3-0.9 | 2-3/8” |
CYJ16 CYJ19 |
| 25-150RHAC | Ø38.10 | 2-7/8” | |||||
| 25-175RHAC | Ø44.45 | 2-7/8” | |||||
| 30-225RHAC | Ø57.15 | 3-1/2” |
RH model pump features:
1. divided into cup seating and mechanical seating
2. All are heavy wall rod pump
3. Inserted configurations

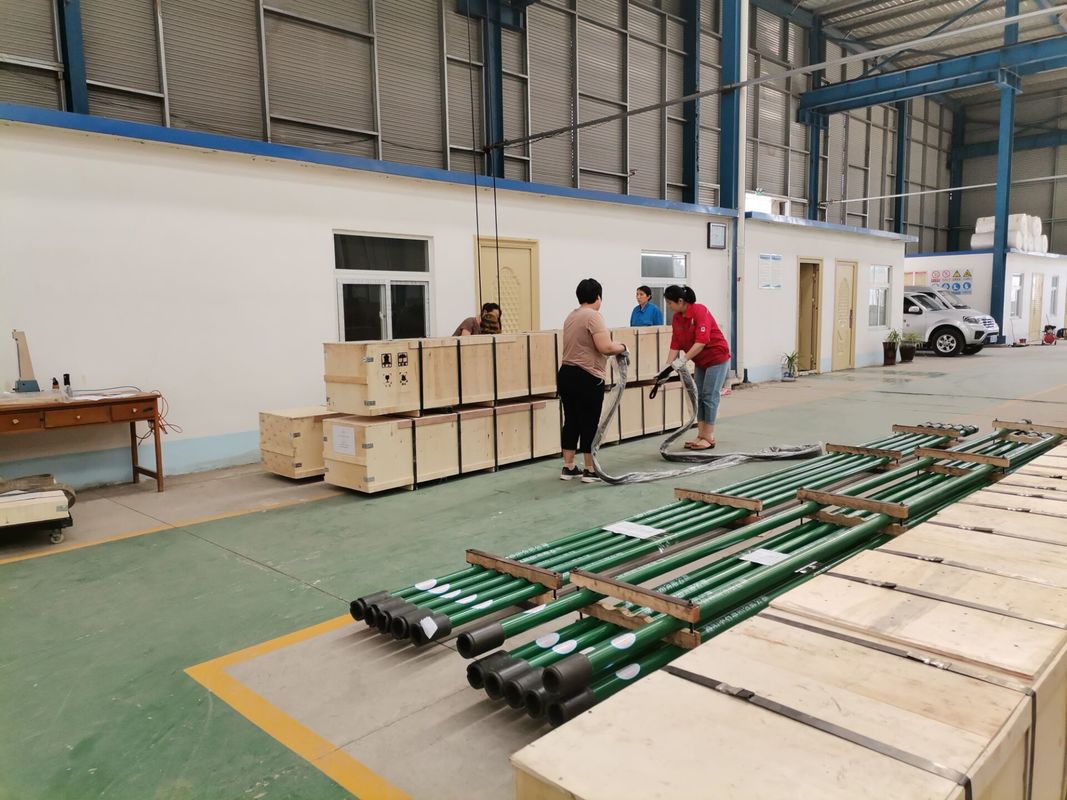

Delivery photo for RHAM rod insert pump:
