Chrome Plated Insert Pump Oil Field Stationary Barrel

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API

Model Number: 20/25-106THC

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 10~15 workdays

Payment Terms: T/T, D/P, D/A, L/C, Western Union

Supply Ability: 3000 sets/year

Get Best Price
High Light:

Chrome Plated Insert Pump Oil Field

,

Stationary Barrel Insert Pump Oil Field

,

Stationary Barrel Rod Insert Pump

Pump Type:
Sucker Rod Pump
Another Name:
Rod Insert Pump
Barrel Structure:
Stationary Barrel
Feature:
Simple Operation
Plunger Coating:
Spray Metal
Plunger Material:
Carbon Steel In Usual
Small Parts:
Low Alloy Steel
Application:
Petroleum Machinery
Warranty:
12 Months
Pump Type:
Sucker Rod Pump
Another Name:
Rod Insert Pump
Barrel Structure:
Stationary Barrel
Feature:
Simple Operation
Plunger Coating:
Spray Metal
Plunger Material:
Carbon Steel In Usual
Small Parts:
Low Alloy Steel
Application:
Petroleum Machinery
Warranty:
12 Months
Chrome Plated Insert Pump Oil Field Stationary Barrel

Chrome Plated Stationary Barrel Rod Insert Pump



Chrome Plated stationary barrel rod insert pump description:



Rod pumps also are called insert pumps because they are run (inserted) in the production tubing.

There is a wide range of plunger (or pump-bore) sizes standardized by the industry. The API pump-bore sizes that are currently available range from 1 1/16 to 3 3/4 in. in diameter. This 1 1/16-in. size has been added back in the latest edition of the standard. Additionally, a new barrel type has been accepted in the latest API Spec. 11AX. This is the "X-type" barrel. It has a thin-walled barrel configuration for threads on either end of the heavy-walled barrel and is available for metal plungers only. This type of pump does not require the extension couplings normally needed for heavy-walled barrel pumps. Thus, this pump reduces the burst or collapse concerns of the thin-walled extension couplings and allows deeper producing depths to be attained.

Our sucker rod pumps can be furnished with the components most suitable for your field of application and pumping operations can easily be extended to corrosive environments.
To achieve maximum performance,API subsurface pumps are machined with extra small clearance between the plunger and the inside wall of the barrel.


Rod inserted pump API parameters table:

API Model Thin wall rod pump Thick wall rod pump
Pump diameter (in) 1 1/4-2 1/2 1 1/4-2 1/2
Plunger length (ft) 2-24
Barrel length (ft) 2-34
Material

Barrel: A1~A6, B1~B6, C1~C5, D1~D5, N1~N6

Plunger: B1~B3, C1~C3, D1~D3, E1~E3, F1~F3

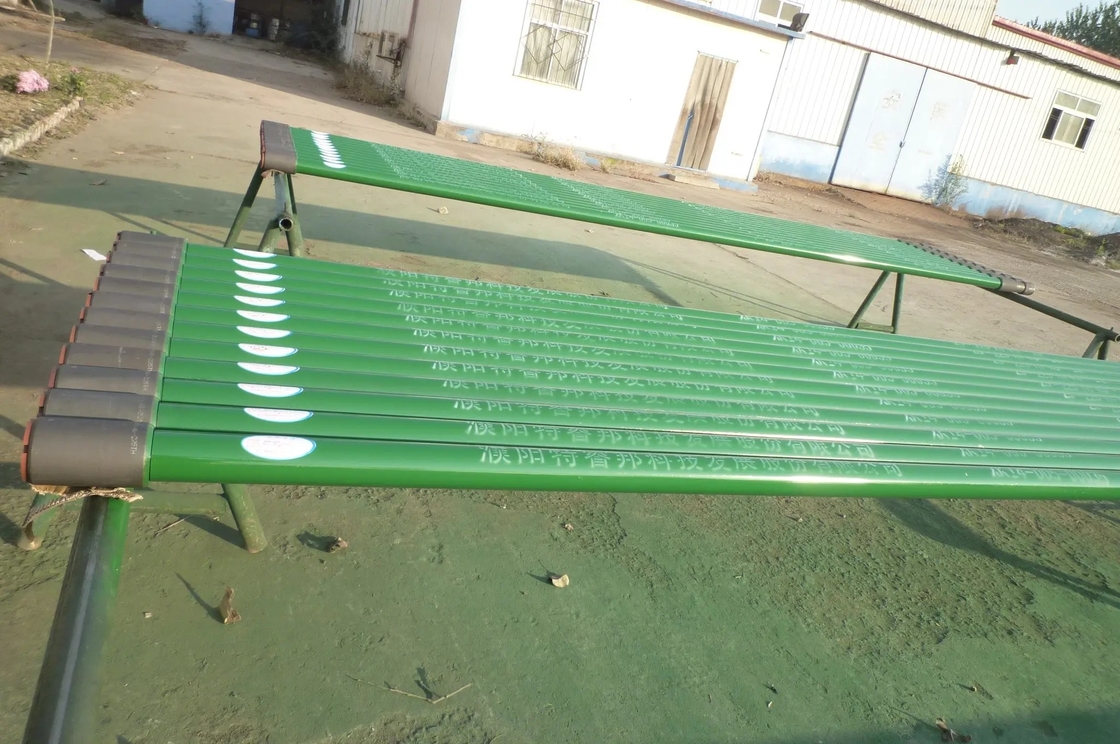

Sucker Rod Pump Pictures


Chrome Plated Insert Pump Oil Field Stationary Barrel 0
