Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API 5CT
Model Number: 1.05"-4 1/2"
Payment & Shipping Terms
Minimum Order Quantity: One metric ton
Price: Negotiable
Packaging Details: Be bundled by steel strap
Payment Terms: T/T, L/C
Name: |
Seamless Casing Tube |
Special Pipe: |
API Oil Pipe |
Steel Grade: |
J55, K55, L80, N80, P110, P110-13Cr |
Structure: |
Seamless |
Technique: |
Hot-rolled |
Application: |
Conveying Gas Water |
Name: |
Seamless Casing Tube |
Special Pipe: |
API Oil Pipe |
Steel Grade: |
J55, K55, L80, N80, P110, P110-13Cr |
Structure: |
Seamless |
Technique: |
Hot-rolled |
Application: |
Conveying Gas Water |

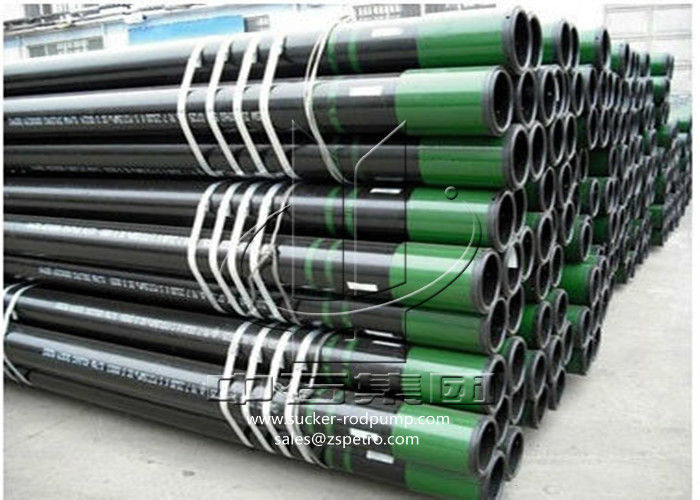

API 5CT ISO 11960 Seamless Casing Tube Conveying Gas Water
Seamless Casing Tube Application
Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe, OIL PIPE, Chemical Fertilizer Pipe, Structure Pipe, Other
Seamless Casing Tube Features:
1. Alloy steel seamless pipe
2. Size OD 4 1/2”-20”
Technical specification:
Product | Materials | Standards | Spec (mm) | Appilcation of oil casing pipes |
Oil Casing Pipe | J55, K55,N80, L80 | API 5CT | 114.3-508.00*5.21-16.13 | Tube for conveying gas, water, and oil and natural gas industries etc. |
C90, T95,P110 | ISO 11960 |
Mechanical properties:
Grade | Yield Strength | Tensile Strenght | Hardness | Allowable | |||||
Min | Max | Min | Max | Max | Hardness | ||||
Psi | Mpa | Psi | Mpa | Psi | Mpa | HRC | BHN | Variation | |
J55 | 55,000 | 379 | 80,000 | 552 | 75,000 | 517 | - | - | - |
K55 | 55,000 | 379 | 88,000 | 552 | 95,000 | 655 | - | - | - |
N80 | 80,000 | 552 | 110,000 | 758 | 100,000 | 689 | - | - | - |
N80-1 | 80,000 | 552 | 95,000 | 655 | 95,000 | 655 | 23 | 241 | - |
C90 | 90,000 | 621 | 105,000 | 724 | 100,000 | 689 | 25.4 | 255 | 3 |
C95 | 95,000 | 655 | 110,000 | 758 | 105,000 | 724 | - | - | - |
T95 | 95,000 | 655 | 110,000 | 758 | 105,000 | 724 | 25.4 | 255 | 3 |
P110 | 110,000 | 758 | 140,000 | 965 | 125,000 | 862 | - | - | - |
