Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API 5CT, ISO, QHSE
Model Number: 4 1/2"-20"
Payment & Shipping Terms
Minimum Order Quantity: 1 metric ton
Price: Negotiable
Packaging Details: Be bundled by steel strap
Payment Terms: T/T, L/C
Usage: |
Oil Drilling |
Structure: |
Seamless Pipe |
Steel Grade: |
J55, K55, L80, N80, P110 |
Section Of Shape: |
Round |
Technique: |
Hot Rolled |
Name: |
Seamless Casing Pipe |
Length: |
R2 |
Usage: |
Oil Drilling |
Structure: |
Seamless Pipe |
Steel Grade: |
J55, K55, L80, N80, P110 |
Section Of Shape: |
Round |
Technique: |
Hot Rolled |
Name: |
Seamless Casing Pipe |
Length: |
R2 |

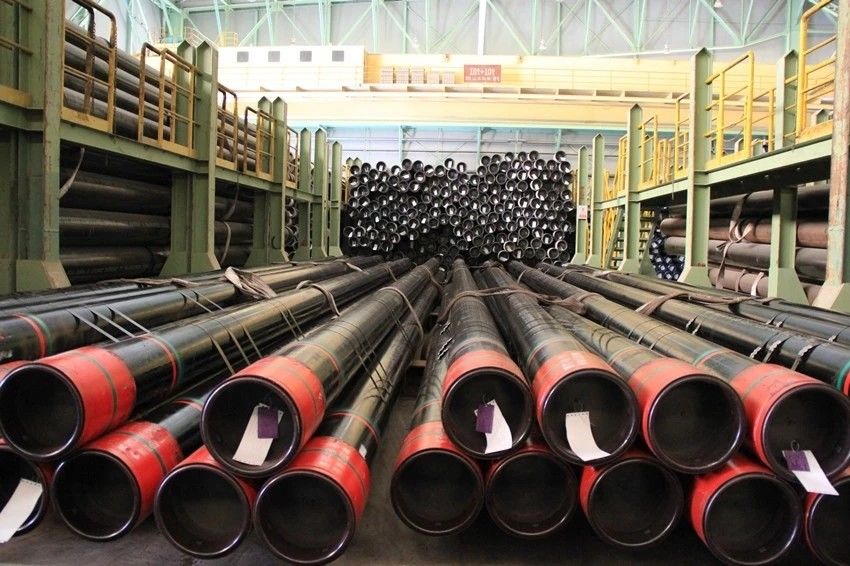

Hot Rolled J55 K55 Seamless Casing Pipe In Oil Drilling
Seamless Casing Pipe is used for extracting oil or gas from wells,while casing for sidewall.
Features:
1. Length range R3
2. API 5CT seamless pipe
Technical Specification:
Standard | API 5CT/ ISO11960 | |
Grade | Group.1 |
H40/PSL.1, J55/PSL.1, J55/PSL.2, J55/PSL.3, K55/PSL.1, K55/PSL.2, K55/PSL.3, N80(1)/PSL.1, N80(1)/PSL.2, N80(Q)/PSL.1, N80(Q)/PSL.2, N80(Q)/PSL.3 |
Group.2 | M65/PSL.1, M65/PSL.3, L80/PSL.2, L80(1)/PSL.1, L80(1)/PSL.3, L80(9Cr)/PSL.1, L80(13Cr)/PSL.1, C90/PSL.1, C90/PSL.2, C90/PSL.3, T95/PSL.1, T95/PSL.2T95/PSL.3 | |
Group.3 | P110/PSL.1, P110/PSL.2, P110/PSL.3, | |
Group.4 | Q125/PSL.1, Q125/PSL.2, Q125/PSL.3, | |
Minimum Order Quantity | Negotiable | |
Outside Diameter | Casing | 4 1/2 inch to 20 inch or 114.3mm to 508mm |
Wall Thickness | According to API 5CT Standard | |
Length | Casing | R1 (4.88m to 7.62m), R2 (7.62m to 10.36m), R3 (10.36m to 14.63m) |
Processing type | Seamless | |
Type of End-Finish | Casing | P, S, B, L |
Mechanical Properties:
Standard | Steel grade | Tensil Strength(Mpa) | Yeild Strength(Mpa) | Elongation(%) |
API 5CT | J55 | ≥517 | 379~552 | 0.5% |
API 5CT | K55 | ≥655 | 379~552 | 0.5% |
API 5CT | N80 | ≥689 | 552~758 | 0.5% |
API 5CT | L80 | ≥655 | 552~655 | 0.5% |
API 5CT | P110 | ≥862 | 758~965 | 0.6% |
Packaging & Delivery
Packaging Details: Casing Pipe in bundles
Port:Xingang Port/Shanghai Port
