Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: API 11B
Model Number: 1", 1-1/8", 1-1/4", 1-1/2", and 1-3/4"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Metal or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Application: |
Oilfield Cementing |
Brand: |
OEM |
Connection Type: |
NUE/EUE/Premium |
MOQ: |
1 Piece |
Material: |
Carbon Steel/Stainless Steel/Alloy Steel |
Packaging: |
Wooden Box, Carton, Pallet |
Pressure Rating: |
High Pressure |
Product Name: |
Oilfield Cementing Tools |
Size: |
Customized |
Standard: |
API, ANSI, DIN, JIS |
Surface Treatment: |
Polishing, Sand Blasting, Painting |
Temperature Rating: |
High Temperature |
Application: |
Oilfield Cementing |
Brand: |
OEM |
Connection Type: |
NUE/EUE/Premium |
MOQ: |
1 Piece |
Material: |
Carbon Steel/Stainless Steel/Alloy Steel |
Packaging: |
Wooden Box, Carton, Pallet |
Pressure Rating: |
High Pressure |
Product Name: |
Oilfield Cementing Tools |
Size: |
Customized |
Standard: |
API, ANSI, DIN, JIS |
Surface Treatment: |
Polishing, Sand Blasting, Painting |
Temperature Rating: |
High Temperature |

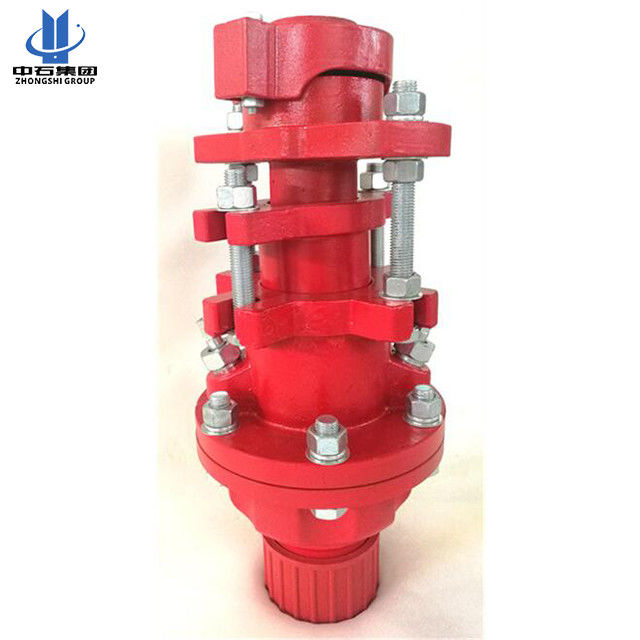

Stuffing Box Detail information
The stuffing box is a crucial device utilized in wellheads to achieve dynamic sealing, effectively sealing the annular space between the tubing pipe and the polished rod.
Specifically designed for pumping units, the Double Packed Stuffing Box (DPSB) boasts several noteworthy characteristics:
1. It incorporates a unique misaligning feature that minimizes the need for precise alignment with the pumping unit, thereby simplifying installation.
2. The primary packing can be easily replaced under pressure by tightening the compression bolts, ensuring efficient maintenance without interrupting operations.
3. Equipped with cone packing, the DPSB enhances the sealing capacity, providing a reliable and secure seal that minimizes the risk of leaks.
4. The Lub Upper Gland (LUG) is fitted with a grease zerk, enabling easy lubrication of the polished rod to optimize performance and prolong its lifespan.
5. Optional components, such as the Oil Reservoir Gland (ORG) and Anti-Pollution Adapter (APA), are available to cater to specific requirements and enhance functionality.
6. The LUG is designed with two heavy hex nuts on each bolt, enabling it to support a significant load of up to 20,000 lbs. during well servicing, ensuring stability and safety.
7. A flanged bottom connection can be accommodated upon special order, allowing for customized installation based on specific needs.
8. Widely recognized as an industry-standard, the DPSB is renowned for its wide usage, cementing its position as one of the most commonly employed stuffing boxes in the field. Its reliability and versatility make it a popular choice among professionals in the industry.
Features of stuffing box for polished rod:
| Working Pressure | ≤1500psi |
| Bottom Thread | 1.3/4”, 2”, 2.1/2”, 3”, 3.1/2”, 4” |
| Bottom Connection | Box or Pin, API Tubing or Line Pipe thread. |
| Material | AISI1045/4130 casting steel or ductile iron |
| Split Cone Packing (rod sizes) |
1”, 1.1/8”, 1.1/4”, 1.1/2” and 1.3/4”. |
Stuffing Box Detail information
| Type | Stuffing box |
| Machine Type | Petroleum Machinery |
| Certification | API |
| Material | Alloy steel |
| Processing Type | Turning |
| Use | Oil production |
| Working temperature | < 200°C |
| Sealing property | Good |
| Coating | Anti-corrosion |
| Sealing type | Multisage seal |
