Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Material: |
Thermal Plastic |
Color: |
Black Or White |
Size: |
4 1/2"~36" |
Feature: |
High-temperature Resistance |
Blade: |
4~12 |
Manufacture: |
Hot-melt |
Material: |
Thermal Plastic |
Color: |
Black Or White |
Size: |
4 1/2"~36" |
Feature: |
High-temperature Resistance |
Blade: |
4~12 |
Manufacture: |
Hot-melt |

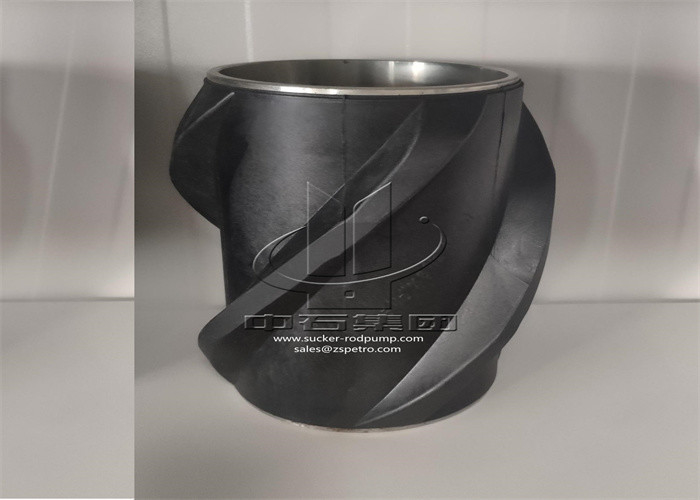

Puyang zhongshi Bow Spring Multilayer Composite Centralisers Thermal Plastic Spiral Vane Centralizer
Applications
• Vertical, deviated, and horizontal wells.
• Extended-reach wells and wells with high dogleg severity.
• Wells with temperatures up to 175°C.
Description
The composite centralizer is used during running and cementing operations to centralize casing. Made of advanced composite, with low coefficient of friction, heat resistant, and highly durable. Performs reliably even in extreme wellbore conditions,this centralizer withstands high-impact loading and is highly wear resistant.
It has a smooth, tapered construction to easily pass obstructions in the wellbore, suited for horizontal applications. Enables casing strings to reach total depth efficiently, provides optimal standoff for mud displacement, and greatly enhances cementing operations. Available in straight and spiralblade configurations
Specification | Style | Max OD (mm) | ID (mm) | Length (mm) |
4 1/2 x 6 | I, II, III | 145 | 116.5 | 200 |
5 x 6 | I, II, III | 145 | 129 | 200 |
5 1/2 x 8 1/2 | I, II, III | 205-210 | 142 | 200/300 |
6 5/8 x 8 1/2 | I, II, III | 205/210 | 171 | 200/300 |
7 x 8 1/2 | I, II, III | 205/210 | 181 | 200/300 |
7 x 9 1/2 | I, II, III | 225-235 | 181 | 200/300 |
7 x 9 5/8 | I, II, III | 225-235 | 181 | 200/300 |
9 5/8 x 12 1/4 | I, II, III | 300-305 | 248 | 200 |
13 3/8 x 17 1/2 | I, II, III | 430-435 | 346 | 200 |
