Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: TH(B)M
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Machine Type: |
Petroleum Machinery |
Application: |
Petroleum Production |
Color: |
Required |
Type: |
Tubing Pump |
Material: |
Metal |
Certificate: |
API 11 Ax |
Machine Type: |
Petroleum Machinery |
Application: |
Petroleum Production |
Color: |
Required |
Type: |
Tubing Pump |
Material: |
Metal |
Certificate: |
API 11 Ax |
THD Type Plunger Oil Pump For Petroleum Equipment With High Pumping Efficiency
Product description

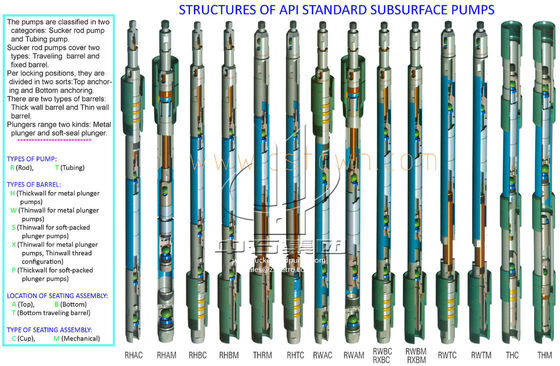

The THD type of tubing pump means that its standing valve is directly connected to the barrel and it cannot be pulled up separately with the barrel. The THC or THM type of tubing pump means that its standing valve can be pulled up separately with the barrel. The seating assembly of THC pump is cup type and for THM is mechanical type. The THC and THM type of tubing pump are suitable for the frequently work-over wells.
Technical parameter list
Specification |
Nominal Bore mm(in) |
Plunger Length m(ft) |
Max. O.D. mm |
Rod in |
Tubing in | Pump Constant m3/d | Stroke m |
|
| 20-125 TH | 32 (1.25) | 1.2-1.8(4-6) | 73 | 3/4 | 2-3/8 | 1.14 | ≤8.0 | |
| 25-125 TH | 32 (1.25) | 88.9 | 3/4 | 2-7/8 | 1.14 | |||
| 20-150 TH | 38 (1.50) | 73 | 3/4 (5/8) | 2-3/8 | 1.64 | |||
| 25-150 TH | 38 (1.50) | 88.9 | 3/4 (5/8) | 2-7/8 | 1.64 | |||
| 20-175 TH | 44 (1.75) | 73 | 3/4 | 2-3/8 | 2.24 | |||
| 25-175 TH | 44 (1.75) | 88.9 | 3/4 | 2 7/8 | 2.24 | |||
| 25-200 TH | 51 (2.00) | 88.9 | 3/4 | 2-7/8 | 2.91 | |||
| 25-225 TH | 57 (2.25) | 88.9 | 3/4 | 2-7/8 | 3.69 | |||
| 25-250 TH | 64 (2.50) | 88.9 | 3/4 | 3-1/2 | 4.55 | |||
| 30-275 TH | 70 (2.75) | 108 | 7/8 | 3-1/2 | 5.50 | |||
| 35-325 TH | 83 (3.25) | 116 | 7/8 | 4 | 7.70 | |||
| 40-375 TH | 95 (3.75) | 116 | 1 | 4-1/2 | 10.26 | |||
| 35-425 TH | 108 (4.25) | 147 | 1-1/8 | 4 | 13.18 | |||
