Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: TH(B)M
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Machine Type: |
Petroleum Machinery |
Application: |
Petroleum Production |
Color: |
Required |
Type: |
Tubing Pump |
Certificate: |
API 11 Ax |
Delivery Time:: |
Depends On Quantity |
Machine Type: |
Petroleum Machinery |
Application: |
Petroleum Production |
Color: |
Required |
Type: |
Tubing Pump |
Certificate: |
API 11 Ax |
Delivery Time:: |
Depends On Quantity |

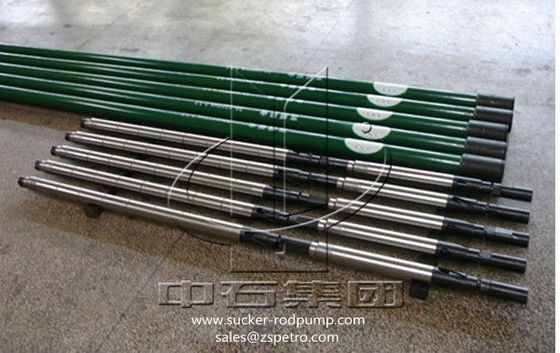

High Precision Well Pump Tubing With Plunger Length 600-1200mm Smooth Surface
Product description
The downhole sequence of the tubular pump THC tubular pump: the tubular pump is divided into two parts, the pump assembly and the plunger assembly. C34 is the tubing coupling. The pump assembly is connected to the bottom of the tubing string through C34, along with the tubing string. Go down into the well together. The plunger assembly is attached to the sucker rod column through the C11 upper travel valve cover and is lowered into the well.
Technical parameter list
| Pump designation | Pump Bore(in) | Length of Plunger (mm) | Pump Constant (m3/d) | Size of matched tubing (in) | Size of connecting Sucker Rod(mm) | Length of extension Coupling |
| 25-125 | 1.25 | 600-1200 | 1.14 | 2-1/2 2-7/8 | 16 | 300-900 |
| 25-150 | 1.5 | 1.642 | 2-1/2 2-7/8 | 16 | ||
| 25-175 | 1.75 | 2.235 | 2-1/2 2-7/8 | 16 | ||
| 20-175 | ||||||
| 25-225 | 2.25 | 3.694 | 2-7/8 | 19 | ||
| 25-275 | 2.75 | 5.518 | 2-7/8 | 22 | ||
| 30-275 | 2.75 | 5.518 | 3-1/2 | 22 | ||
| 30-325 | 3.25 | 7.707 | 3-1/2 | 22 | ||
| 30-375 | 3.75 | 10.261 | 3-1/2 | 25 | ||
| 40-375 | 3.75 | 10.261 | 4 | 25 |
Pictures
