Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: TH(B)M
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Machine Type: |
Petroleum Machinery |
Application: |
Petroleum Production |
Color: |
Required |
Type: |
Tubing Pump |
Certificate: |
API 11 Ax |
Delivery Time:: |
Depends On Quantity |
Machine Type: |
Petroleum Machinery |
Application: |
Petroleum Production |
Color: |
Required |
Type: |
Tubing Pump |
Certificate: |
API 11 Ax |
Delivery Time:: |
Depends On Quantity |
Petroleum Production Well Pump Tubing , Downhole Tubing Pump With Energy Saving
Product description
Tubing Pump is also called pipe type pump,the feature is that assemble the outer cylinder liner,the bush and the suction valve well on the ground,and connect at the bottom of the oil,into the wells,then use the sucker rod pump through tubing to put the piston is provided with a discharge valve into the pump.
Technical parameter list
| Type | Major technical data | |||||
| Diameter(mm) | Barrel Length (m) | Stroke Range (m) | Length of Extension Pub Joint(m) | Thread for Tubing(in) | Connecting sucker rod | |
| Rod pumps | 31.8 |
2.1 3.0 3.3 3.6 3.9 4.2 4.5 4.8 5.7 6.0 6.6 7.3 9.1 |
1.5-6 | 0.3 0.6 0.9 |
2 3/8 | CYG16 |
| 38.1 | 2 7/8 | CYG19 | ||||
| 44.45 | 2 7/8 | CYG19 | ||||
| Tubing pump |
31.8 | 1.5-7.8 |
0.3 0.6 0.9 |
2 3/8 | CYG16 | |
| 38.1 | 2 7/8 | CYG16 | ||||
| 44.45 | 2 7/8 | CYG16 | ||||
| 57.15 | 2 7/8 | CYG19 | ||||
| 69.85 | 2 7/8 3 1/2 | CYG22 | ||||
| 82.55 | 3 1/2 | CYG25 | ||||
| 95.25 | 3 1/2 | CYG25 | ||||

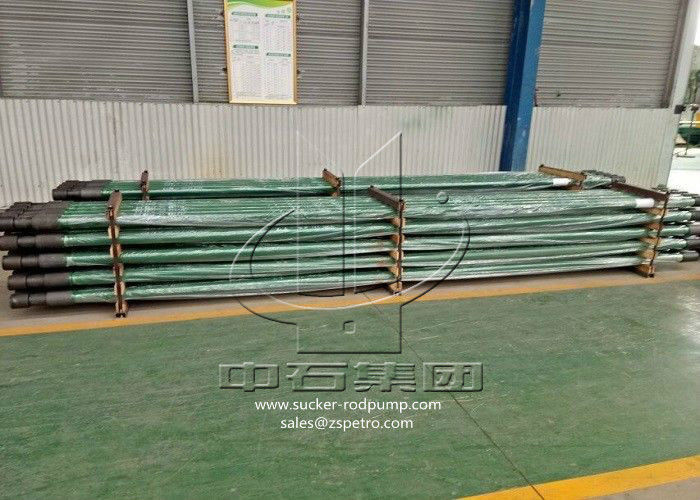

Pictures
