High Strength Well Pump Tubing With Metal Spray Plunger Alloy Steel Raw Material

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API, ISO, QHSE

Model Number: TH(B)M

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 10~15 workdays

Payment Terms: L/C, D/P, T/T, Western Union, D/A

Supply Ability: 1000 SETS/MONTH

Get Best Price
High Light:

oil field pump

,

plunger oil pump

Application:
Petroleum Production
Color:
Required
Type:
Tubing Pump
Certificate:
API 11 Ax
Delivery Time::
Depends On Quantity
Material:
Chromium Molybdenum Alloy Steel
Application:
Petroleum Production
Color:
Required
Type:
Tubing Pump
Certificate:
API 11 Ax
Delivery Time::
Depends On Quantity
Material:
Chromium Molybdenum Alloy Steel
High Strength Well Pump Tubing With Metal Spray Plunger Alloy Steel Raw Material

High Strength Well Pump Tubing With Metal Spray Plunger Alloy Steel Raw Material



Product description



The pump barrel assembly (including the pump barrel and extension adapters) is screwed directly on the bottom end of the tubing. The pump has the following advantages:
A larger tubing pump can be used for the tubing with the same size, making it suitable for the well with large production capacity.
The sturdy pump structure and larger flow passage allow thick crude oil.
Due to the limit of the sucker rod strength and elasticity, it is usually applicable to large displacement shallow wells and deep wells but not in gassy wells and ultra deep wells.



TH Tubing Pump Parts List



API symbol Description QTY
B13 Barrel, Heavy wall 1
C11 Cage, Top open 1
C13 Cage, Closed plunger 1
C16 Cage, Standing 1
C34 Coupling, Tubing 2
C35 Coupling, Barrel 2
N13 Nipple, Seating, Cup type 1
N21 Nipple, Extension, Upper 1
N22 Nipple, Extension, Lower 1
P21 Plunger, One piece 1
P31 Puller, Standing valve 1
S13 Seating cup ring 2
S14 Seating cup nut 1
S16 Seating cup coupling 1
S17 Seating mandrel, Cup 1
S18 Seating cup 3
V11 Traveling and standing valve 3



Pictures

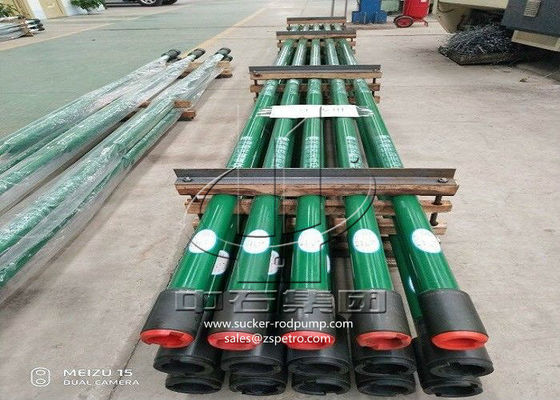

High Strength Well Pump Tubing With Metal Spray Plunger Alloy Steel Raw Material 0

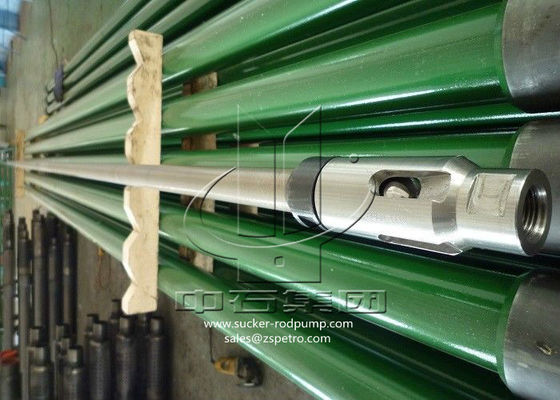

High Strength Well Pump Tubing With Metal Spray Plunger Alloy Steel Raw Material 1
