Product Details:
Payment & Shipping Terms:
|
Material: | 13CrMo44, 13CrMo45 | Steel Grade: | L80 P110 |
---|---|---|---|
Processing: | Hot Rolled | Alloy Or Not: | Alloy Steel |
Structure: | Seamless | Type: | Oil Pipe |
High Light: | seamless steel casing pipes,seamless drill pipe |

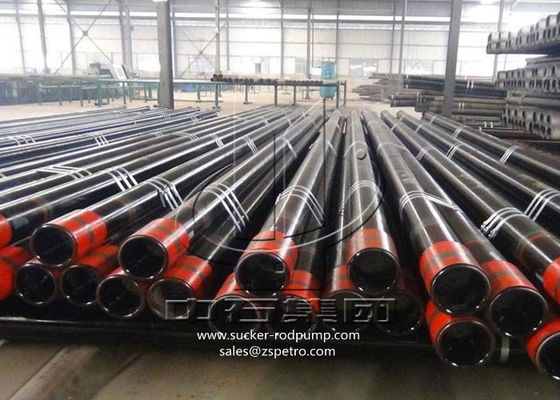

13Cr Alloy Steel Seamless Casing Pipe L80 and P110 For Offshore Oil Drilling
13Cr casing pipe description:
1. 13Cr alloy steel oil casing pipe can be applied to oil and gas well production that contain carbon
dioxide and chlorine ion acidic medium.
2. This kind of pipe not only has a higher strength and excellent corrosion resistant properties, but also
has good low temperature toughness.
Features:
1. CO2 resistant oil pipe
2. Seawater corrosion resistant oil pipe
Technical specification:
Casing OD | 4 1/2" - 20" |
W.T. | 5.21-22.22 mm |
14.14-197.93 kg/m | |
Nominal weight | 9.5-133.0 Ib/ft |
Technique | Hot rolled |
Steel grade |
L80-13Cr; C95-SP13Cr1; C95-SP13Cr2; P110-SP13Cr1; P110-SP13Cr2 |
Standard | API SPEC 5CT |
Mechanical properties:
Steel Grade | Yield Strength Ksi(Mpa) |
Mild tensile Ksi(Mpa) |
Elongation | hardness (HRC) | |
Min | Max | Min | Max | ||
L80-13cr | 80 (552) | 95 (655) | 95 (655) | API5CT | 23 |
C95-SP13Cr1 C95-SP13Cr2 |
95 (655) | 110 (758) | 110 (724) | 30 | |
p110-Sp13Cr1 p110-Sp13Cr2 |
110 (758) | 140 (965) | 125 (862) | 33 |
