Oilfield Simple Structure Tubing Pump For Petroleum Production

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API, ISO, QHSE

Model Number: TH(B)M

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 10~15 workdays

Payment Terms: L/C, D/P, T/T, Western Union, D/A

Supply Ability: 1000 SETS/MONTH

Get Best Price
High Light:

plunger oil pump

,

deep well pump

Certificate:
API 11 Ax
Color:
Required
Type:
Tubing Pump
Application:
Petroleum Production
Delivery Time::
Depends On Quantity
Material:
Chromium Molybdenum Alloy Steel
Product Name:
Tubing Pump
Certificate:
API 11 Ax
Color:
Required
Type:
Tubing Pump
Application:
Petroleum Production
Delivery Time::
Depends On Quantity
Material:
Chromium Molybdenum Alloy Steel
Product Name:
Tubing Pump
Oilfield Simple Structure Tubing Pump For Petroleum Production

Oilfield Simple Structure Tubing Pump For Petroleum Production



Product description


Tubular pump has simple structure, strong and durable, at the same time, in the same size of tubing can provide maximum displacement, so the tubular pump is generally used in not too deep, need large displacement pump infusion of oil Wells. Mainly include ordinary whole bobbin type pump, anti-corrosive wearing the bobbin type pump.


For tubing pump, the barrel is put in the well to the designed depth with tubing. And then put the plunger into the barrel with sucker rod. Given the tubing size, the bore of the tubing pump is larger than that of the rod pump, so the pump rate is higher. According to seating mode, the rod pump can be divided into three types: THC pump (Stationary Heavy Wall, Cup Seating, Tubing pump), THM pump (Stationary Heavy Wall Mech. Seating, Tubing Pump) and THD pump.


Technical Specifications



Type Thread for Tubing(in) Stroke Range (m) Length of Extension Pub Joint(m) Diameter(mm)
Rod pumps 2 3/8 1.5-6 0.3
0.6
0.9
31.8
  2 7/8     38.1
  2 7/8     44.45
Tubing
pump
2 3/8 1.5-7.8 0.3
0.6
0.9
38.1
  2 7/8     44.45
  2 7/8     57.15
  2 7/8     69.85
  2 7/8 3 1/2     82.55
  3 1/2     95.25
  3 1/2






Pictures

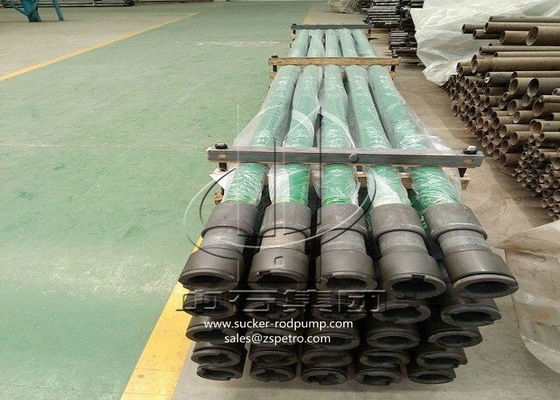

Oilfield  Simple Structure Tubing Pump For Petroleum Production 0



 Oilfield  Simple Structure Tubing Pump For Petroleum Production 1
